Compact Technology
PRM101
thru
PRM107
REVERSE VOLTAGE -
50
to
1000
Volts
FORWARD CURRENT -
1.0
Amperes
Fast Recovery Rectifiers
FEATURES
Fast switching for high efficiency
Diffused junction
Low forward voltage drop
High current capability
The plastic material carries UL recognition 94V-0
B
SMA
SMA
DIM.
A
A
B
C
C
D
E
F
F
E
D
G
H
MIN.
3.99
2.54
1.32
0.15
4.93
0.05
1.98
0.76
MAX.
4.50
2.79
1.47
0.31
5.28
0.127
2.29
1.52
MECHANICAL DATA
Case : JEDEC SMA molded plastic
Polarity : Color band denotes cathode
Weight : 0.062 grams
Mounting position : Any
G
H
All Dimensions in millimeter
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
1
of 2
PRM101 thru PRM107
Compact Technology
PRM101
thru
PRM107

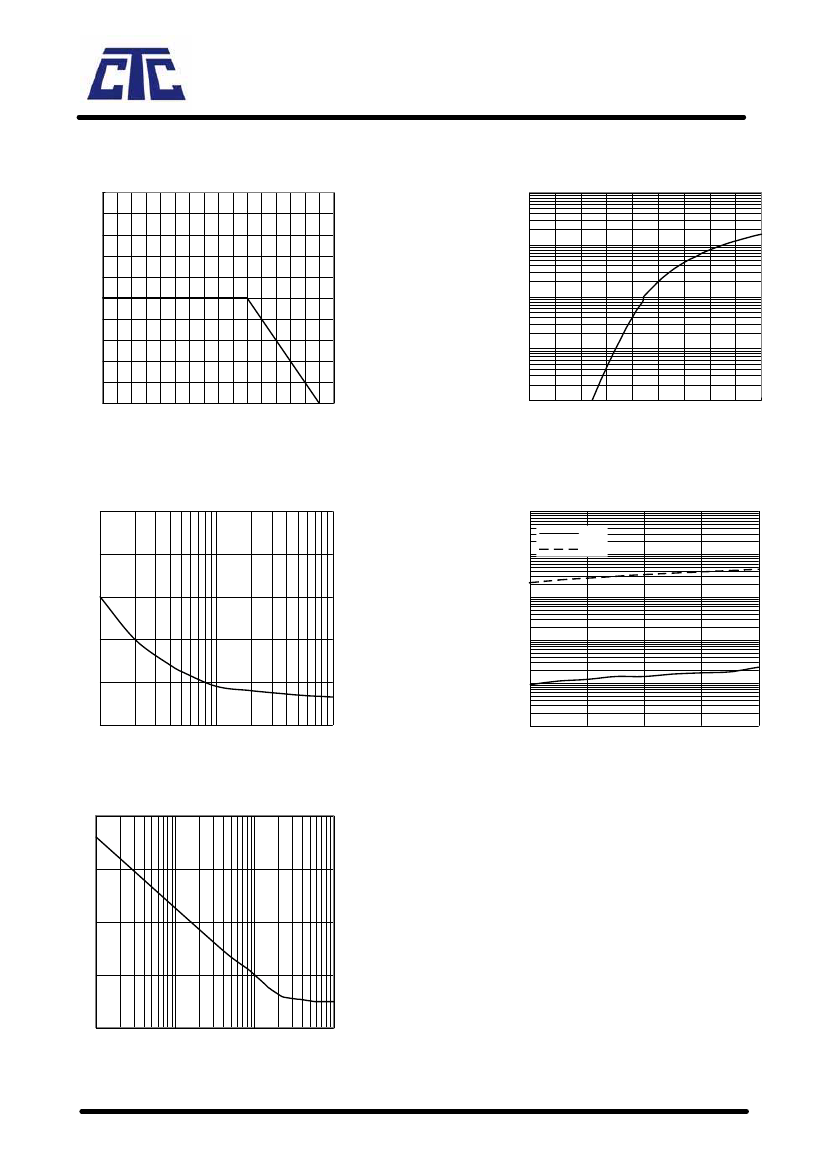

FIG. 2-TYPICAL FORWARD CHARACTERISTICS
100.00
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 1-TYPICAL FORWARD CURRENT DERATING CURVE
2.0
AVERAGE FORWARD CURRENT,(A)
1.6
10.00
1.2
1.00
0.8
0.10
0.4
0.0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE ( )
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
FORWARD VOLTAGE (V)
FIG. 3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT
50
PEAK FORWARD SURGE CURRENT (A)
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
100.000
25
40
REVERSE LEAKAGE CURRENT (uA)
10.000
125
30
1.000
20
0.100
10
0.010
0
1
10
NUMBER OF CYCLES AT 60Hz
100
0.001
20%
40%
60%
80%
100%
PERCENTAGE RATED PEAK REVERSE VOLTAGE (%)
FIG. 5-TYPICAL JUNCTION CAPACITANCE
20
JUNCTION CAPACITANCE (pF)
15
10
5
0
0
1
10
100
REVERSE VOLTAGE (V)
2
of 2
PRM101 thru PRM107
