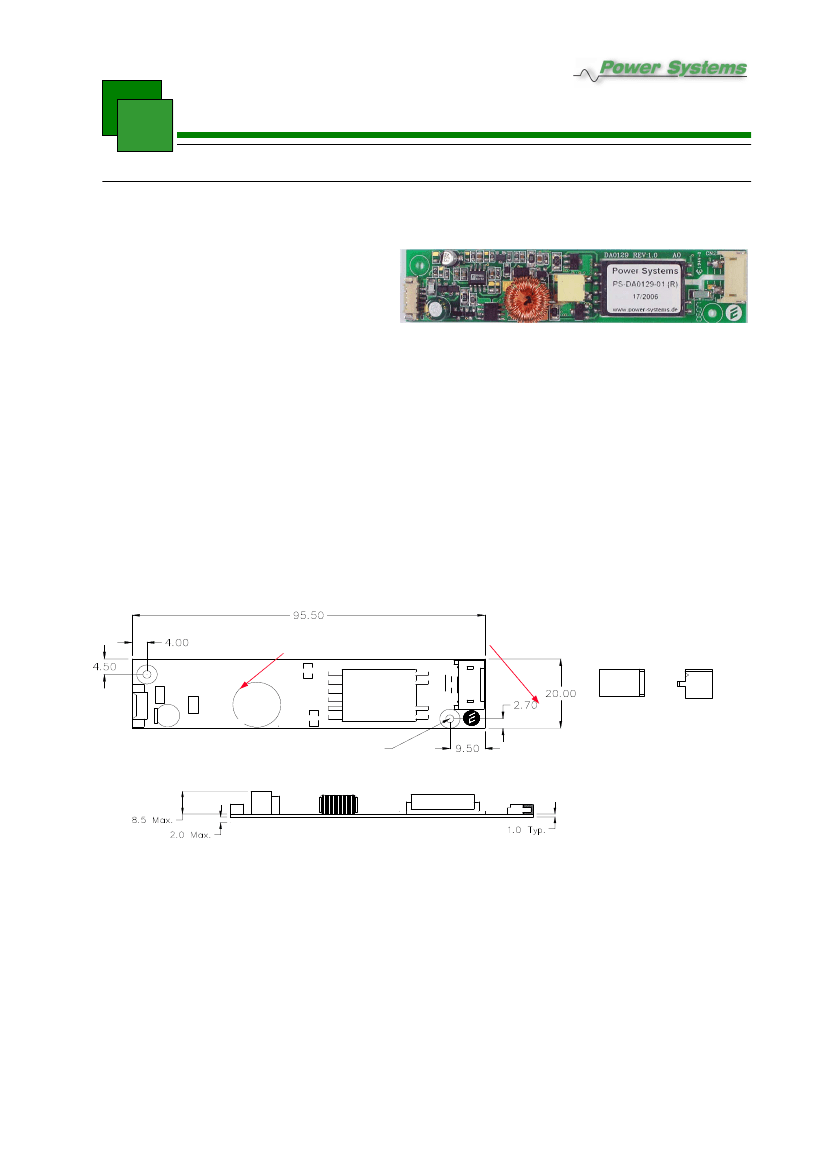

DC-AC INVERTER UNIT

PS-DA0129-01(S)

(5 W SINGLE OUTPUT)

DESCRIPTION :

This DC to AC Inverter was developed for notebook computer and many other low

LCD Backlight power supply as low profile applications, either for Note Book PC or

Industrial.

APPLICABLE LCD:

5 to 15 inches single lamp type

Lamp Voltage 600 Vrms

Lamp Current 6.0 mArms

Lamp Start Up Voltage 1.800 Vrms (Vin : 12 Vdc)

FEATURES :

Current Feedback Circuit

High Efficiency

Low noise with voltage resonant circuit

Regulated output current

High Input voltage range

RoHS compliant (S)

TEMPERATURE & HUMIDITY :

Operating Temperature Range

Storage Temperature Range

Humidity

DIMENSIONS :

LxWxH

(PRELIMINARY INFORMATION)

-10°C ~ +60°C

-30°C ~ +85°C

95 %RH max

95.5 x 20 x 8.5 mm

SM02(8.0)B-BHS-1-TB (JST)

Pin 1

SM02B-BHSS-1-TB (JST)

DA0129 REV:1.0

CN2

CN1

2.2Ø X2

Unit : mm

Weight :20(g) typ.

Note: Please use plastic screw in case of a non-insulating mounting base!

ORDER KEY :

With order of this Inverter please give the following key.

for SM02(8.0)B-BHS-1-TB (JST)

for SM02B-BHSS-1-TB (JST)

for HV-2P-HF-E1400

For example PS-DA0129-01-1

(S)

Power Systems – The Power Solution

Web:

Email:

www.Power-Systems.de

Info@Power-Systems.de

Page (1)

Address: Hauptstr. 48 ; 74360 Ilsfeld-Auenstein / Germany

Tel. :

+ 49 / 70 62 / 67 59 - 6

Fax:

+ 49 / 70 62 / 67 59 - 800

Version 1.1.3, 22th March 2007

All specifications are subject to change without notice.

HV-2P-HF-E1400

DC-AC INVERTER UNIT

BACKLIGHT INVERTER INSTALLATION INSTRUCTION

Precautionary Notes Regarding the Use of This Inverter

When using this product, give due consideration to the precautionary notes described below

and ensure a safe design. Inappropriate use may result in electric shock, injury or fire.

WARNING

• This product is subject to high voltage. Do not touch it while the power is on. Failing to do so may result in electric shock.

CAUTION

• This product is designed for the lighting of a Cold Cathode Fluorescent Lamp. Do not use it with any other load.

• Store this product under the conditions defined in the specification document.

• Do not store this product in an environment where dust, dirt or corrosive gas (salt, acid, base, etc.) is present.

• This product is subject to high voltage. If there is a possibility that the user may touch the product, provide a proper

indication in order to draw the user’s attention.

• This product is designed for use with general electronic equipment. If it is to be used with medical equipment that directly

affects human life or for the control of transportation equipment to which passengers entrust their lives, provide thorough fail-

safe measures.

• Avoid using this product under high temperatures or high humidity or in an environment in which dust, dirt or any corrosive

gas (salt, acid, base, etc.) is present. Also, be careful not to allow the formation of dew condensation. It may result in

damage or electric shock.

• If the product does not have a built-in protective circuit (circuit breaker, fuse, etc.), it is recommended that a fuse be used at

the input stage to prevent the generation of smoke or fire in the event of a malfunction. Even when the product has a built-in

protective circuit (circuit breaker, fuse, etc.), the circuit may not function properly due to inappropriate operating conditions or

power-supply capacity. It is recommended that an appropriate protective circuit (circuit breaker, fuse, etc.) be provided

separately from the built-in circuit.

• Use the product only within the specified input voltage, output power, output voltage and operating temperature ranges.

Exceeding these values may result in damage, etc. Abnormal voltage may result in damage, etc.

• Provide a measure for the preventation of surge voltage due to lighting, etc. Abnormal voltage may result in damage, etc.

• To prevent problems arising form short-circuiting of the high-voltage section, provide appropriate measures to prevent the

entry of foreign substances following installation.

• This product is not designed to provide resistance to radiation.

HANDLING PRECAUTIONS

• This product uses thin wires. Observe the following precautions and handle it with care so as not to cause wire breakage.

Broken wire may result in damage, etc.

Do not stack multiple products on top of one another,

Do not allow the product to come in contact with tools, etc.

• Do not apply excessive stress during installation. It may cause chipping and cracking, resulting in damage, etc

• Provide a clearance of 2 mm or more between the high-voltage section of this product and the frame body on which the

product is installed and also the conductor section (pattern, pad, etc.)

Power Systems – The Power Solution

Web:

Email:

www.Power-Systems.de

Info@Power-Systems.de

Page (1)

Address: Hauptstr. 48 ; 74360 Ilsfeld-Auenstein / Germany

Tel. :

+ 49 / 70 62 / 67 59 - 6

Fax:

+ 49 / 70 62 / 67 59 - 800

Version 2.0, 15th August 2007

All specifications are subject to change without notice.
