PSB-701LF
Socket 775 Intel Core 2
Duo/ Core 2 Quad
PICMG 1.3 CPU Card w/
VGA/Sound/2LAN
R
Features and Benefits:
R
R
Support Intel Core 2 Quad, Core 2
Duo and Celeron processors
Equipped with Intel Q35 Chipset with
R
FSB 1333MHz
Memory Supports DDRII 800 SDRAM up
to 4GB
Supports 2 x 10/100/1000 Mbps
Ethernet Connection, PICMG 1.3
compliance
Supports Intel AMT
Supports Trusted Platform Module
Applications such as ATM, multimedia
systems, digital image storage servers
and more
It's the right choice
No. 24, Lane 365, Yang Guang St., Nei Hu
PROTECH SYSTEMS
District, Taipei 114, Taiwan, R.O.C.
Tel: +886-2-8751-1111
Fax: +886-2-8751-1199
Email: sales@protech.com.tw
http://www.protech.com.tw
Compliant

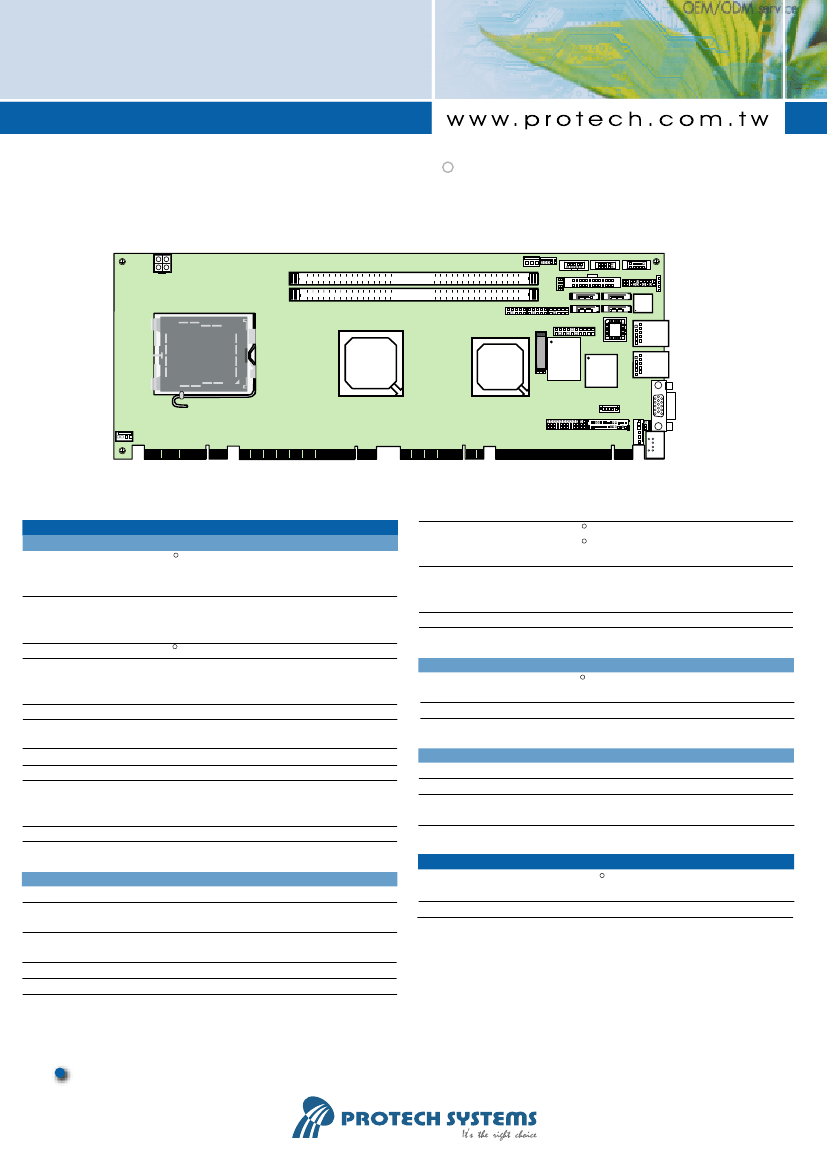

PSB-701LF
2
3
1
4
Socket 775 Intel
R
Core 2 Duo/ Core 2 Quad PICMG 1.3
CPU Card w/ VGA/Sound/2LAN
2
1
SYS_FAN1
10
9
2
6
1
10
5
6
1
10
5
2
1
10
9
1
JP10
ATX_PWR1
DIMM 2
DIMM 1
6
10 6
5
1
10 6
5
1
1
1
7
COM2
LPT1
13
26
COM1
1
14
19
AUDIO1
1
JP4
8
7
SATA1
1
7
SATA3
1
20
JP12
Sound
2
1
CD_IN1
10
5
7
SATA2
1
7
SATA4
1
USB1
USB2
USB3
5
10
2
1
19
BIOS
6
1
JP7
20
LAN1
Battery
REMOVE
Socket 775
Intel
Q35
ICH9DO
JP3
1
I/O
5
10
LAN
6
1
LAN2
INV1
28
29
30
VGA1
6
5
1
3
5
6
1
CPU_FAN1
29
LVDS1
1
2
1
5
10
15
JP1
1
JP2
2
1
1
30
2
JP9
1
6
11
EXKB1
1
DIN1
Specifications
System
CPU Type
Intel
R
LAN
Core 2 Quad/ Core 2 Duo/ Celeron CPU
Audio
LAN 1: Intel
R
82566DM (10/100/1000 Mbps)
LAN 2: Intel
R
82573L (10/100/1000 Mbps)
Support Wake-on-LAN wtih ATX power
High Definition Audio
Realtek ALC262A with 10-pin header for Line-in/
Line-out/MIC
USB
6 x USB 2.0
with LGA775 CPU socket. (support Intel 65nm,
45nm Process Technology CPU)
CPU Frequency
Core 2 Quad: 2.4~2.66GHz
Core 2 Duo: 1.8~3.0GHz
Celeron: 1.6~2.0GHz
Chipset
DRAM
Intel
R
Q35 + ICH9DO (FSB: 800/1066/1333MHz)
2 x 240-Pin DDR2 DIMM, support Dual channel
memory architecture and DDR2 667/800MHz
up to 4GB
Display
Graphic
LCD Interface
Built-in Intel
R
Q35, share system memory
support CRT, LVDS (LVDS transfer from SDVO)
18/24-bit LVDS
BIOS
Watchdog
Power Supply
Power Requirement
Phoenix-Award PnP BIOS, with 32MB SPI flash
1~255 secs Watchdog timer selectable
Clear/Reset/NMI
Support ATX power
+5V, +12V, +3.3V, +5Vsb
5VSB:0.26A (USE INTEL CORE 2 QUAD
Q6700 2.66GHz)
Environment
OperationTemp.
0°~60°C(32°~140°F)
Storage Tmp.
Humidity
-40°~85°C(-40°~185°F)
Operation humidity 20~90%,
Storage humidity 20~95%
Power Consumption
+5V:3.3A, +12V:5.63A, +3.3V:1.64A,
Dimension
338.5 mm x 126 mm (13.33" x 4.96")
Ordering Information
I/O Chipset
SATA Interface
TPM
Serial Port
Keyboard
Mouse
4 x S-ATA II connector (Raid 0,1,10,5)
TPM1.2 1 with 20-pin header on board for TPM
(Trusted Platfom Module)
2 x COM ports, COM1 for RS232, COM2 for
RS232/422/485 (for 16550 compatible type of UART)
Mini DIN connector or external connector
Mini DIN connector or external connector
PSB-701LF
PICMG 1.3 Intel
R
LGA 775 CPU w VGA/
SATA/ Audio/ LAN(1G)/2 x COM (RoHS)
Certificate: CE, FCC CLASS A
All of trademarks and brand names are the property of their owners. Trademark "Protech" is the property of Protech Systems Co., Ltd.
All information contained in this document is subject to change without any prior notice. This catalog is copyrighted in Jan. 2008
