REVISION K
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
GRFX-P-C-XX-XXXX-XXX-X-X-XX
SERIES
GRF1-: GRF 50 OHM CONNECTORS
GRF7-: GRF 75 OHM CONNECTORS
(SEE SHT 2, TABLE 2)
GENDER
-P: PLUG
CABLE
-C: CABLE
No OF POSITIONS
-02,-04, -06, -08
(No OF POS x 5.00[.197]) + 11.60[.457]
Ø"A"
REF
8.89 .350
REF
C
CABLE
LENGTH
-XXXX (IN MILLIMETERS)
0100 MIN (SEE NOTE 4)
PLATING
BLANK: 30µ" GOLD CENTER CONTACT
3µ" GOLD OUTER CONTACT
-GF:10µ" GOLD CENTER CONTACT
3µ" GOLD OUTER CONTACT
100µ" NICKEL REMAING PARTS
(SEE SHT 2, TABLE 3)
SCREW OPTION
-S: CAPTIVE PANEL SCREWS
BLANK: NO SCREWS
END OPTION
-S: SINGLE (SEE NOTE 5)
-D: DOUBLE
TERMINATION
-C1: USE CCA-316 COAX CABLE
* -CA2: USE CCA-178 COAX CABLE
-CA3: USE CCA-179 COAX CABLE
* -C12: USE TCF-3075F-01-COAX CABLE
* -CS5: USE MWC-2550-01-COAX CABLE
(SEE SHT 2, TABLE 4)
*NOT RELEASED FOR PRODUCTION.
28.58 1.125
REF
XXXX
15.50 .610
CABLE LENGTH
REF (SEE TABLE 1 FOR TOLERANCE)
C
4.19 .165
REF
POLARIZATION KEY
1-64 THREAD
'A'
6.00 .236 REF
(No OF POS -1)
x 5.00[.197]
2.81±0.20 .111±.008
RFXXX-XXXXX-SING-XXXX
(SEE TABLE 2, 3, 4)
C
SUB-GRF1-XX-S
(No OF POS x 5.00[.197]) + 7.20[.283]
FIG 1

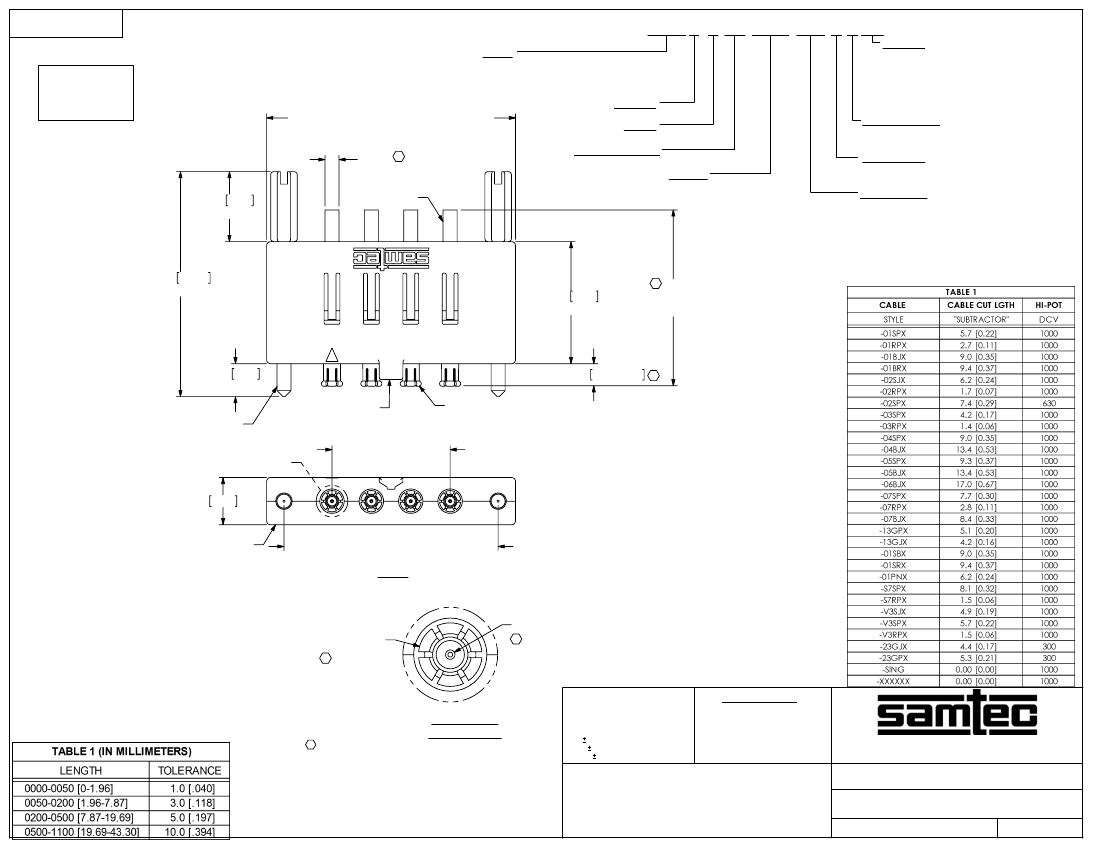

GRFX-P-C-04-XXXX-CXX-S-S-XX SHOWN
Ø "C" (PIN)
C
C
Ø "B" REF
(SHELL)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. USE REMOVAL TOOL #CAT-EX-GRF1-01 TO REMOVE CABLES
FROM ASSEMBLY.
MATERIAL:
DO NOT SCALE DRAWING
3. MINIMUM PULL OUT FORCE: 5 LBS.
COVERS: ABS
4. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT
PLUG: SHELL: BeCu, CONTACT: BRASS
SUPPORTED BY S.I. TEST DATA.
5. SINGLE ENDED ASSEMBLIES BLUNT CUT/NON PREPPED ON CUT END. CABLE; -C1: RG316
-CA2: RF178
6. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS.
-CA3: RG179
7. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1,
-C12: TCF-3075F-01-01
-CS5: MWC-2550-01
F:\DWG\MISC\MKTG\GRFX-P-C-XX-XXXX-XXX-X-X-XX-MKT.SLDDRW
DETAIL 'A'
SCALE 6 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.X: 0.3 [.01]
5°
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 2:1
RF GANGED CABLE JACK ASSEMBLY
GRFX-P-C-XX-XXXX-XXX-X-X-XX
9/15/2004
SHEET
1
OF
3
BY:
D PURVIS
REVISION K

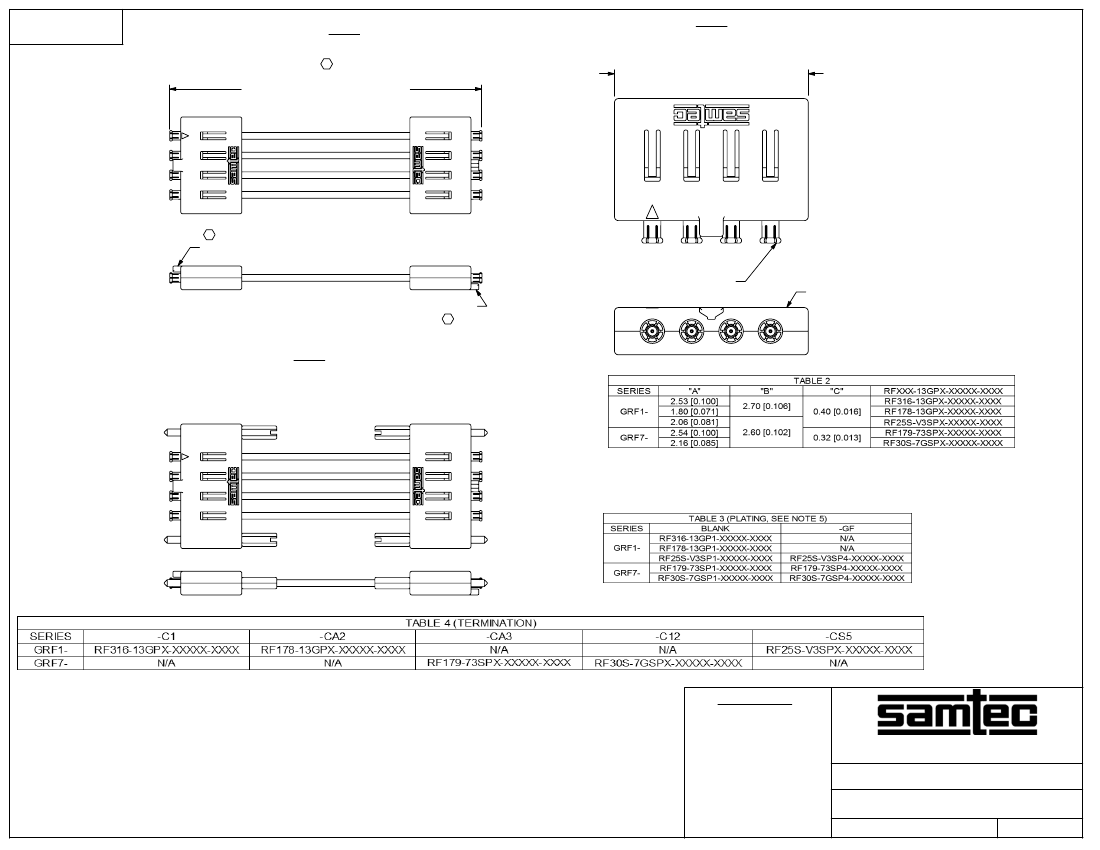

GRFX-P-C-04-XXXX-CXX-D SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1]
XXXXX
CABLE LENGTH
(SEE TABLE 1 FOR TOLERANCE)
C
FIG 3
FIG 2
GRFX-P-C-04-XXXX-CXX-S SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1]
(No OF POS x 5.00[.197]) + 4.60[.181]
KEY UP - END 1
RFXXX-XXXXX-XXXXXX-XXXX
(SEE TABLE 2, 3 & 4)
C
KEY DOWN - END 2
C
SUB-GRF1-XX
GRFX-P-C-04-XXXX-CXX-D-S SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 3]
*
*
*
*NOT RELEASED FOR PRODUCTION.
FIG 4
*
*
*
*
*
*
*
*
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
RF GANGED CABLE JACK ASSEMBLY
GRFX-P-C-XX-XXXX-XXX-X-X-XX
9/15/2004
SHEET
2
OF
3
F:\DWG\MISC\MKTG\GRFX-P-C-XX-XXXX-XXX-X-X-XX-MKT.SLDDRW
BY:
D PURVIS
REVISION K
'B'
DETAIL 'B'
SCALE 6 : 1
GRF1-P-C-04-XXXX-CXX-S-S-XX
DETAIL 'C'
SCALE 6 : 1
'C'
GRF7-P-C-04-XXXX-CXX-S-S-XX
DETAIL 'D'
SCALE 6 : 1
'D'

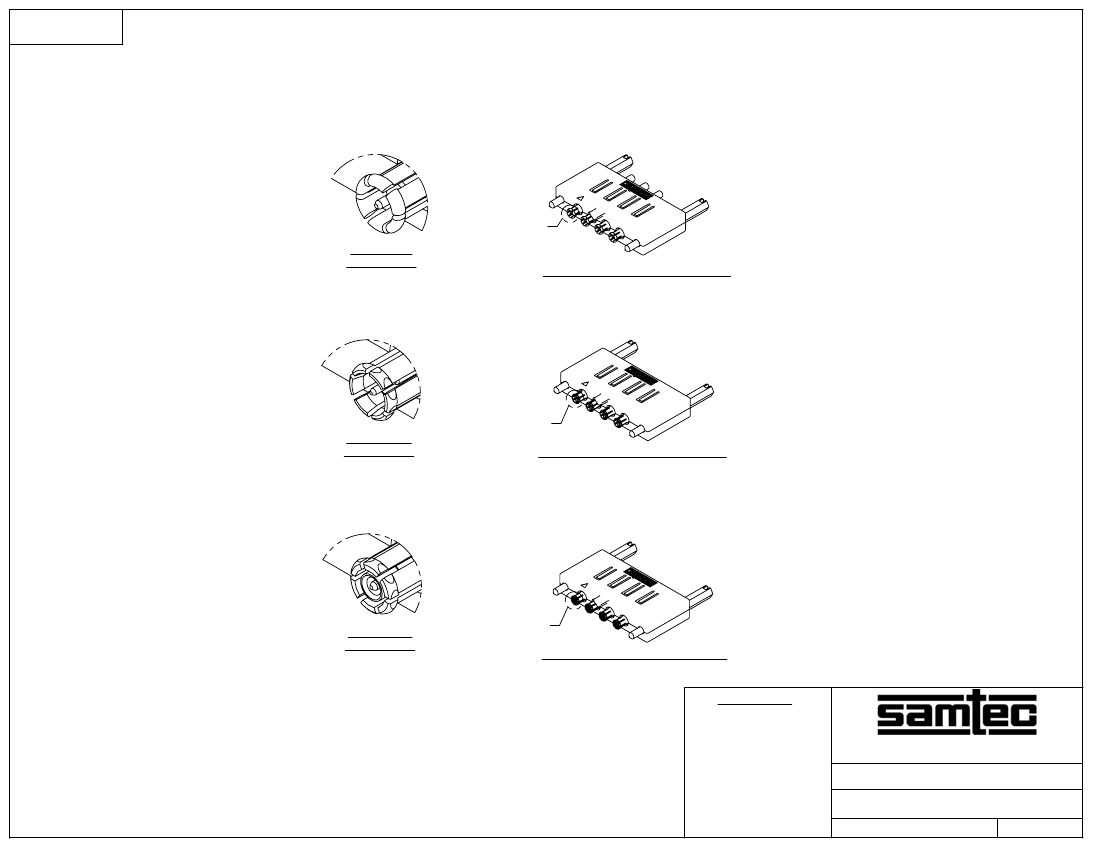

*GRF1-P-C-04-XXXX-CS5-S-S-XX
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
RF GANGED CABLE JACK ASSEMBLY
GRFX-P-C-XX-XXXX-XXX-X
9/15/2004
SHEET
3
OF
3
F:\DWG\MISC\MKTG\GRFX-P-C-XX-XXXX-XXX-X-X-XX-MKT.SLDDRW
BY:
D PURVIS
