CL1H224M04005VR datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL1H224M04005VR

CL1H224M04005VR: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.22uF, Surface Mount, 1717, CHIP; CategoryPassive components capacitor; File Size28KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CL1H224M04005VR Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.22uF, Surface Mount, 1717, CHIP

CL1H224M04005VR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMWHA
Objectid	2008520091
package instruction	, 1717
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.0005 mA
Manufacturer's serial number	CL
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	3 mA
size code	1717
surface mount	YES
Delta tangent	0.12
Terminal surface	Tin (Sn)
Terminal shape	FLAT

Preview

Download Datasheet

View All

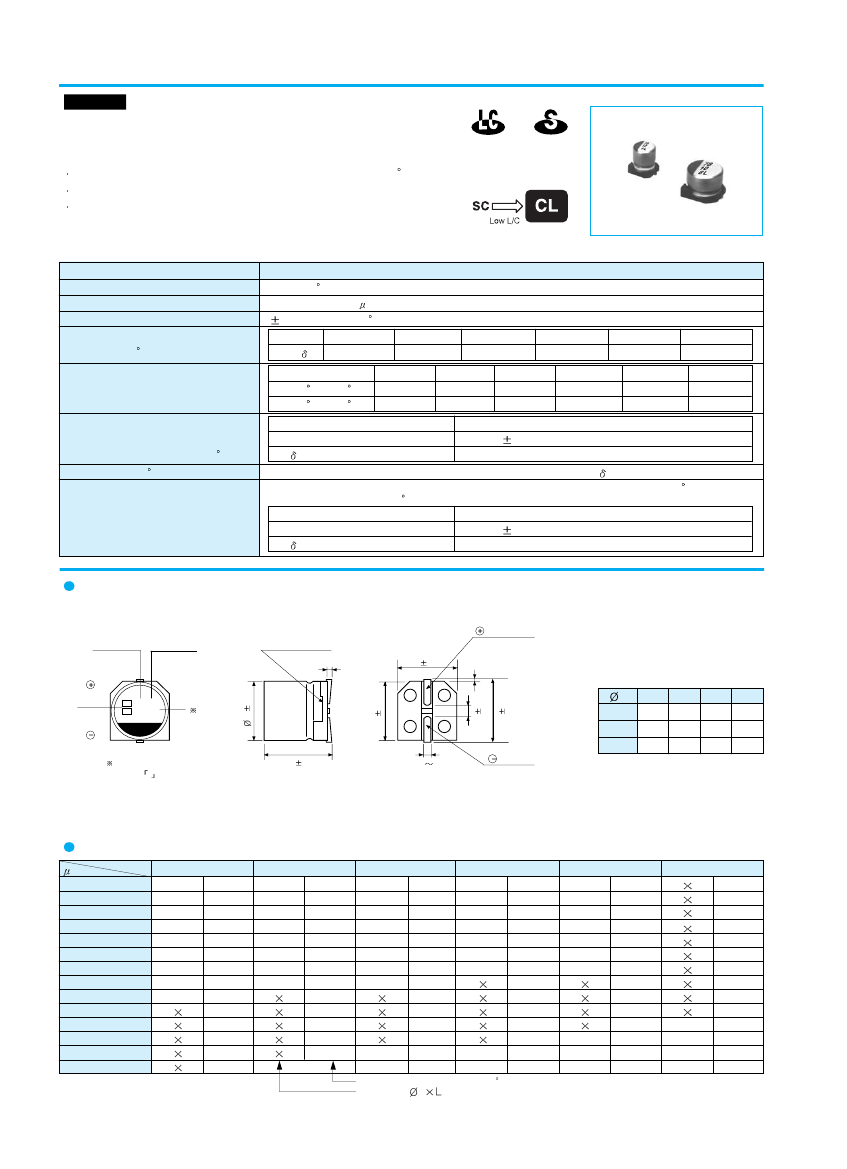

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS

NEW

Chip type Low Leakage Current

Series

Low Leakage

Current

Solvent Proof

Chip type, low leakage current temperature range up to 85 C

Designed for surface mounting on high density PC board

Applicable to automatic insertion machine using carrier tape

Item

Operating temperature range

Leakage current max.

Capacitance tolerance

Dissipation factor max.

(at 120Hz, 20 C)

Low temperature characteristics

(Impedance ratio at 120Hz)

Load life

(after application of the rated

voltage for 2000 hours at 85 C)

Shelf life (at 85 C)

Characteristics

-40 ~ +85 C

I = 0.002CV or 0.5 A whichever is greater (after 2 minutes)

20% at 120Hz, 20 C

tan

6.3

0.26

6.3

0.19

0.16

0.14

0.12

Z-25 C/Z+20 C

Z-40 C/Z+20 C

Leakage current

Capacitance change

tan

Less than specified value

Within 20% of initial value

Less than 200% of specified value

Resistance to soldering heat

After 1000 hours no load test, leakage current, capacitance and tan are same as load life value.

The following specifications shall be satisfied when the capacitors are restored to 20 C

after exposing them at 250 C for 30 seconds.

Less than specified value

Leakage current

Within 10% of initial value

Capacitance change

Less than specified value

tan

Unit : mm

DRAWING

Positive

0.4 max.

Capacitance

Temp. Code

Plastic plateform

0.3 max.

C 0.2

Voltage

B 0.2

E 0.2

Lot No.

6.3

4.8

6.0

7.1

4.3

5.3

6.6

4.3

5.3

6.6

1.0

1.4

2.2

D 0.5

Voltage mark for

6.3V is 6

5.3

0.2

0.5 0.8

DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

100

150

6.3

5.3

6.3

5.3

6.3

5.3

6.3

5.3

6.3

5.3

W 0.2

Negative

6.3

5.3

5.8

Ripple current (mA rms) at 105 C, 120Hz

Case size D

(mm)
