PSV-24-24: DescriptionSmall Size Power Transformer; File Size568KB，2 Pages; ManufacturerWabash Transformer Inc.; Websitehttps://www.wabashtransformer.com/

Download Datasheet View All

PSV-24-24 Overview

Small Size Power Transformer

Preview

Download Datasheet

View All

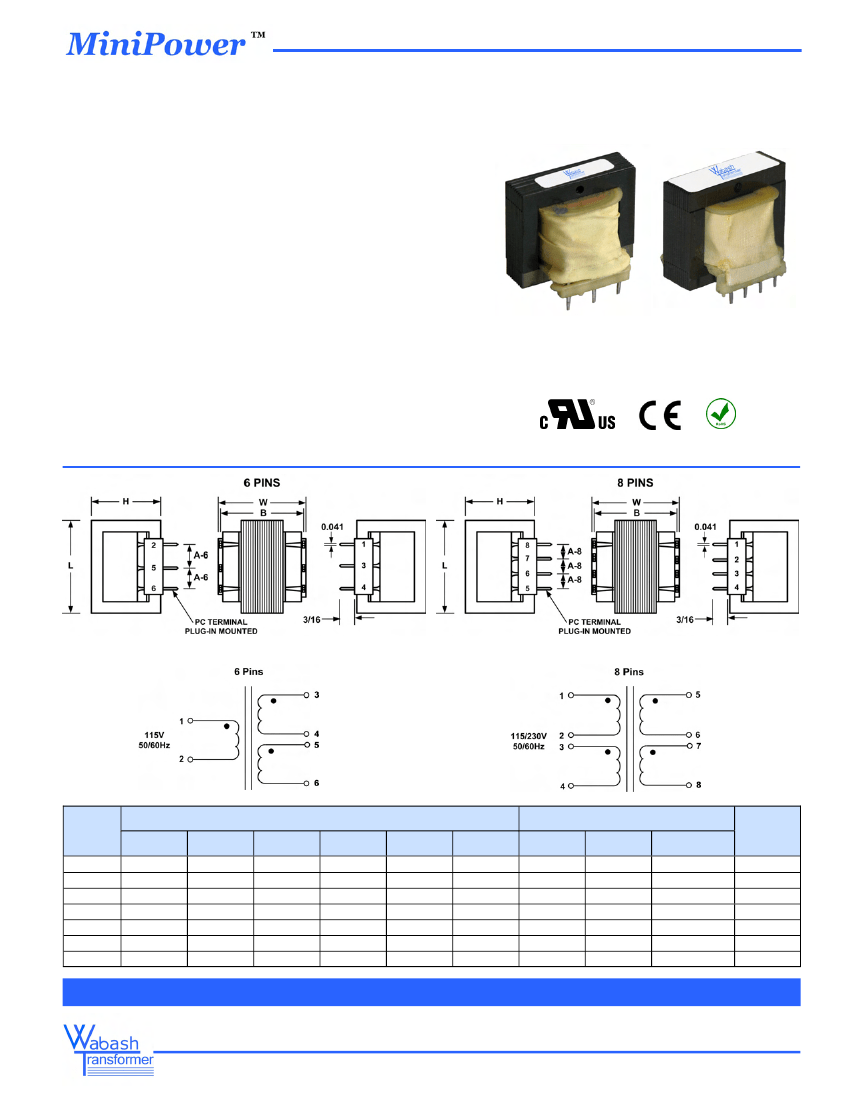

Small Size Power Transformer

Series: PSV & PDV

- Printed Circuit Mount, Vertical



Power Rating 1.0VA to 24VA

Single or Dual Primary, 115V or 115/230V

Frequency 50/60HZ

Series or Parallel Secondary

Dielectric Strength – 1500 Vrms

Insulation Class B (130°C)

Mounting Brackets (See Dim. Table)

Agency Approvals:



UL/cUL 5085-2 Recognized (File E47299)

Insulation File No. E95662

Single Primary

Dual Primary

●

Indicates Like Polarity

Primaries and Secondaries are designed to be used

simultaneously. That is, they must be used either

series or parallel connected (as one winding). Same

applies to secondaries also.

Rating

1.0

1.2

Dimensions (Inches)

1.00

1.375

1.000

1.625

1.875

1.625

1.375

1.125

1.375

1.250

1.438

2.250

0.830

1.188

0.830

1.375

1.625

1.375

A-6

0.250

0.312

0.250

0.400

A-8

0.200

0.250

1.200

1.000

1.200

1.100

1.300

1.425

2.100

No.

10-BKT

24-BKT

Optional Bracket

1.641

1.375

1.125

2.000

Weight

Oz.

2.50

Any application, Any requirement, Contact us for our Custom Designs

Sales Office:

300 W Factory Road, Addison IL 60101

•

Phone: (630) 628-9999

•

Fax: (630) 628-9922

•

www.wabashtransformer.com
