SL10K2-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> SL10K2-5

SL10K2-5: DescriptionROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER; CategoryMechanical and electronic products switch; File Size218KB，2 Pages; ManufacturerNidec Copal Electronics

Download Datasheet Parametric Compare View All

SL10K2-5 Overview

ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER

SL10K2-5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	32 deg
Actuator color	BLACK
Actuator length	0.209 inch
Actuator type	ROCKER
Other features	UL, CSA & VDE APPROVED
body width	13.0048 mm
Body color	BLACK
body height	20.9042 mm
Body length or diameter	18.796 mm
Contact (AC) maximum rated R load	6A@250VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC
Contact function	ON-OFF
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	1500VAC V
Electrical life	10000 Cycle(s)
Insulation resistance	100000000 Ω
Manufacturer's serial number	SL10
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Solderability	HAND
surface mount	NO
Switch action	HORIZONTAL
switch function	DPST
Switch type	ROCKER SWITCH
Terminal length
Termination type	QUICK CONNECT
Washability	SOLVENT

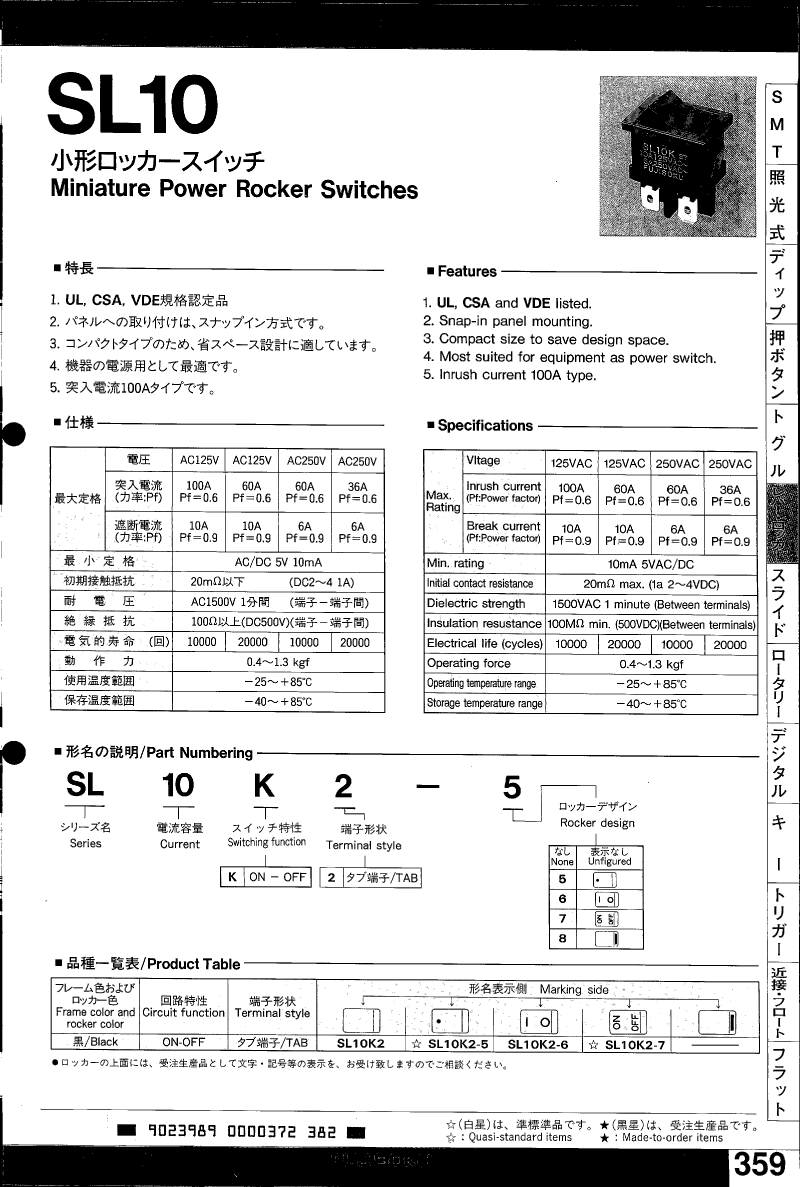

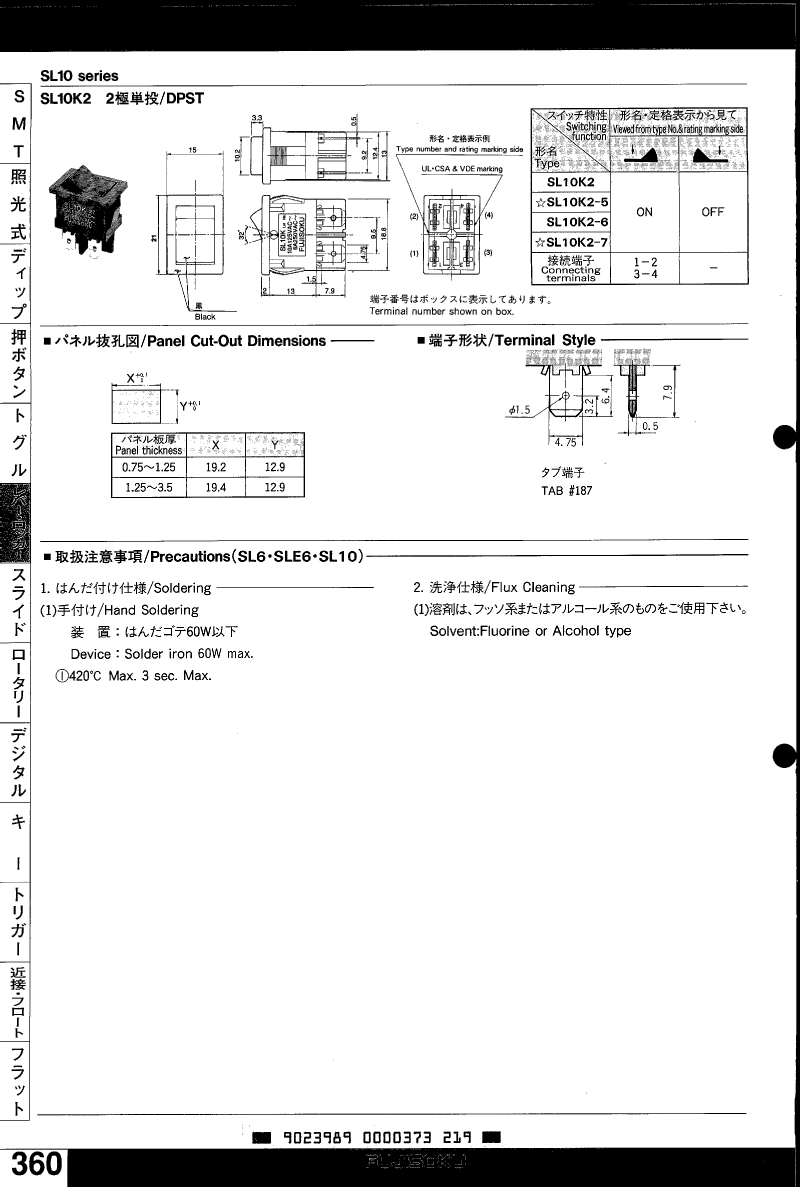

Preview

Download Datasheet

View All

SL10K2-5 Related Products

	SL10K2-5	SL10K2	SL10K2-7	SL10K2-6
Description	ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER	ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER	Rocker Switch, DPST, On-off, Horizontal, 0.01A, 5VDC, Quick Connect Terminal, Rocker Actuator, Panel Mount,	ROCKER SWITCH,STRAIGHT,DPST,ON-OFF,QUICK CONNECT TERMINAL,ROCKER
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator angle	32 deg	32 deg	32 deg	32 deg
Actuator color	BLACK	BLACK	BLACK	BLACK
Actuator length	0.209 inch	0.209 inch	0.209 inch	0.209 inch
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER
Other features	UL, CSA & VDE APPROVED	UL, CSA & VDE APPROVED	UL, CSA & VDE APPROVED	UL, CSA & VDE APPROVED
body width	13.0048 mm	13.0048 mm	13.0048 mm	13.0048 mm
Body color	BLACK	BLACK	BLACK	BLACK
body height	20.9042 mm	20.9042 mm	20.9042 mm	20.9042 mm
Body length or diameter	18.796 mm	18.796 mm	18.796 mm	18.796 mm
Contact (AC) maximum rated R load	6A@250VAC	6A@250VAC	6A@250VAC	6A@250VAC
Maximum contact current (AC)	6 A	6 A	6 A	6 A
Maximum contact current (DC)	0.01 A	0.01 A	0.01 A	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC	0.01A@5VDC	0.01A@5VDC	0.01A@5VDC
Contact function	ON-OFF	ON-OFF	ON-OFF	ON-OFF
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	5 V	5 V	5 V	5 V
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Solderability	HAND	HAND	HAND	HAND
surface mount	NO	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	DPST	DPST	DPST	DPST
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
Washability	SOLVENT	SOLVENT	SOLVENT	SOLVENT
Manufacturer's serial number	SL10	-	SL10	SL10
