A3012-016-ST2-60B6-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3012-016-ST2-60B6-Z

A3012-016-ST2-60B6-Z: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A3012-016-ST2-60B6-Z Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

A3012-016-ST2-60B6-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Objectid	304388386
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.657 inch
subject depth	0.65 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	750VAC V
Durability	2500 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A3012
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

CURRENT RATING: 1.5A Min.

CONTACT RESISTANCE: 30 Milliohms Max.

INSULATION RESISTANCE: 1000 Megaohms Min.

VOLTAGE RATING: 125 VAC RMS

DIELECTRIC WITHSTANDING VOLTAGE: 750VAC (rms) AC for 1 Minute

OPERATING TEMPERATURE: -25° C to +90° C

NUMBER OF PORTS

SHIELD:

6 - CAT 6 SHIELDED

TABS:

ST - SPRING TABS

FLANGE:

0 - NO FLANGE

MATERIAL:

INSULATOR: PBT 20% Glass Filled (UL94V-0)

CONTACT: 0.45mm (0.014") Thickness Phosphor Bronze

CONTACT PLATING: Gold Plating on Contact Area

Sn-Pb or Gold on Solder Area, all over 50u" Nickel

SHIELD: Brass C2 680

SPRING TAB LOCATION:

2 - TOP (2); SIDES (2)

PLATING OVERALL:

0 - FULL Au FLASH

1 - 10u" Au

2 - 30u" Au

3 - 50u" Au

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

PCB GROUND TAB LOCATION:

B6 - BACK 3.05 NO REAR TAB

MECHANICAL:

DURABILITY: 2500 Mating Cycles Min. Operating Temp

E195981

Rev

0 Issued

A Revised for RoHS Compliance

Drawn

A.M.

B.S.

Checked

S.M.

Approved

S.M.

Date

02/01/05

08/27/08

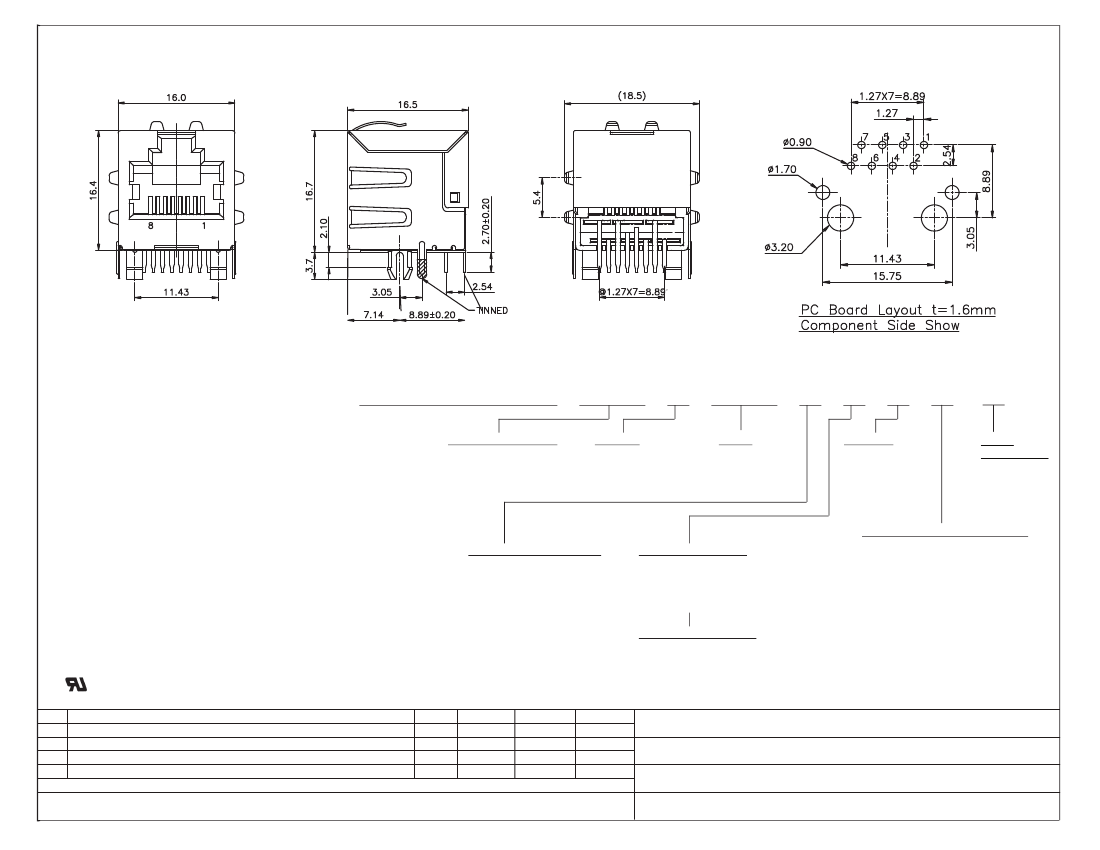

SMP TECHNOLOGY, INC.

RJ45, High Speed, Single Port, Side Entry, Category 6, Shielded,

EMI Spring Tabs on Top and Sides

TOL. DEC.

.X +/-

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

Series: A3012-016-ST2-X0B6-Z

Pg: 1

A3012-016-ST2-60B6-Z Related Products

	A3012-016-ST2-60B6-Z	A3012-016-ST2-80B6-Z	A3012-016-ST2-90B6-Z	A3012-016-ST2-70B6-Z
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.657 inch	0.657 inch	0.657 inch	0.657 inch
subject depth	0.65 inch	0.65 inch	0.65 inch	0.65 inch
body length	0.63 inch	0.63 inch	0.63 inch	0.63 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V
Durability	2500 Cycles	2500 Cycles	2500 Cycles	2500 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A3012	A3012	A3012	A3012
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1
Maximum operating temperature	90 °C	90 °C	90 °C	90 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	FLASH inch	15u inch	30u inch	10u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS	BRASS	BRASS
Terminal length	0.106 inch	0.106 inch	0.106 inch	0.106 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8
