IllumInatIon
luXEon Z ES
Extreme flux density in a micro footprint
package for precise optical control

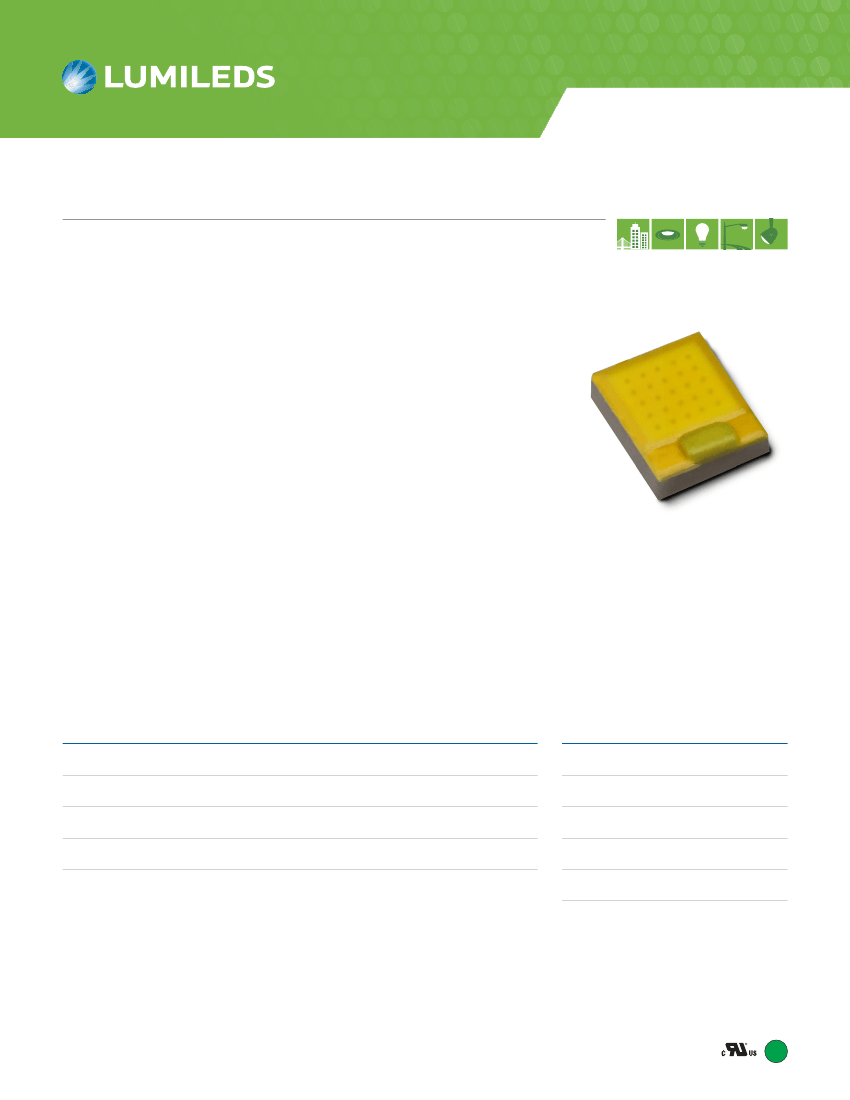

LUXEON Z ES is a high power 1.6mm x 2.0mm LED that enables never
before seen color consistency, luminance, flux density and design
flexibility for lighting solutions. It is the first ever 1-step MacAdam ellipse
warm white LED. LUXEON Z ES is undomed, a feature that provides
unmatched optical flexibility for precise beam angle control. Tested and
binned at application conditions, 85°C, LUXEON Z ES emitters are an ideal
choice for indoor and outdoor light sources requiring superior beam
angles, higher efficacy and lower costs.
FEaturES and BEnEFItS
Micro footprint enables close packaging
Undomed design allows precise optical control
1-, 3- and 5-step MacAdam ellipse:
Freedom from Binning
enabling
color consistency
LM-80 test report available
PrImary aPPlIcatIonS
Architectural
Downlights
Lamps
Outdoor
Spotlights
DS134 LUXEON Z ES Product Datasheet ©2015 Lumileds Holding B.V. All rights reserved.
No. E352519
COMPLIANT
RoHS
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Test Conditions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lumen Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical and Thermal Characteristics.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Forward Current Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Product Bin and Labeling Definitions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Luminous Flux Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Radiometric Power Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Color Bin Definition
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Peak Wavelength Bins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Soldering Reflow Guidelines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
JEDEC Moisture Sensitivity
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Pocket Tape Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DS134 LUXEON Z ES Product Datasheet 20150714 ©2015 Lumileds Holding B.V. All rights reserved.
i
General Product Information
Product Test Conditions
LUXEON Z ES are tested and binned with a drive current of 700mA for 3V part or 40mA for 48V part at a junction temperature,
T
j
, of 85°C.
Part Number Nomenclature
Part numbers for LUXEON Z ES follow the convention below:
L X Z
A – B C D E – F
Where:
A
-
designates voltage (2=3V and H=48V)
designates nominal ANSI CCT or color (eg. 27=2700K, 30=3000K and PR=Royal Blue)
designates minimum CRI performance (70=70CRI, 80=80CRI, 90=90CRI, 02=Royal Blue)
designates white color space definition (1=1 SDCM, 3=3 SDCM and 5=5 SDCM, not used for Royal Blue)
B C
-
D E
-
F
-
Therefore, the following part number is used for a LUXEON Z ES White 3V, 3000K 80CRI LED, which is binned within a 3-step
MacAdam ellipse:
L X Z
2 – 3 0 8 0 – 3
Lumen Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-
term performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON Z ES is
compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the
RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted
materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE).
DS134 LUXEON Z ES Product Datasheet 20150714 ©2015 Lumileds Holding B.V. All rights reserved.
2
Performance Characteristics
Product Selection Guide
Table 1a . Product performance of LUXEON Z ES 3V at 700mA and 350mA, T
j
=85ºC .
nomInal
cct
4000K
5000K
5700K
6500K
2200K
2700K
3000K
3500K
4000K
5000K
2700K
3000K
3500K
4000K
5700K
mInImum
crI
70
70
70
70
80
80
80
80
80
80
90
90
90
90
90
lumInouS FluX
[1]
(lm)
mInImum
220
220
220
220
140
170
180
190
190
190
140
150
150
150
170
tyPIcal
700ma
240
245
245
245
150
185
195
205
220
220
160
170
171
180
190
122
125
125
125
77
94
99
105
112
112
82
87
87
92
97
132
135
135
135
83
102
107
113
121
121
88
94
94
99
105
tyPIcal
lumInouS
EFFIcacy (lm/W)
tyPIcal
lumInouS
FluX (lm)
tyPIcal
lumInouS
EFFIcacy (lm/W)
350ma
139
142
142
142
87
107
113
118
127
127
92
98
98
104
110
LXZ2-4070
LXZ2-5070
LXZ2-5770
LXZ2-6570
LXZ2-2280-x
LXZ2-2780-x
LXZ2-3080-x
LXZ2-3580-x
LXZ2-4080-x
LXZ2-5080-x
LXZ2-2790-x
LXZ2-3090-x
LXZ2-3590-x
LXZ2-4090-x
LXZ2-5790-x
Part numBEr
[2]
Table 1b . Product performance of LUXEON Z ES 48V at 40mA and 20mA, T
j
=85ºC .
nomInal
cct
2700K
mInImum
crI
80
lumInouS FluX
[1]
(lm)
mInImum
150
tyPIcal
40ma
165
83
91
tyPIcal
lumInouS
EFFIcacy (lm/W)
tyPIcal
lumInouS
FluX (lm)
tyPIcal
lumInouS
EFFIcacy (lm/W)
20ma
93
LXZH-2780-x
Part numBEr
[2]
Table 1c . Product performance of LUXEON Z ES Royal Blue at 700mA, T
j
=85ºC .
color
Royal Blue
radIomEtrIc PoWEr (mW)
mInImum
800
tyPIcal
850
tyPIcal radIant
EFFIcIEncy (%)
45%
Part numBEr
LXZ2-PR02
Notes for Tables 1a, 1b and 1c:
1.
Lumileds maintains a tolerance of ±6.5% on both luminous flux and radiometric power and ±2 on CRI measurements.
2.
In the part number the -x is the designation for the white color space requirement. On 80CRI and 90CRI versions -1 designates 1 SDCM, -3 designates 3 SDCM, -5 designates 5 SDCM. 70 CRI
parts or lower will not have a SDCM designation and all parts are binned within a 5 step SDCM.
DS134 LUXEON Z ES Product Datasheet 20150714 ©2015 Lumileds Holding B.V. All rights reserved.
3
Optical Characteristics
Table 2 . Optical characteristics for LUXEON Z ES at 700mA .
Part numBEr
LXZ2-xxxx
LXZ2-xxxx-x
LXZH-xxxx-x
LXZ2-PR02
tyPIcal total IncludEd anglE
[1]
140°
140°
140°
140°
tyPIcal VIEWIng anglE
[2]
116°
116°
116°
120°
Notes for Table 2:
1.
Total angle at which 90% of total luminous flux is captured.
2.
Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
Electrical and Thermal Characteristics
Table 3a . Electrical and thermal characteristics for LUXEON Z ES at 700mA .
Part numBEr
LXZ2-xxxx
LXZ2-xxxx-x
ForWard VoltagE (V)
mInImum
2.5
2.5
tyPIcal
2.8
2.8
maXImum
3.25
3.25
tyPIcal tEmPEraturE
coEFFIcIEnt oF ForWard
VoltagE (mV/°c)
-1.6
-1.6
tyPIcal thErmal
rESIStancE JunctIon to
SoldEr Pad (°c/W)
3
3
Notes for Table 3a:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
2.
Measured between 25°C and 110°C.
Table 3b. Forward voltage and typical thermal resistance for LUXEON Z ES at 40mA.
Part numBEr
LXZH-xxxx-x
ForWard VoltagE (V)
mInImum
48.5
tyPIcal
49.0
maXImum
50.5
tyPIcal tEmPEraturE
coEFFIcIEnt oF ForWard
VoltagE (mV/°c)
-30
tyPIcal thErmal
rESIStancE JunctIon to
SoldEr Pad (°c/W)
3
Notes for Table 3b:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
2.
Measured between 25°C and 110°C.
DS134 LUXEON Z ES Product Datasheet 20150714 ©2015 Lumileds Holding B.V. All rights reserved.
4
