51939-078LF

Description
Board Connector, 43 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE
CategoryThe connector    The connector
File Size210KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

51939-078LF Overview

Board Connector, 43 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51939-078LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
body width0.574 inch
subject depth0.93 inch
body length5.85 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage1000VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number51939
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts43
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N

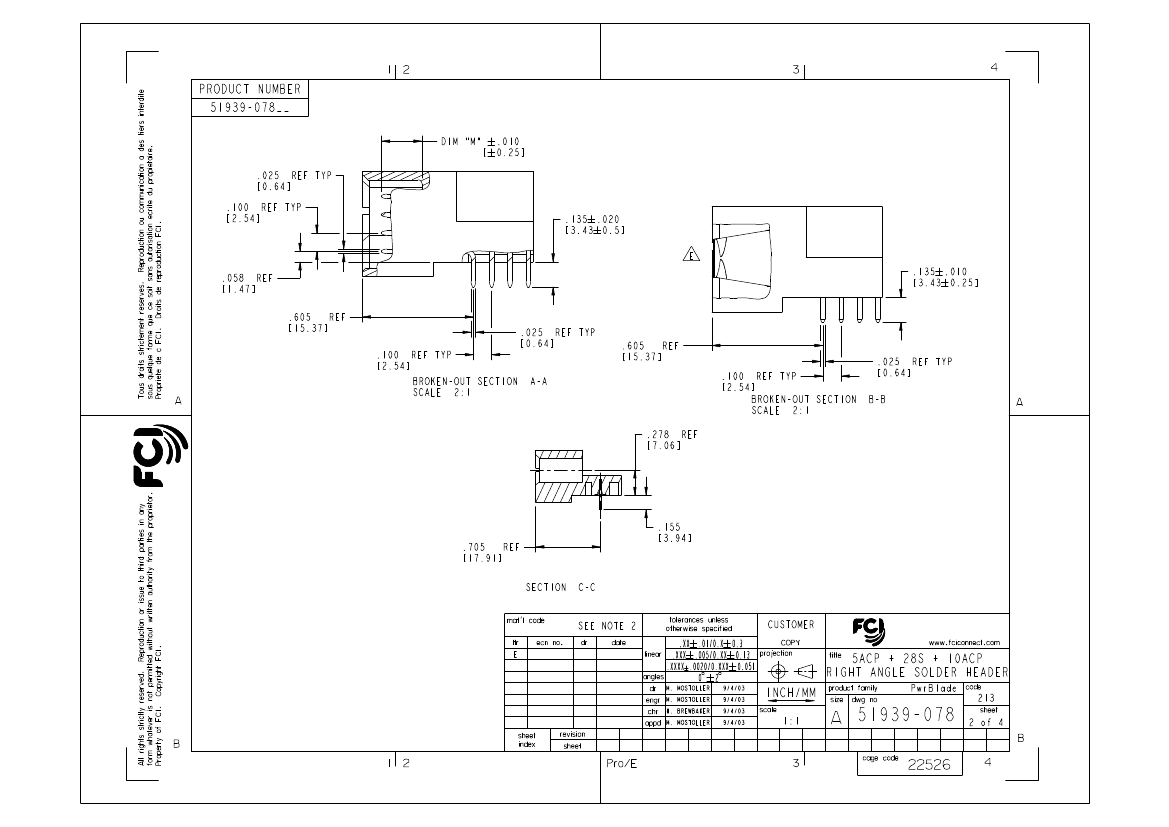

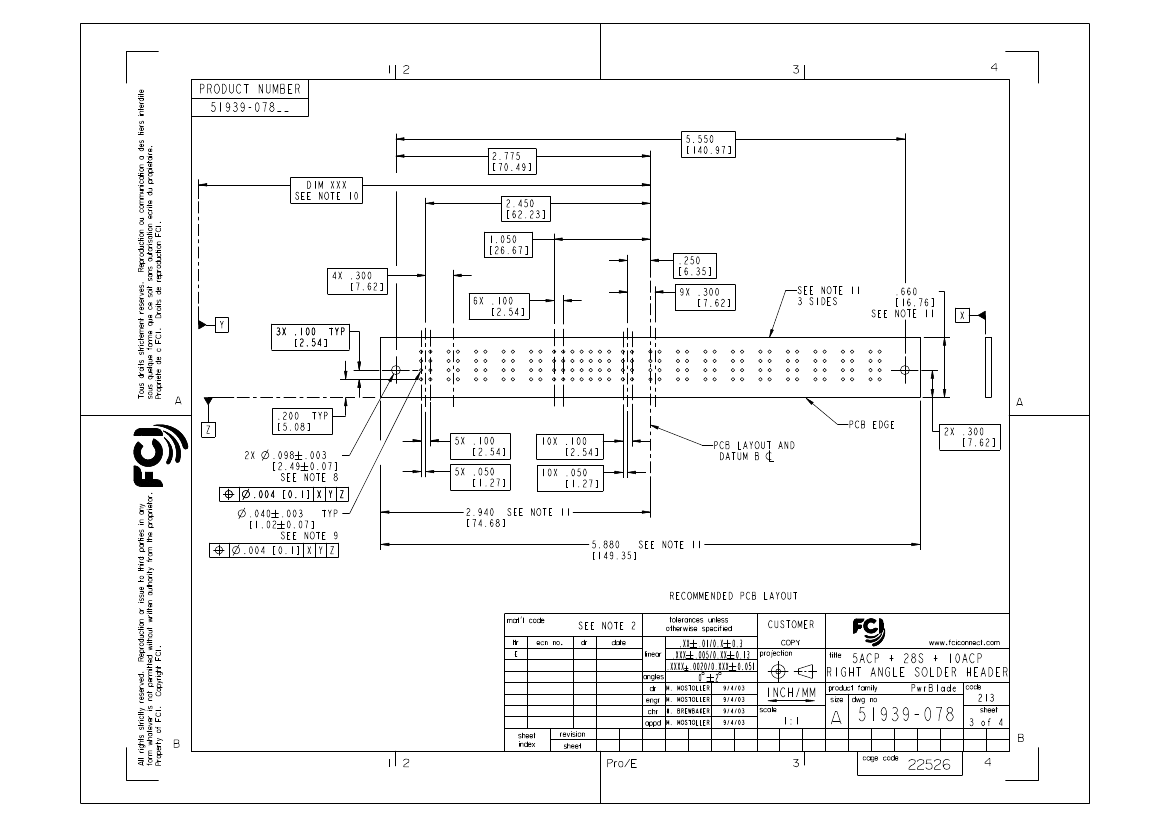

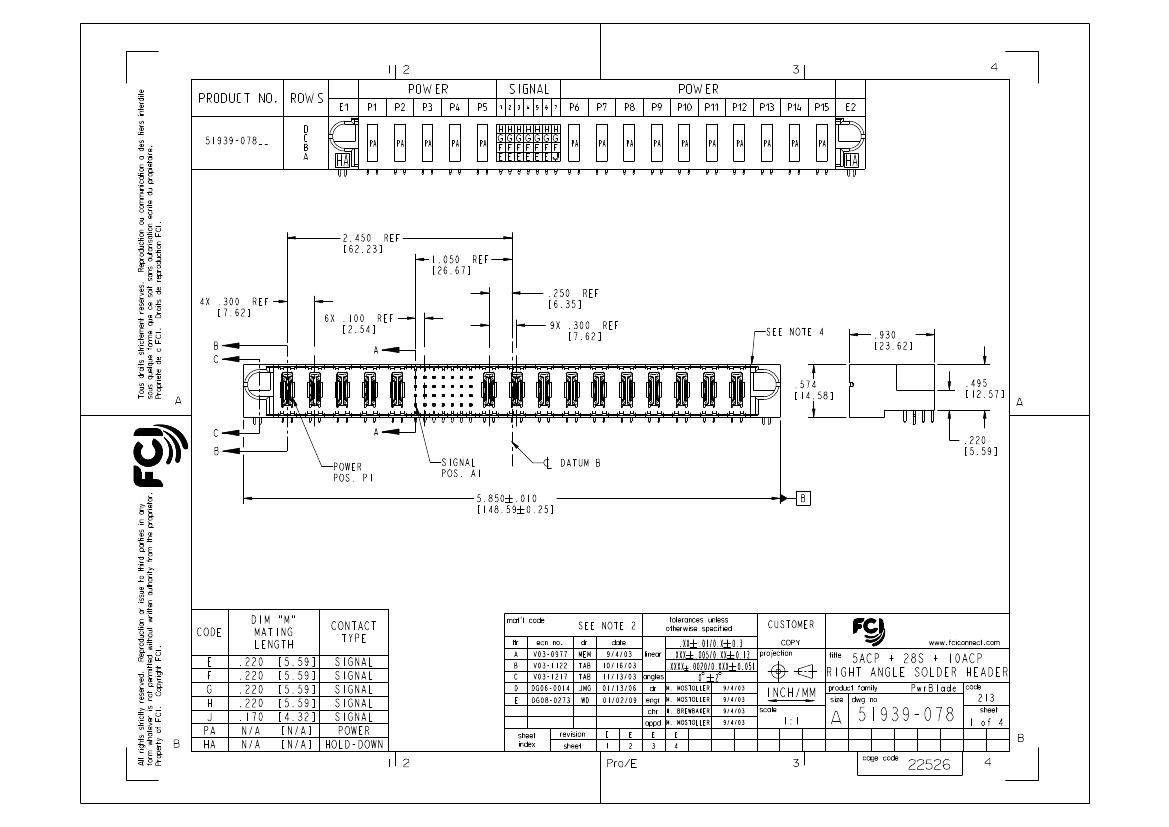

PDM: Rev:E
STATUS:
Released
Printed: Dec 20, 2010
.

51939-078LF Related Products

51939-078LF 51939-078GLF 51939-078
Description Board Connector, 43 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE Board Connector, 43 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE Board Connector, 43 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Reach Compliance Code compliant compliant compliant
Other features TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact point gender MALE MALE MALE
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance NO NO NO
Manufacturer's serial number 51939 51939 51939
Mixed contacts YES YES YES
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of rows loaded 4 4 4
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 43 43 43
UL Flammability Code 94V-0 94V-0 94V-0
Is it Rohs certified? conform to - incompatible
package instruction LEAD FREE LEAD FREE -
body width 0.574 inch - 0.574 inch
subject depth 0.93 inch - 0.93 inch
body length 5.85 inch - 5.85 inch
Body/casing type RECEPTACLE - RECEPTACLE
Contact to complete cooperation NOT SPECIFIED - NOT SPECIFIED
Contact material NOT SPECIFIED - NOT SPECIFIED
Contact resistance 20 mΩ - 20 mΩ
Contact style HYBRID - HYBRID
Dielectric withstand voltage 1000VDC V - 1000VDC V
Durability 200 Cycles - 200 Cycles
maximum insertion force .973 N - .973 N
Insulation resistance 500000000 Ω - 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC - GLASS FILLED THERMOPLASTIC
Installation option 1 LOCKING - LOCKING
Number of connectors ONE - ONE
Maximum operating temperature 85 °C - 85 °C
Minimum operating temperature -55 °C - -55 °C
Guideline UL - UL
reliability COMMERCIAL - COMMERCIAL
Terminal length 0.135 inch - 0.135 inch
Evacuation force-minimum value .1668 N - .1668 N
Maker - Amphenol Amphenol
ECCN code - EAR99 EAR99
