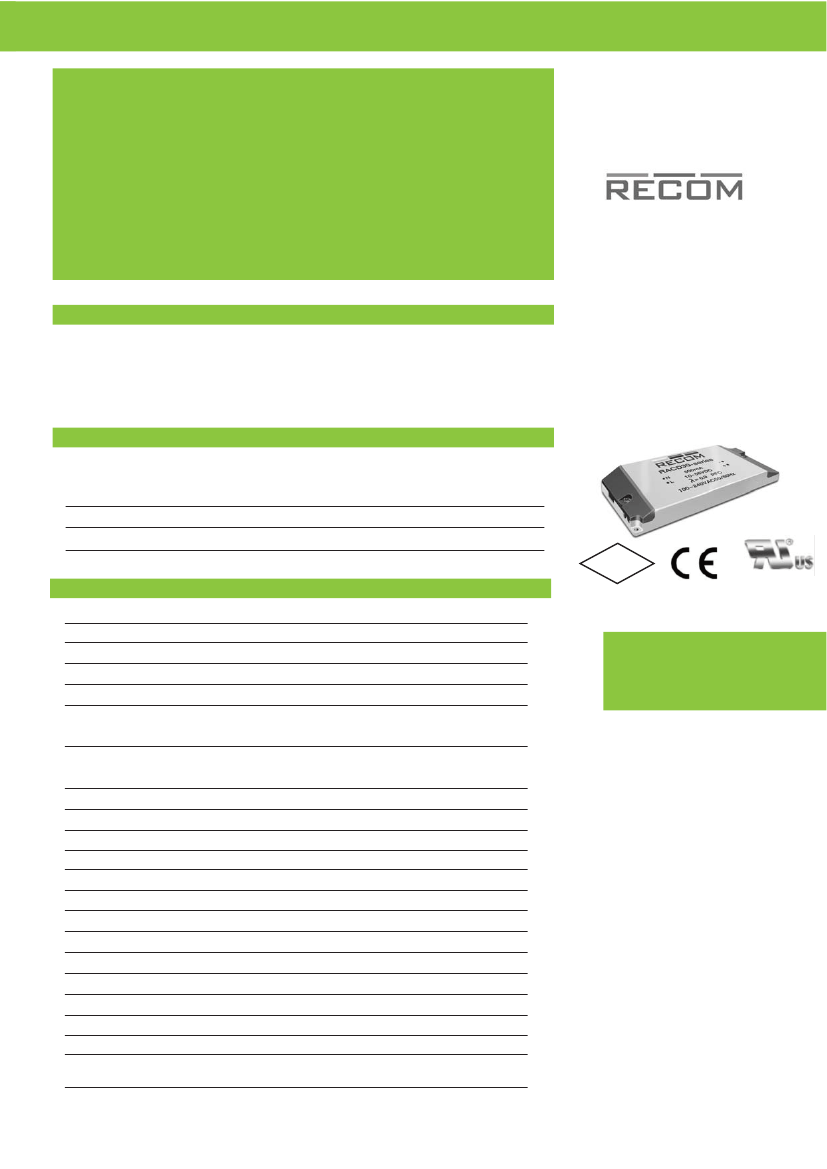

Features
LED
DRIVER
●
●
●
●
●
●
●
●
●
●
●
30W Class II AC-DC LED Power Supply
500mA or 700mA Constant Current
Drives 3 - 15 High brightness LEDs
Universal AC Input
Active Power Factor Correction >0.95
Fused Input, Protected Output
3kVAC Isolation
UL-8750 Certified
Output Connector to avoid miswiring
Low Cost
Long 5 Year Warranty
LIGHTLINE
AC/DC-Converter
with 5 year Warranty
Description
A compact 30W constant current switching power module suitable for driving up to 15 high power LEDs (Vf = 3.6V).
The output current is fixed at 500mA or 700mA. Active power factor correction is standard.
This series features both screw terminal and socket output connections. The socket connecter avoids the possibility of
miswiring and damaging the LED load if the LEDs are preassembled into a wiring harness or lamp fitting.
30 Watt PFC
Single
Output
Selection Guide
Part
Number
RACD30-500
RACD30-700
Input Voltage
Range
(VAC)
universal
universal
Input Current
at full load
(mA)
390
390
Output
Output
Voltage Range Current
(VDC)
(mA)
10-56
10-43
500
700
Max
#
LEDs
15 x 2W
12 x 3W, 12+12 x 1W
2011/65/EU
6/6
RoHS
Specifications
(typical at 25°C and after warm up time unless otherwise specified )
Input Voltage Range
Rated Power
Input Frequency Range
Power Factor
THD
Open Circuit Voltage
(Zener Clamp)
Inrush Current (<2mS)
Input Current
Leakage Current
Input Fuse
Output Current Accuracy
Minimum Load
Hold Up Time
Operating Frequency
Efficiency at Full Load
RMS Isolation Voltage (input to output)
Temperature Coefficient
Overload Protection
Short Circuit Protection
Output Overvoltage Protection
500mA Version
700mA Version
Full Load, 115VAC/230VAC
Full Load, 115VAC
Full Load, 230VAC
500mA Version
700mA Version
115VAC/230VAC
230VAC, Full Load
115VAC/240VAC - 60/50Hz
Standard
(combined Tolerance, load Regulation and Line Regulation)
Open Circuit Protected
Standard
90-264VAC
30 Watts max.
47-63 Hz
0.9
13% max.
11% max.
58VDC
48VDC
10A max.
390mA typ.
0.5mA typ.
T1A
±10%
3 LEDs
18ms min.
40 - 100 kHz typ.
85%
3kVAC / 1 minute
±0.02%/°C typ.
120% typ.
Continuous Current Limit
56V Zener Diode Clamp
43V Zener Diode Clamp
continued on next page
www.recom-international.com
REV: 0/2013
E340696
UL-8750 Certified
EN 61347 Certified
RACD30
Please Read Application Notes
L-39
LIGHTLINE
AC/DC-Converter
Specifications
cont.
(typical at 25°C and after warm up time unless otherwise specified )
Overtemperature Protection
Operating Temperature Range
(free air convection)
Weight
Packing Quantity
Storage Temperature Range
Humidity
IP Rating
PCB Material
Case Material
Designed to meet Standards
RACD30
Series
Shutdown, Automatic restart after cooling down
Ambient Temperature
-20°C to +50°C
Case Temp. 85°C max. (500mA version: 90°C max.)
169g
1pc
-40°C to +100°C
95% RH max.
IP20, Indoor Use Only
Plastic Resin with Fibreglass (UL94V-0)
Plastic
Electrical Lighting, EMC Emissions
EN55015:2006 + A1: 2007 + A2:2009
Limits for Harmonics Emissions
EN 61000-3-2:2006
EMC Compatibilty: Flicker and Voltage Variations
EN 61000-3-3:2006
Electrical Lighting: EMC Immunity
EN 61547:1995 + A1:2000
Class II Power Supply Safety
UL1310
FCC
FCC18A
<20%
LED Lighting Safety
UL8750
SEMKO CE Certification, General Safety
EN 61347-1: 2008
SEMKO CE Certification, Safety of AC supplied Control Gear for LED Modules
EN 61347-2-13: 2006
25°C ambient
AC Input
LED Output
LED Output
>70 x 10³ hours in operation
Screw terminal
Screw Terminal
5.5mm Socket with 2mm Pin (Suitable matching plug Switchcraft S760 or similar)*
THD
Certifications
Design Lifetime
Connections
* Do not connect or disconnect the LED load while the converter is on. This may damage the LED or reduce its life.
Package Style and Pinning
RACD30
160
3rd angle
projection
5.5mm socket
x 2.1mm
42
Tc
8
3.5mm dia.
152
45
50
Cable entry
with strain relief
Connections
CN1
Function
VAC in (L)
VAC in (N)
Function
LED+
LED-
15
22
L
N
CN2
+
2 Mounting screws are included
Tc=Case Temperature Measuring Point
-
5.5mm Socket Function
Pin
Shell
Tolerance
XX =+/-1mm
XX.X =+/-0.5mm
LED+
LED-
L-40
