MB-472-100-126-8C00 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> MB-472-100-126-8C00

MB-472-100-126-8C00: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size854KB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric View All

MB-472-100-126-8C00 Overview

Connector Accessory

MB-472-100-126-8C00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AirBorn
Reach Compliance Code	compli
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	MB
Base Number Matches	1

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

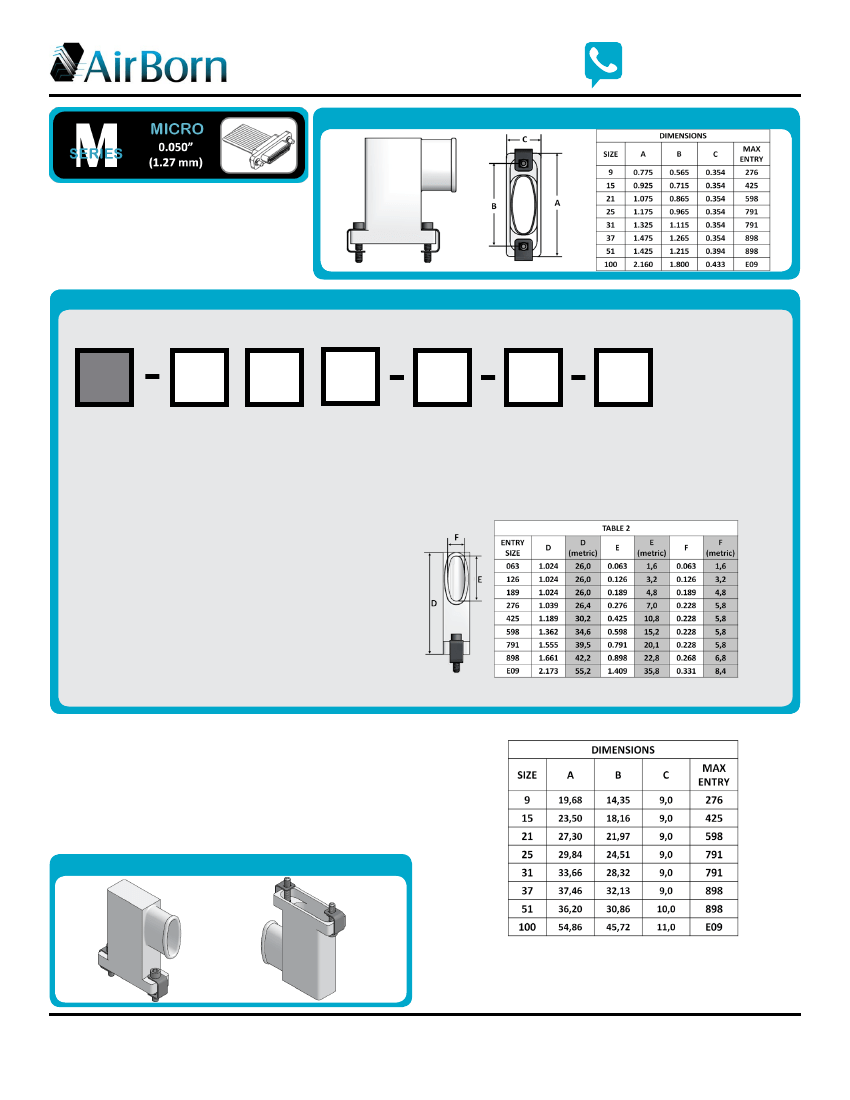

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

MB 7 – Banding Backshell with

Elongated End Entry

For use with AirBorn rugged M-Series (MM)

and MIL-DTL-83513 style connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: MB-273-015-XXX-4A00

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Micro Connector

Backshells

ROWS

2 – 2-Row

(Sizes 9-37)

3 – 3-Row

(Size 51)

4 – 4-Row

(Size 100)

BODY STYLE

7 – Elongated

end entry

BODY MATERIAL

2 – Nickel-plated

aluminum

3 – Cadmium-plated

aluminum *

5 – Passivated

stainless steel

SIZE

009 – 9 Contacts

015 – 15 Contacts

021 – 21 Contacts

025 – 25 Contacts

031 – 31 Contacts

037 – 37 Contacts

051 – 51 Contacts

100 – 100 Contacts

ENTRY SIZE

See Table 2 below

HARDWARE

0000 – None

2200 – Jackpost, 2-56 (sizes 9-51, only)

4A00 – Allen head jackscrew, 2-56 (sizes 9-51, only)

4B00 – Slot head jackscrew, 2-56 (sizes 9-51, only)

6200 – Jackpost, 4-40 (size 100, only)

8A00 – Allen head jackscrew, 4-40 (size 100, only)

8C00 – Slot head jackscrew, 4-40 (size 100, only)

NOTES

* Option not RoHS-compliant

Band-It application tool: CDG10027

Stainless steel microband: CDG10026 (sold separately)

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640,

Type 1 or AISI-303 or EN 10088-3 1½4305

Passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

MB-273-015-XXX-4A00

MB7-PNB-1

www.airborn.com

(512 ) 863-5585
