TXS1C-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> TXS1C-FREQ

TXS1C-FREQ: DescriptionTTL Output Clock Oscillator, 40MHz Min, 160MHz Max, DIP-14/4; CategoryPassive components oscillator; File Size32KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/

Download Datasheet Parametric View All

TXS1C-FREQ Overview

TTL Output Clock Oscillator, 40MHz Min, 160MHz Max, DIP-14/4

TXS1C-FREQ Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	1%
Manufacturer's serial number	TX045
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	TTL
Output load	10 LS TTL
physical size	20.8mm x 13.2mm x 7.62mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

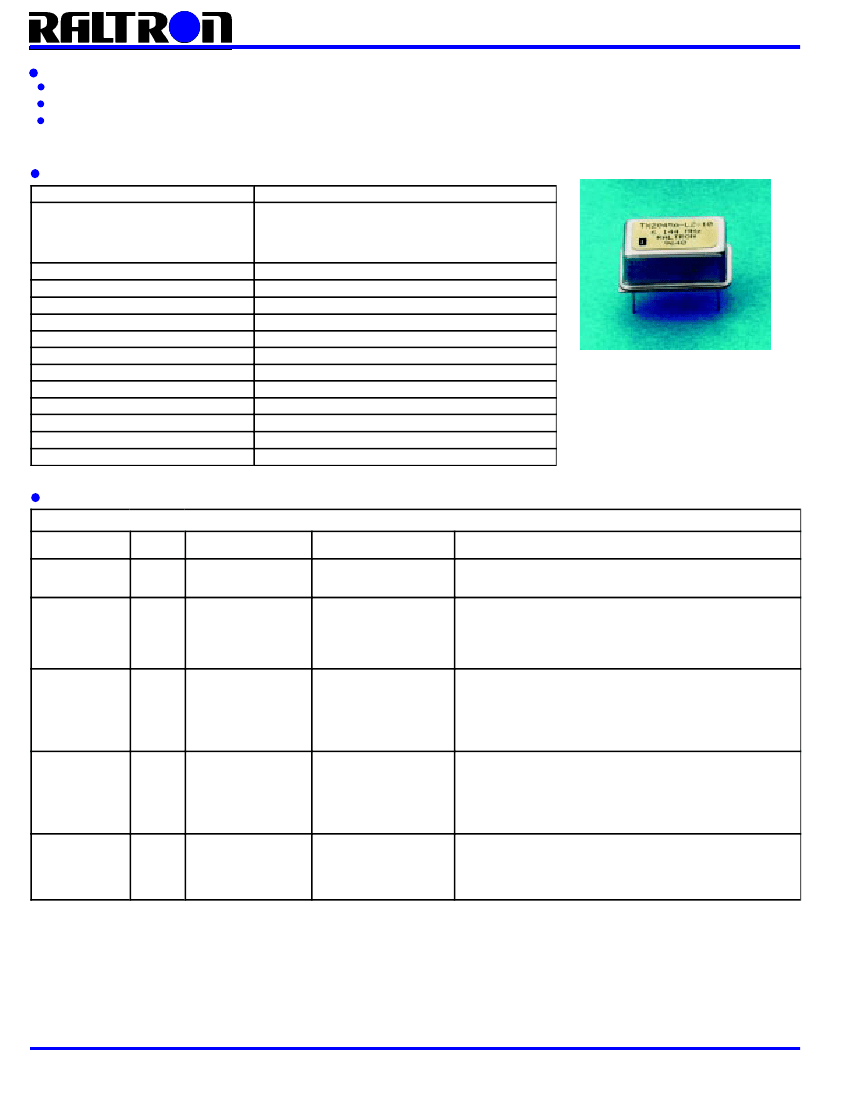

TEMPERATURE COMPENSATED CRYSTAL OSCILLATORS

SERIES TX 045 AND TV045

FEATURES

WIDE FREQUENCY RANGE TO 160.00 MHz IN 14 PIN DIP

ENABLE/DISABLE AND VOLTAGE CONTROL OPTIONS

TTL, HCMOS, ACMOS, SINEWAVE, CLIPPED SINEWAVE, ECL, AND PECL

SPECIFICATIONS

FREQUENCY RANGE

1.50 MHz TO 160.00 MHz (SEE TABLE 1)

A: ±0.5 PPM OVER 0° C TO 50° C

B: ±1.0 PPM OVER 0° C TO 70° C

C: ±1.0 PPM OVER -20° C TO 70° C

D: ±1.5 PPM OVER -30° C TO 75° C

E: ±2.0 PPM OVER -40° C TO 85° C

±2.0 PPM MAXIMUM

±1.0 PPM MAXIMUM PER YEAR

-50° C TO 90° C

SEE TABLE 1 FOR OUTPUT TYPES

SEE TABLE 1 FOR LOAD CHARACTERISTICS

±0.2 PPM MAXIMUM FOR ±10% VARIATION FROM STANDARD LOAD

+5.0 VDC ±5%

±0.2 PPM MAXIMUM FOR ±5% VARIATION FROM NOMINAL SUPPLY

SEE TABLE 1 FOR CURRENT CHARACTERISTICS

SEE TABLES 2 AND 3 FOR PIN FUNCTION AND VOLTAGE

SEE TABLE 4 FOR CHARACTERISTICS

SEE TABLE 5

FREQUENCY STABILITY OVER OPERATING

TEMPERATURE

FREQUENCY STABILITY VS. CALIBRATION

FREQUENCY STABILITY VS. AGING

STORAGE TEMPERATURE RANGE

OUTPUT WAVEFORM

LOAD

FREQUENCY STABILITY VS. LOAD VARIATION

SUPPLY VOLTAGE (VCC)

FREQUENCY STABILITY VS. SUPPLY VARIATION

SUPPLY CURRENT

ENABLE/DISABLE FUNCTION (TE OPTION)

VOLTAGE CONTROL FUNCTION (TV OPTION)

ENVIRONMENTAL CONDITIONS

OUTPUT WAVEFORM AND LOAD CHARACTERISTICS

TABLE 1 - OUTPUT WAVEFORM AND CHARACTERISTICS, FREQUENCY RANGE, AND MODE OF OSCILLATION

OUTPUT

WAVEFORM

CLIPPED SINEWAVE

OUTPUT

CODE

FREQUENCY RANGE

MODE OF

OSCILLATION CODE

F: FUNDAMENTAL

OUTPUT CHARACTERISTICS

LOAD: 10 K OHM // 10pF

OUTPUT LEVEL: 0.7 V P-P MINIMUM

SYMMETRY: 60/40 % TO 40/60 % TYPICAL

8.00 MHz TO 40.00 MHz

TTL

1.50 MHz TO 30.00 MHz

30.00 MHz TO 100.00 MHz

40.00 MHz TO 160.00 MHz

LOAD: HCMOS TO DRIVE 2 LS TTL NOMINAL OR 10 LS TTL MAXIMUM GATES

"1" LEVEL: +2.4 VDC MINIMUM

F: FUNDAMENTAL

"0" LEVEL: +0.1 VCC MAXIMUM

O: OVERTONE

SYMMETRY: 40/60 TO 60/40% AT 1.2 V

P: PHASE LOCKED LOOP (PLL)

RISE AND FALL TIME: 10 ns MAXIMUM

CURRENT: 20 mA MAXIMUM (F), 30 mA MAXIMUM (O), 45 mA MAXIMUM (PLL)

LOAD: 2 LS TTL/HCMOS NOMINAL OR 10 LS TTL/HCMOS MAXIMUM GATES

"1" LEVEL: +4.5 VDC MINIMUM

F: FUNDAMENTAL

"0" LEVEL: +0.5 VDC MAXIMUM

O: OVERTONE

SYMMETRY: 40/60 TO 60/40% AT 50% VCC LEVEL

P: PHASE LOCKED LOOP (PLL) RISE AND FALL TIME: 10 ns MAXIMUM

JITTER: 10 ps PEAK TO PEAK MAXIMUM

CURRENT: 20 mA MAXIMUM (F), 30 mA MAXIMUM (O), 45 mA MAXIMUM (PLL)

LOAD: 2 LS TTL/ACMOS NOMINAL OR 10 LS TTL/ACMOS MAXIMUM GATES

"1" LEVEL: +4.5 VDC MINIMUM

F: FUNDAMENTAL

"0" LEVEL: +0.5 VDC MAXIMUM

O: OVERTONE

SYMMETRY: 40/60 TO 60/40% AT 50% VCC LEVEL

P: PHASE LOCKED LOOP (PLL) RISE AND FALL TIME: 10 ns MAXIMUM

JITTER: 10 ps PEAK TO PEAK MAXIMUM

CURRENT: 20 mA MAXIMUM (F), 30 mA MAXIMUM (O), 45 mA MAXIMUM (PLL)

LOAD: 50 OHMS NOMINAL

OUTPUT LEVEL: 0 dBm MINIMUM

HARMONICS: -25 dBc MAXIMUM

SPURIOUS: -60 dBc MAXIMUM

CURRENT: 20 mA MAXIMUM

HCMOS

1.50 MHz TO 30.00 MHz

36.00 MHz TO 100.00 MHz

40.00 MHz TO 160.00 MHz

ACMOS

1.50 MHz TO 30.00 MHz

36.00 MHz TO 100.00 MHz

40.00 MHz TO 160.00 MHz

SINEWAVE

8.00 MHz TO 40.00 MHz

F: FUNDAMENTAL

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
