ISTS105A
SINGLE CHANNEL SLOTTED
INTERRUPTER SWITCH
WITH TRANSISTOR SENSORS
FEATURES
* NON-CONTACT SWITCHING.
* FOR DIRECT PC BOARD OR DUAL-IN-LINE SOCKET MOUNTING.
* FAST SWITCHING SPEED.
PACKAGE DIMENSIONS
NOTES:
1. All dimensions are in millimeters (inches).
2. Tolerance is
0.25mm(.010") unless otherwise noted.
3. Specifications are subject to change without notice.
ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate, Brenda Road
Hartlepool, Cleveland, TS25 1YD
Tel: (01429) 863609 Fax :(01429) 863581
29/9/10
ISTS105A
ABSOLUTE MAXIMUM RATINGS AT T
A
=25
PARAMETER
INPUT LED
Power Dissipation
Peak Forward Current ( 300 pps , 10
Continuous Forward Current
Reverse Voltage
OUTPUT PHOTOTRANSISTOR
Power Dissipation
Collector-Emitter Voltage
Emitter-Collector Voltage
Collector Current
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[ 1.6mm (.063”) Form Case ]
100
30
5
20
-25
-40
260
to + 85
to + 100
for 5 Seconds
mW
V
V
mA
S pulse
75
1
50
5
mW
A
mA
V
MAXIMUM RATING
UNIT
Part No. : ISTS105A DATA SHEET
Page :
2
of
4
ELECTRICAL OPTICAL CHARACTERISTICS AT T
A
=25
PARAMETER
INPUT LED
Forward Voltage
Reverse Current
OUTPUT PHOTOTRANSISTOR
Collector-Emitter
Breakdown Voltage
Emitter-Collector
Breakdown Voltage
Collector-Emitter
Dark Current
COUPLER
Collector-Emitter
Saturation Voltage
On State Collector Current
VCE(SAT)
Ic(ON)
0.5
0.4
V
mA
IC=0.25mA
IF=20mA
VCE=5V
IF=20mA
V(BR)
CEO
V(BR)
ECO
ICEO
30
5
100
V
V
nA
IC=1mA
IE=100
A
VF
1.2
1.6
100
V
A
I
F
= 20mA
VR=5V
SYMBOL
MIN.
TYP.
MAX. UNIT TEST CONDITION
VCE=10V
Part No. : ISTS105A DATA SHEET
Page :
3
of
4

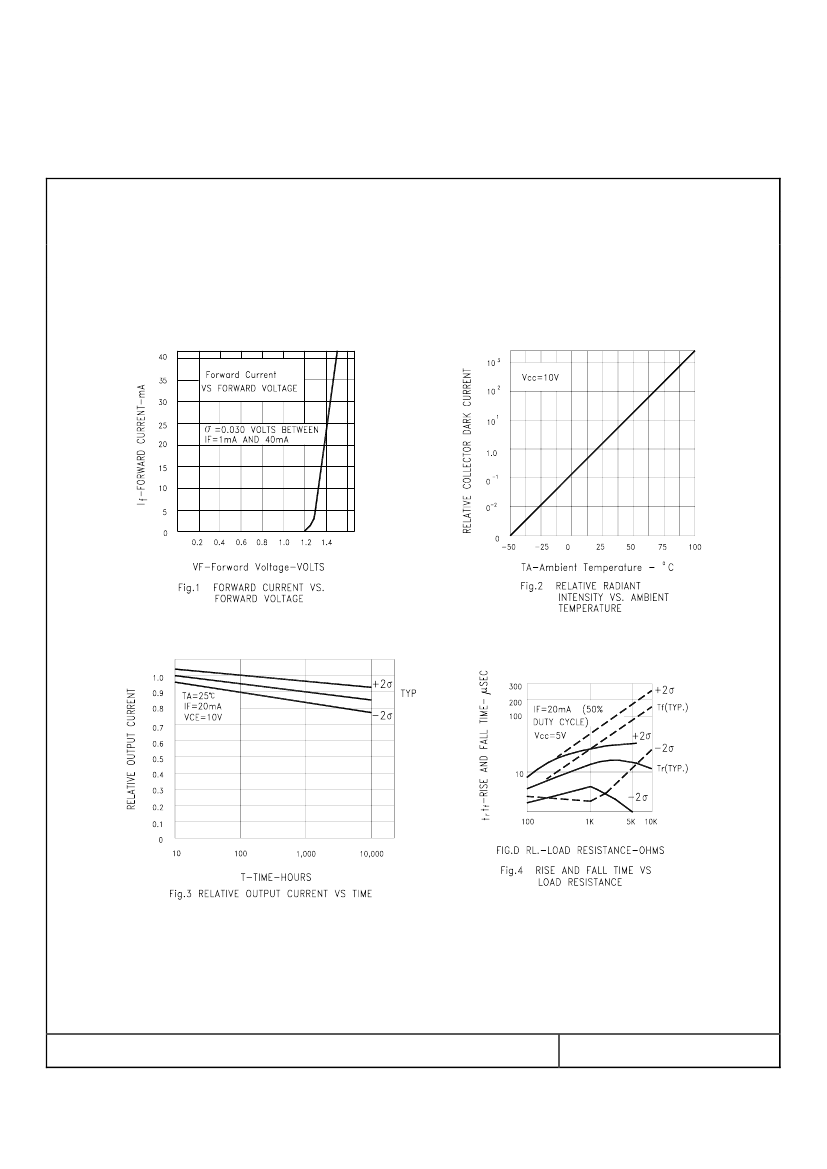

TYPICAL ELECTRICAL / OPTICAL CHARACTERISTICS CURVES
(25
Ambient Temperature Unless Otherwise Noted)
Part No. : ISTS105A DATA SHEET
Page :
4
of
4
