8D509Z98PCL

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size313KB,2 Pages
ManufacturerSOURIAU
Download Datasheet Parametric View All

8D509Z98PCL Overview

MIL Series Connector,

8D509Z98PCL Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Aluminium
: Black Zinc Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
ØS
21.8 Max
Z
31 Max
VV THREAD
M12x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered without Souriau contacts
-Temperature Range
-Salt Spray
-Mass
: -65°C to +175°C
: 500 hours
: 11.05 g ± 10%
PN: 8D509Z98PCL
A
ISS
15-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°

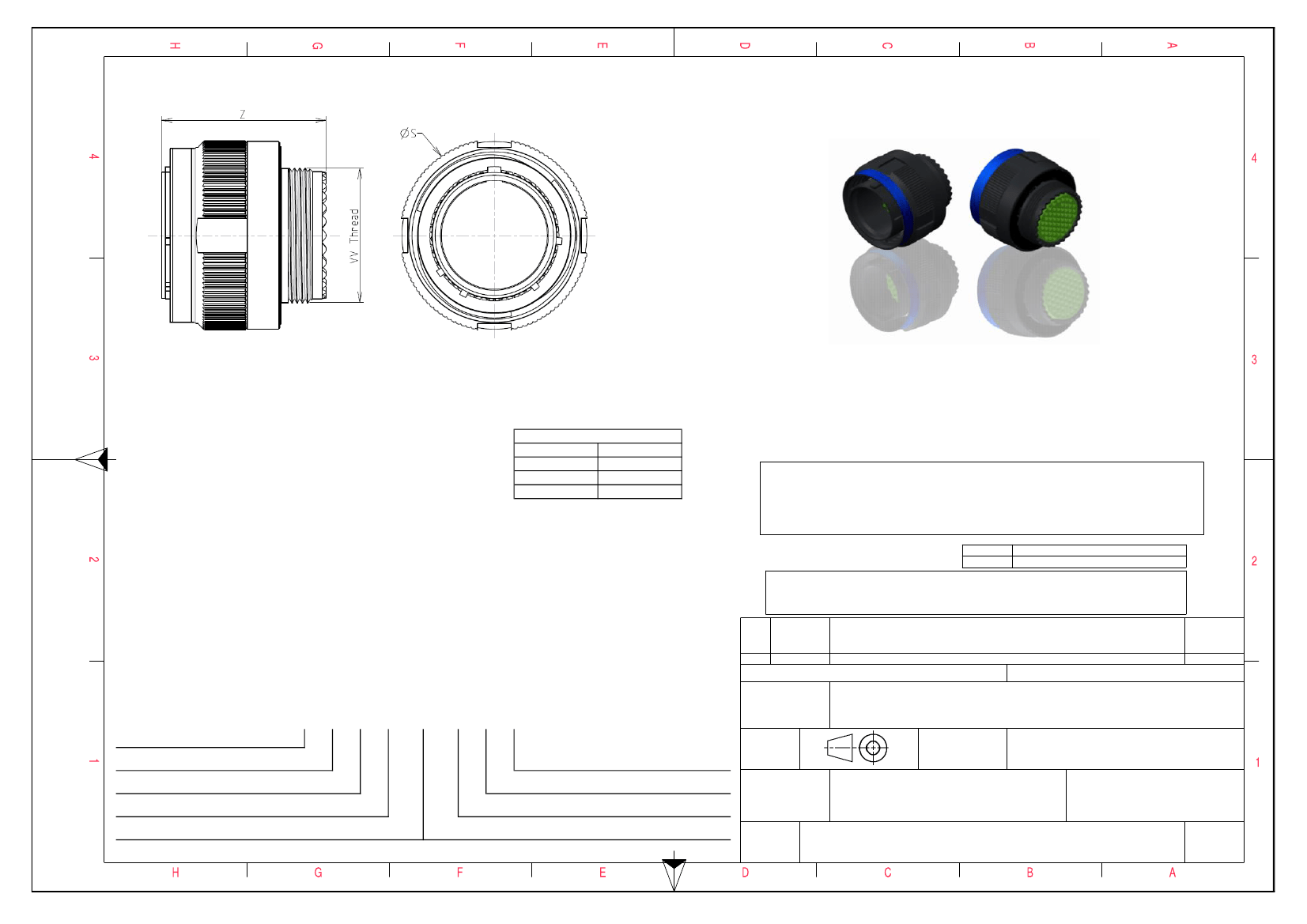

CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : Plug with RFI Shielding
CONTACT TYPE
SHELL SIZE : 09
PLATING
:
Z =
Black Zinc Nickel
: Standard Crimp Contact
8D
5
-
09
Z
98
P
C
L
Delivered W/O Contacts
ORIENTATION : C
CONTACT TYPE : PIN(500 Matings)

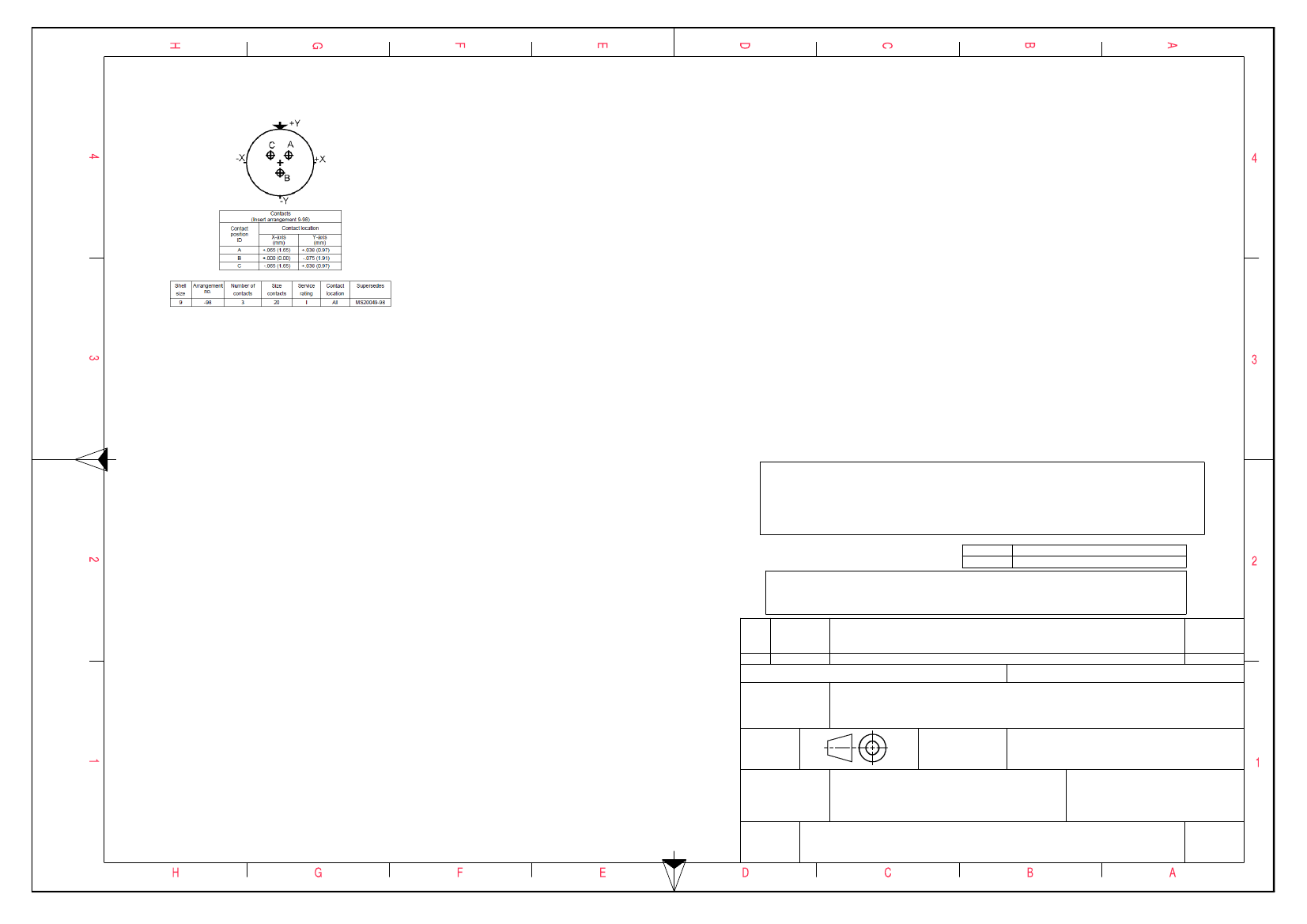

CONTACT LAYOUT : 09-98
FORMAT
Aluminium Plug 8D series
General linear
Tolerances:
±--
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D509Z98PCL-C
SHEET
1/2
