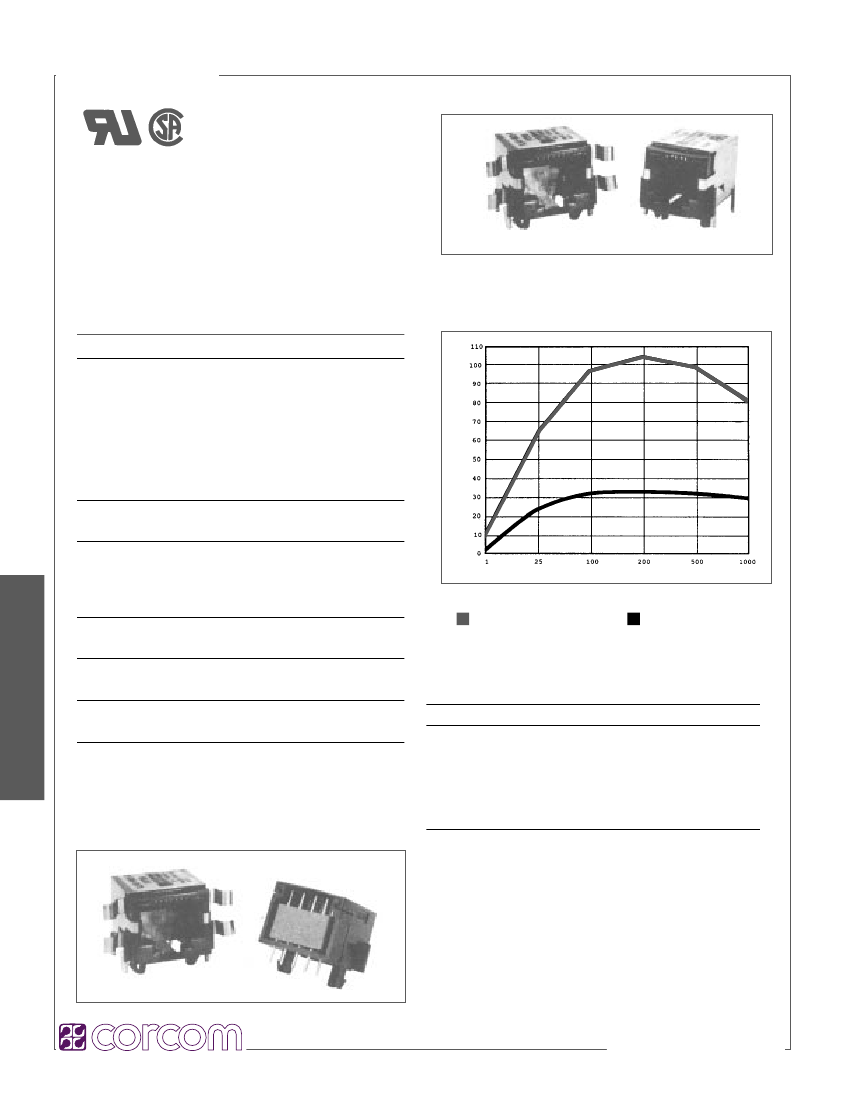

N
Series
UL Recognized
CSA Certified
Low profile version of our Signal Sentry series. Available
with sleeve or block inductors and optional grounded
shielding. Grounded shielding allows connection to
grounded cables for additional RFI protection.
Specifications
Contacts
Material:
Plating:
Barrier underplating:
Resistance:
Initial:
After durability testing
(500 mating cycles):
PCB Terminals
Solderability
Ferrites
Type:
Sleeves:
Block:
Phosphor bronze
50 microinches gold
100 microinches nickel
20 milliohms maximum
30 milliohms maximum
60/40
High resistivity, nickel zinc ceramic
Single-aperature cylinders
Multi-aperature rectangular prism
Typical Impedance in Ohms
Impedance in Ohms
Frequency MHz
Shield Material
Solder-plated phosphor bronze
Housing Material
Black glass-filled polyester
(Valox 457)
Ferrite block
Ferrite sleeve
Pricing
Consult your local Corcom sales representative for pricing.
Part No.
RJ11-6N-B
RJ11-6N-S
RJ11-6N3-B
RJ11-6N3-S
RJ11-6N4-B
RJ11-6N4-S
Part No.
RJ45-8N-B
RJ45-8N-S
RJ45-8N3-B
RJ45-8N3-S
RJ45-8N4-B
RJ45-8N4-S
Dielectric Withstanding Voltage
Line-to-line and line-to-ground 1000VAC for 60 seconds
Printed Circuit Board Retention
Before soldering:
After soldering:
1 lb. minimum
20 lb. minimum
N
128
Model dimensions and PC board layout on pages 131 to 133.
Libertyville, IL (847) 680-7400
