RJC06
Series
TOCOS
POTENTIOMETERS
®

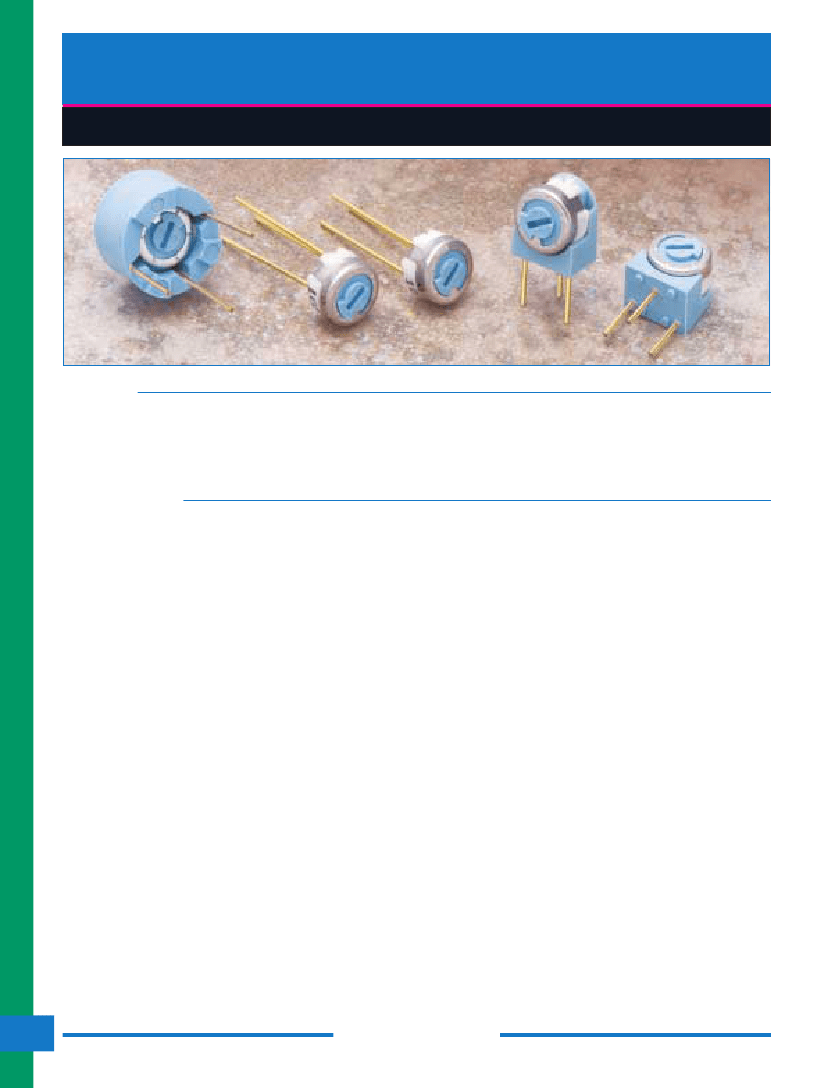

1/4” Round, Single-Turn, Through-Hole Sealed Cermet Trimmers
Features
1/4” round, single-turn, through-hole, sealed cermet trimmers
Top, side and bottom adjust models
10mm diameter housing for bottom adjust model
High setting stability with precious metal multi-contacts
Low noise and low TC
Gold flushed terminals for superior solderability and longer shelf life
PC board stand-offs
Meets UL 94V-0 flammability requirements
Sealed to withstand wave soldering and immersion cleaning
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . . 10Ω to 1MΩ
(standard 1, 2 & 5 sequence )
Resistance Tolerance
. . . . . . . . . . . . . . .
10% and
20%
End Resistance
. . . . . . . . . . 1% or 3Ω, whichever is greater
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear
Peak Noise (C.R.V.)
. . . . . . . 1% or 1Ω, whichever is greater
Power Rating
. . . . . . . . 0.5 watt at
70 C, 0 watt at
125 C
Maximum Input Voltage
. . . . . . . . 250VDC or power rating,
whichever is smaller
Temperature Coefficient
. . . .
100 ppm / C, 200Ω to 1MΩ
250 ppm / C, other values
Environmental
Temperature Range
. . . . . . . . . . . . . . . . .
55 C to
125 C
High Temperature Exposure
. . . . . . . . . 125 C, 250 hours
∆T/R
)
3%, S.S.
)
1%
Load Life
. . . . . . . . . . . . . . . . .
70 C, 0.5 watt, 1,000 hours
∆T/R
)
3%, S.S.
)
3%
Thermal Shock
. . . . . . . . . . . . . . . . . . . . . . 55 C, 125 C,
30 minutes each, 5 cycles
∆T/R
)
2%, S.S.
)
1%
Shock
. . . . . . . . . . . . . 50G, 6ms, 6 directions, 3 times each
∆T/R
)
2%, S.S.
)
1%
Vibration
. . . . . . . . . . . . . . . . 10-2,000Hz, 1.5mm amplitude,
20G, 12 hours
)
1%, S.S.
)
1%
∆T/R
Humidity
. . . . . . . . . . . . . . . . . . . . . . . .
40 C, 90-95%RH,
0.5 watt, 500 hours
∆T/R
)
5%, S.S.
)
1%
Insulation Resistance
. . . . . . 100MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . 500VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 240
10
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 250
10
Shaft Torque
. . . . . . . . . . . . . . 200 gf
•
cm (2.77 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . . 500 gf
•
cm (6.93 oz
•
in) min.
Flammability of Plastic Materials
. . . . . . . Meets UL 94V-0
Nominal Weight
. . . . . . . . 0.5g (P, W ); 0.6g (S, X ); 1.03g (F )
Marking
. . . . . . . . . . . . . . . . . . . Resistance code, date code
Moisture Resistance
. . . . . .
10 C to 65 C, 80-98%RH,
0.5 watt, 10 cycles, 240 hours
∆T/R
)
3%
Soldering Heat Resistance
. . . . . . . . . . . 350 C, 3 seconds
∆T/R
)
1%
Seal Test
. . . . . . . . . . . . . . . . . 85 C, hot water for 1 minute
Rotational Life
. . . . . . . . . . 200 cycles without discontinuity
∆T/R
)
10%)
∆T/R
= Total Resistance Change; S.S. = Setting Stability ( voltage ratio )
40
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
RJC06 Series
RJC06P
P Terminal Style, Single-Slot, Top Adjust

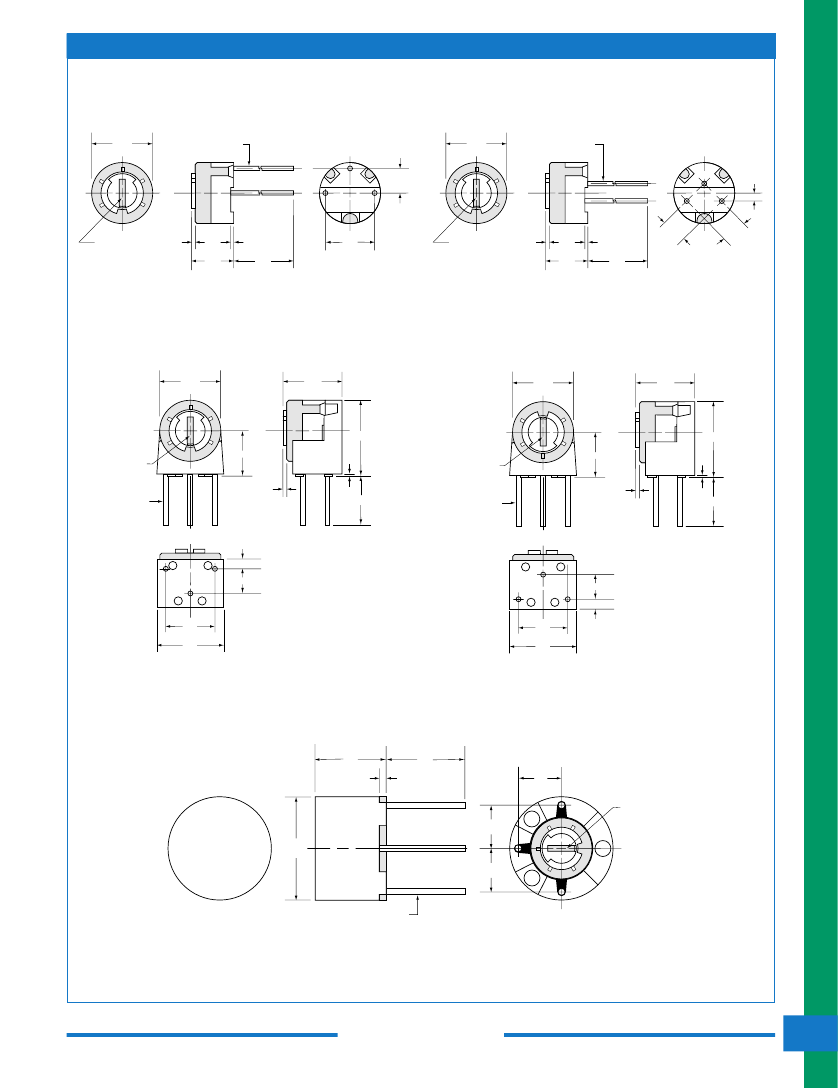

Dimensions
RJC06W
W Terminal Style, Single-Slot, Top Adjust
Unit: mm
Ø
6.2
0.2
Ø
0.5
0.1
(3)
Ø
6.2
0.2
Ø
0.5
0.1
(3)
#2
#3
#1
2.5
0.3
#2
0.8
#3
2.5
0.3
#1
2.5
0.3
SLOT
0.6W 2.6L
0.4
0.8D
4.3
0.5
0.3
15.0
2.0
5.0
0.3
SLOT
0.6W 2.6L
0.4
0.8D
4.3
0.5
0.3
15.0
2.0
RJC06S
S Terminal Style, Single-Slot, Side Adjust
RJC06X
X Terminal Style, Single-Slot, Side Adjust
Ø
6.2
0.2
6.0
0.5
Ø
6.2
0.2
6.0
0.5
7.7
4.5
0.6W
SLOT
2.6L 0.8D
0.4
Ø
0.5
0.1
(3)
0.3
0.3
7.7
4.5
0.6W
SLOT
2.6L 0.8D
0.4
0.2
5.0
0.3
0.3
0.2
5.0
1.0
Ø
0.5
0.1
(3)
1.0
#1
#2
#3
1.0
#3
#2
#1
2.5
0.2
2.5
0.2
5.0
0.3
5.0
0.3
1.0
6.8
0.2
6.8
0.2
RJC06F
F Terminal Style, Single-Slot, Bottom Adjust
7.2
1.0
8.0
1.0
0.7
4.4
0.3
#3
4.4
0.3
3
SLOT
0.6W 2.6L
0.8D
Ø
10.5
Max.
#2
4.4
0.3
2
#1
Ø
0.5
0.1
(3)
1
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
41
RJC06 Series
P & S
Pin-Out
Recommended PCB Layouts
W
Pin-Out
Ø
1.0
X
Pin-Out
max.
(3 holes)
#3
F
Pin-Out
4.4
4.4
#3
4.4
#2
Unit: mm
#2
#1
Ø
1.0
#2
#3
2.5
#1
5.0
#1
2.5
#1
Ø
3.0
Ø
1.0
#3
max.
(3 holes)
5.0
2.5
2.5
max.
(3 holes)
#2
Ø
1.0
max.
(3 holes)
Electrical Schematic
clockwise
ccw
#1
#3
cw
#2
wiper

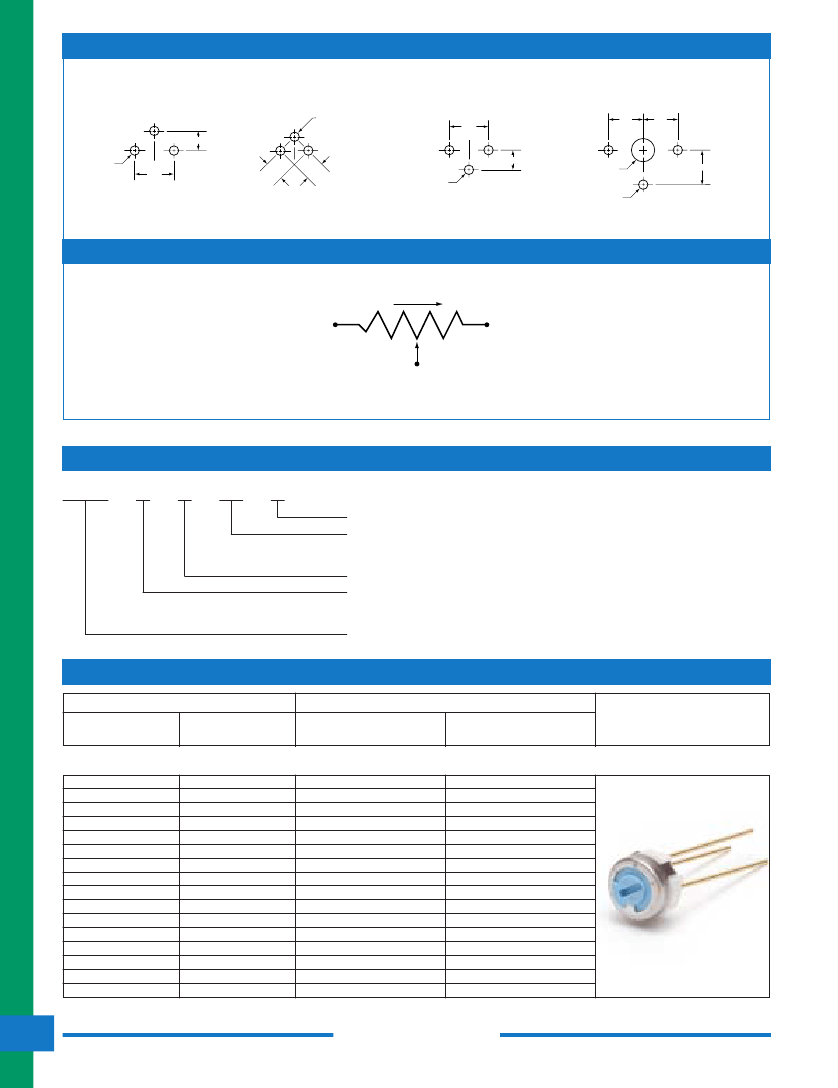

Part Numbering System
RJC06
P
B
102
K
Resistance Tolerance: K = 10%; M = 20%
Resistance Code: Expressed in ohms. A three digit code where the first two digits
are significant figures, and the third digit indicates the number of zeros that follow
these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω; 105 = 1,000,000Ω ).
Resistance Taper: B = Linear.
Terminal Style: P, W = 3-Lead Configurations, Top Adjust.
S, X = 3-Lead Configurations, Side Adjust.
F = 3-Lead Configuration, Bottom Adjust.
TOCOS Series Name.

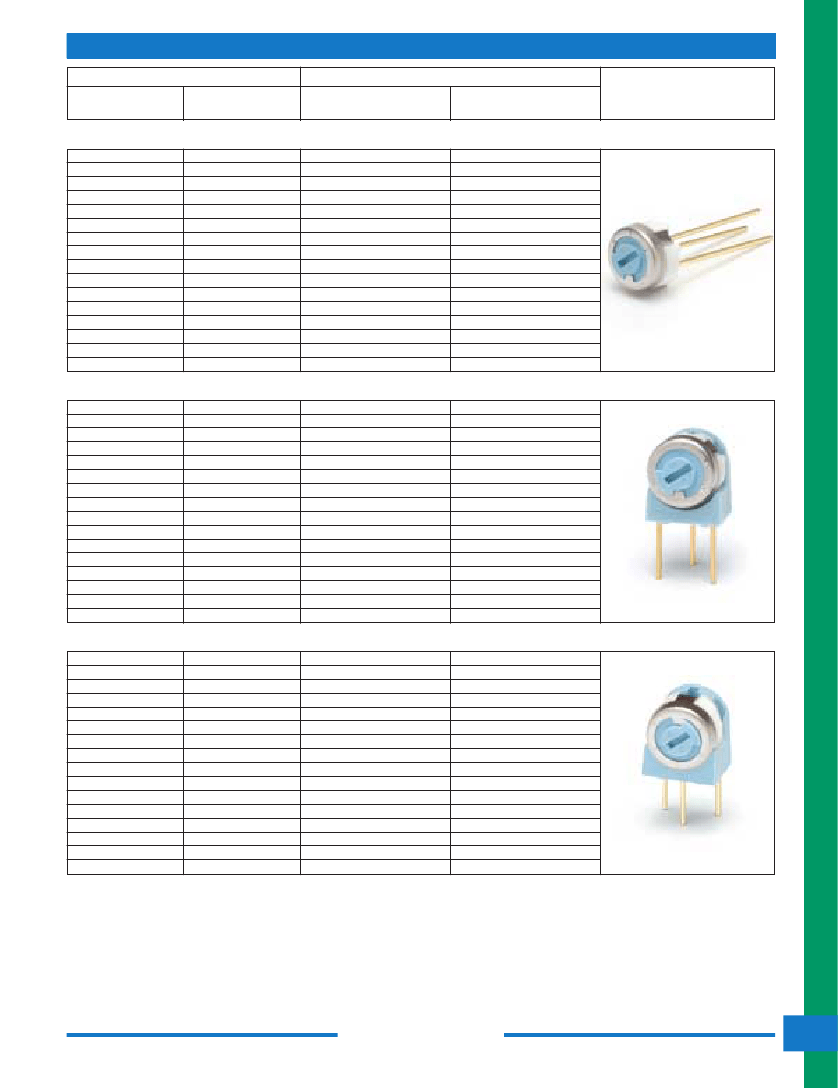

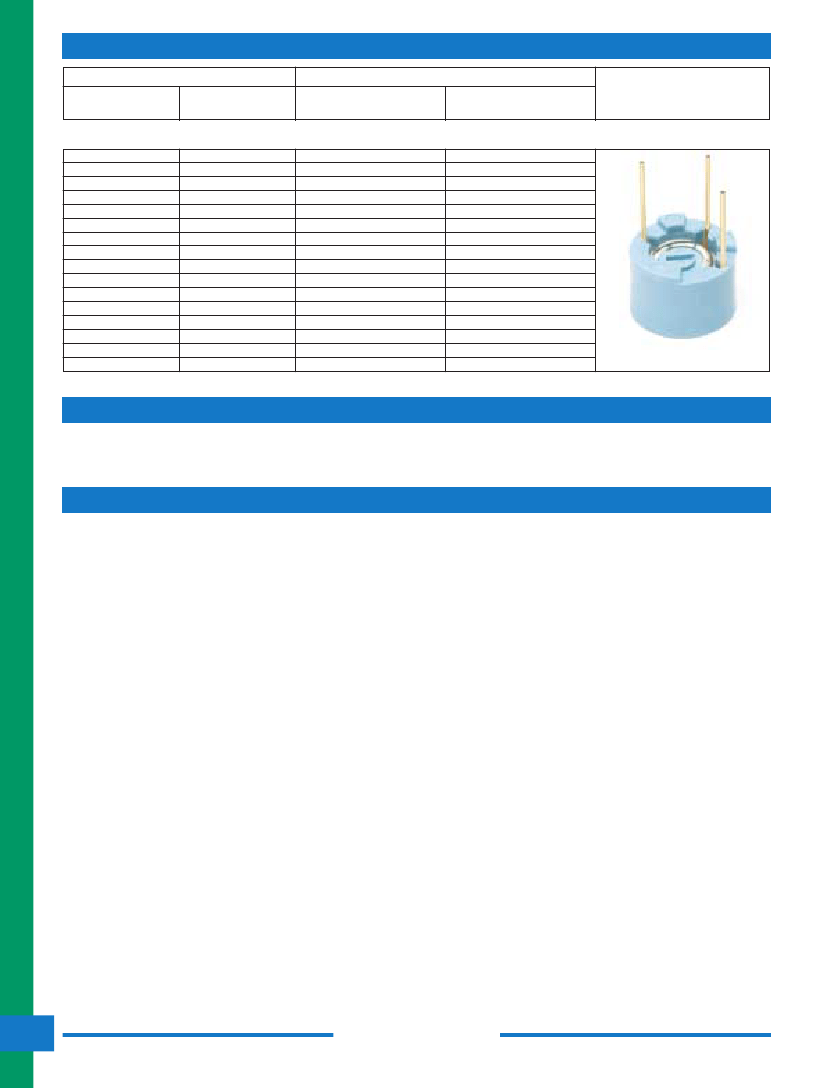

Part Numbers
Nominal Resistance
Value (
Ω
)
Code
Catalog No. Bulk
Resistance
Tolerance 10%
Resistance
Tolerance 20%
Potentiometer
Styles
RJC06P
Through-Hole, P Terminal Style, Single-Slot, Top Adjust
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
RJC06P
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
RJC06P
42
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
