ARS-02-SELPJ-24-SG: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

ARS-02-SELPJ-24-SG Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

ARS-02-SELPJ-24-SG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.234 inch
subject depth	0.319 inch
body length	1.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
Manufacturer's serial number	ARS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

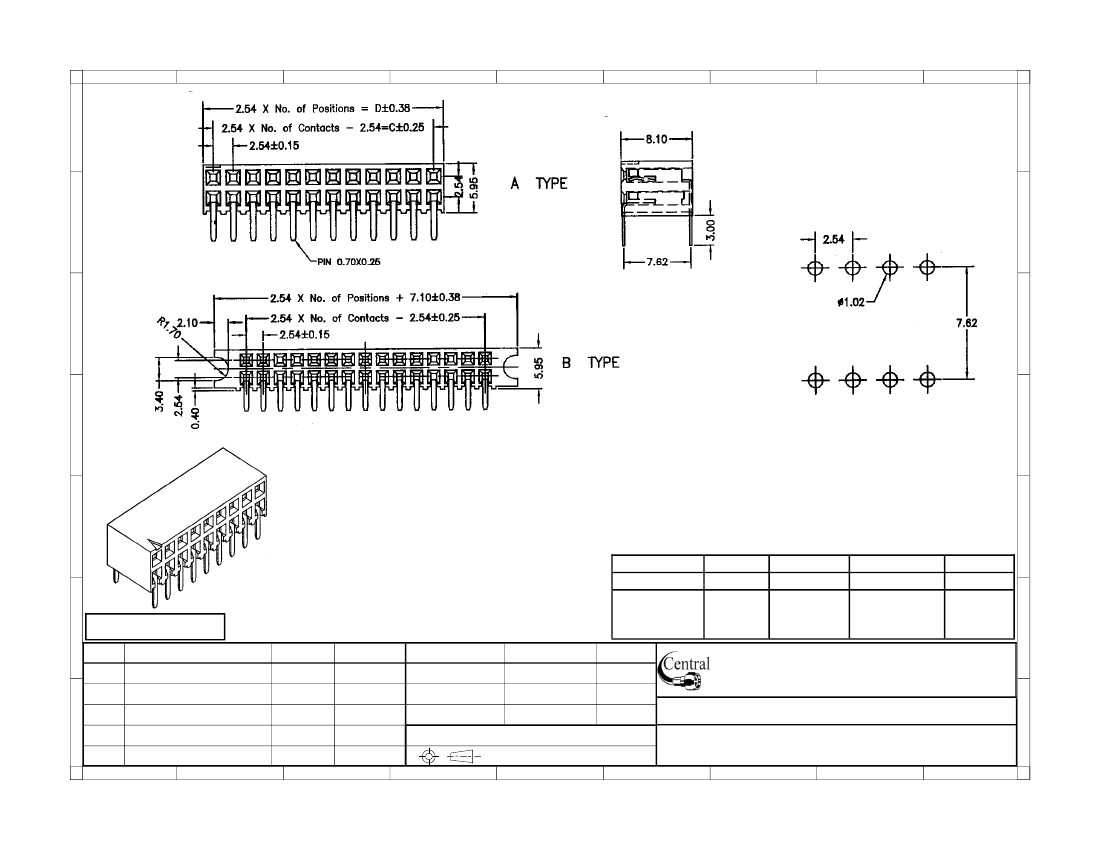

Recommended PC Board

Hole Layout

B

C

D

E

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulation resistance:

Withstanding:

Operating temperature:

3 amps

Copper alloy

Gold contacts, tin tails

20 milliohms max.

Glass filled polyester, UL94V-0

1,000 megohms min.

600VAC for 1 min.

-40°C to +105°C

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Series

Rows

ARS

02

Receptacle strip 01=Single

.100” pitch

02=Dual

Profile

SELPJ

Side entry

8.1mm wide

5.95mm high

Positions

Plating

XX

Single row: 2-40 GD=Gold

Dual row: 4-80

TN=Tin

SG=Duplex

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

ARS-02-SELPJ-XX-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Receptacle strip, .100” pitch, dual row, side entry

G

ARS-02-SELPJ-24-SG Related Products

	ARS-02-SELPJ-24-SG	ARS-02-SELPJ-74-SG	ARS-02-SELPJ-30-SG	ARS-02-SELPJ-44-SG	ARS-02-SELPJ-16-SG	ARS-02-SELPJ-48-SG	ARS-02-SELPJ-72-SG
Description	Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 74 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 30 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 48 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 72 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch
subject depth	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch
body length	1.2 inch	3.7 inch	1.5 inch	2.2 inch	0.8 inch	2.4 inch	3.6 inch
