SPECIFICATIONS
Current rating:
3 amps
Operating voltage:
250 VAC
Contact material:
Phosphor bronze
Contact plating:
Tin, gold or duplex
Contact resistance:
10 milliohms max.
Insulator material:
Nylon 6T, glass reinforced, UL94V-0
Insulator resistance:
1,000 megohms min
Withstanding:
1,000VAC for 1 min.
Operating temperature: -55˚C to +125˚C
Processing temperature: 230°C/60 sec.
C
Optional Peg
E
D
D
RoHS compliant
E
Series
Insulator
BPH
X
2mm Unshrouded Blank=.079 (2.0mm)
Pin Headed
C=.059 (1.5mm)
Rows
X
1,2
F
Type
Positions
XX
XX
Blank=Straight
Single Row: 1-40
RA=Right Angle
Double Row: 2-80
RRA=Reverse Right Angle
SM=Surface Mount
RASM=R/A Surface Mount
Contact Length
XX
SD=.157 (4mm) Mating
CSL=(A) or (A/E)
Plating
XX
GD=Gold
SG=Selective Gold
TN=Tin
Options
XX
Blank=None
CP=Centering Peg
PPL=Pick & Place Pad
TR=Tape & Reel
TB=-Tube
E
F
G
Rev.
A
B
C
D
1
Description
RoHS
Spec
DWG
PNT
2
Date
09/23/05
10/04/05
07/25/12
8/02/12
Approved
Tom
Tom
Greg
Greg
3
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
4
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919

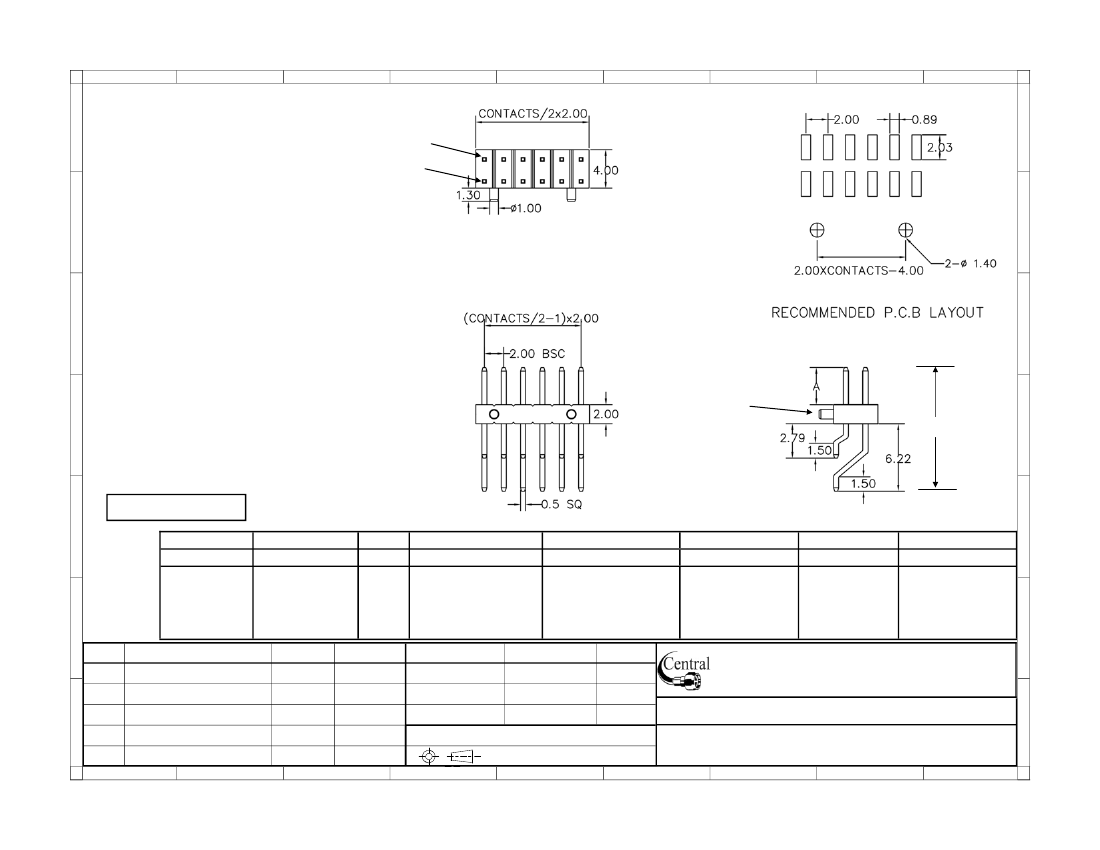

BPH-2-RASM-XX-XX-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Pin header, 2mm pitch, right angle, surface mount
