DS09-FM-D-YC-03-30GD datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DS09-FM-D-YC-03-30GD

Preview

DS09-FM-D-YC-03-30GD: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DS09-FM-D-YC-03-30GD Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

DS09-FM-D-YC-03-30GD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.496 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	100 °C
Minimum operating temperature	-50 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	YELLOW CHROMATE
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulation material:

Insulation resistance:

Shell material:

Shell plating:

Withstanding:

Temperature range:

A

5 amps

Brass, machined

Gold flash

15 milliohms max.

PBT + 30% glass fiber, UL94V-0

1,000 megohms max.

Steel

Tin or yellow chromate

500VAC for 1 min.

-50°C to +100°C

B

C

D

E

Pos.

09

15

25

37

50

Series

Type

DSXX

FM

XX=Pins FM=Machined pin, R/A female

9, 15, 25, MM=Machined pin, R/A male

37, 50

Date

Approved

A

30.80

39.15

53.00

69.30

67.00

Dimensions

B

C

24.99 16.30

33.32 24.65

47.04 38.40

63.50 54.80

61.00 52.20

D

F

7.20/9.40

E

F

RoHS compliant

Rev.

Description

Footprint

Shell Plating

Mounting

Options

X

XX

A=.283” TN = Tin

01=#4-40 jackscrews w/bracket (.545” only) [blank]=None

B=.545” YC=Yellow chromate 02=.118” through-hole

BK=Black insulator

D=.370”

03=Riveted clinch nut

30GD=30µ” gold

Date

08/10/99

08/10/99 Part No.:

F

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

DSXX-FM-X-XX-03-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

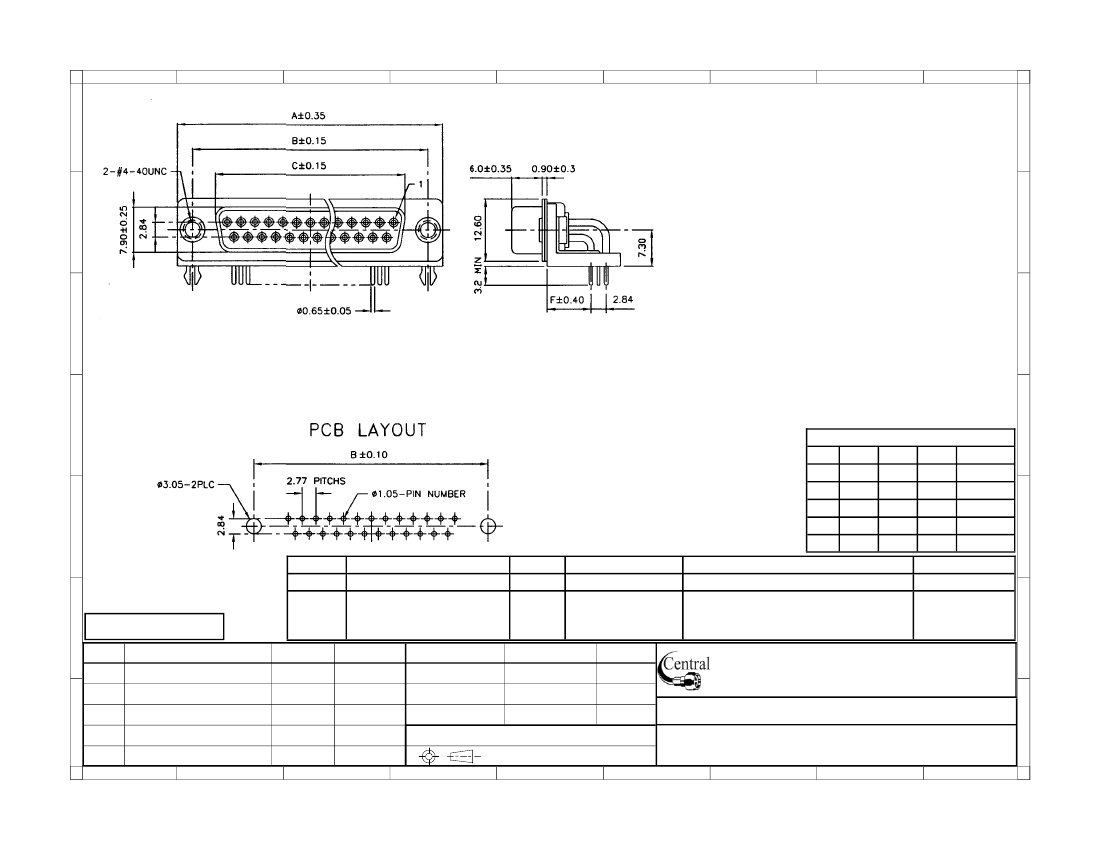

Description: D-subminiature connector, right-angle, female, ma-

chined-pin, board locks

G

1

2

3

4
