B065-0242-117-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B065-0242-117-Z

B065-0242-117-Z: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size247KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B065-0242-117-Z Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

B065-0242-117-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.435 inch
body length	1.224 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	B065
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

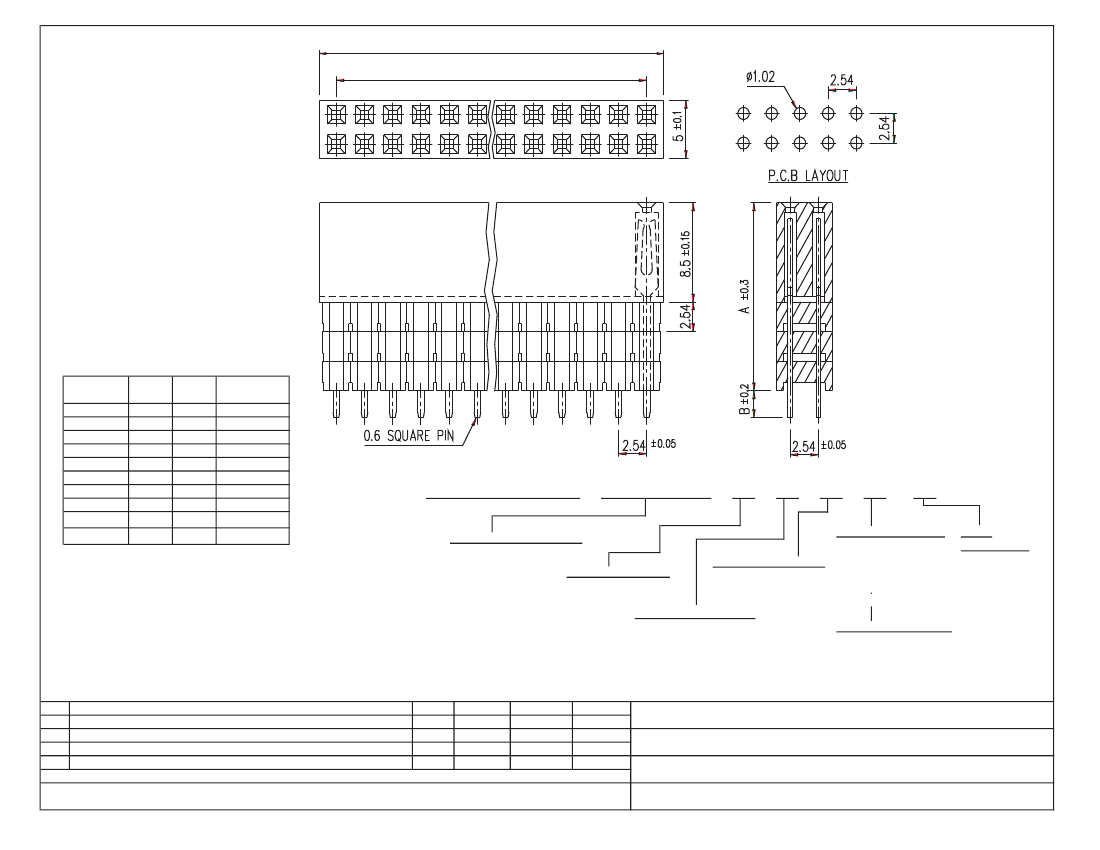

((NO. OF POSITION/2) x 2.54) + 0.6 ±0.4

((NO. OF CONTACTS/2) -1) x 2.54

DIMENSION(mm)

DIMENSION

NUMBER

11.05

13.59

16.13

18.67

11.05

16.13

2.30

7.35

12.20

4.85

9.65

2.30

7.10

4.60

2.90

3.50

NUMBER

OF STACKS

NOTE:

4 STACK PART SHOWN

HOW TO ORDER:

ELECTRICAL:

NUMBER OF CONTACTS:

006 thru 080

CURRENT RATING: 3A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: - 40° C TO +105° C

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

CONTACT: PHOSPHOR BRONZE

Rev

Issued

A Revised for RoHS Compliance

SCALE

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/-

PLATING OVERALL: RoHS

0 - FULL TIN

COMPLIANT

1 - FULL Au FLASH

DIMENSION NUMBER:

NUMBER OF ROWS:

3 - 10u" Au

SEE DIMENSION

2 - DOUBLE ROW

4 - 15u" Au

NUMBER TABLE

5 - 30u" Au

NUMBER OF STACKS:

SELECTIVE PLATING:

0 - RIGHT ANGLE

6 - Au FLASH CONTACT AREA/TIN TAIL

1 - ONE

7 - 10u" Au CONTACT AREA/TIN TAIL

2 - TWO

8 - 15u" Au CONTACT AREA/TIN TAIL

3 - THREE

9 - 30u" Au CONTACT AREA/TIN TAIL

4 - FOUR

Date

11/04/03

8/9/07

Drawn Checked Approved

A.M.

S.M.

B.S.

S.M.

FINISH

ANGLE +/-

SMP TECHNOLOGY, INC.

Elevated Stacked Receptacle Assembly, 2.54mm Pitch, Double Row

Thru Hole, Top Entry (11.05mm - 18.67mm Stacking Height)

UNIT: mm

P/N: B065-0XX2-XXX-Z

Pg: 1
