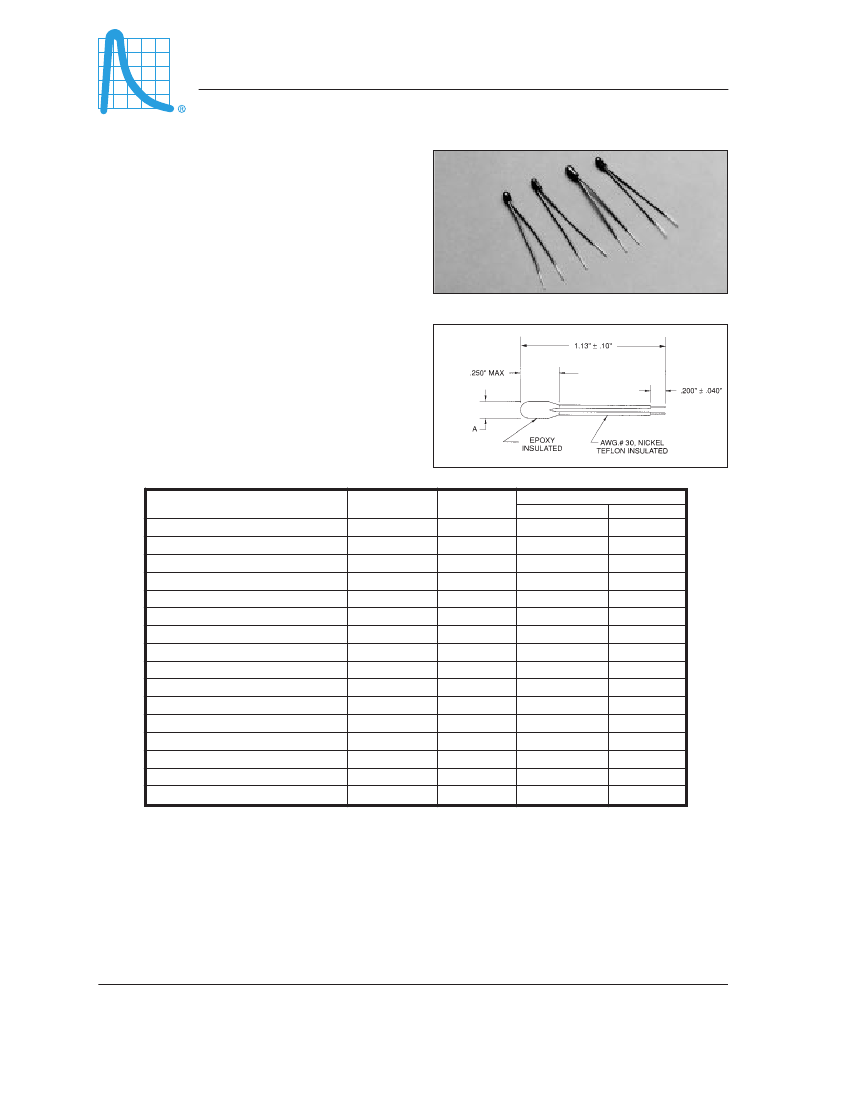

NTC THERMISTORS:
TYPE MS
EPOXY COATED THERMISTOR
DESCRIPTION:
Epoxy coated point-matched disc thermistors with
.010" nickel PTFE insulated lead-wires.
FEATURES:
•
Low cost solid state sensor
•
Standard resistance tolerances down to ±2%
•
High sensitivity to changes in temperature
•
Suitable for temperature measurement,
control and compensation
•
Excellent mechanical strength
•
Wide operating temperature range: -50°C to 150°C
•
Suitable for PCB and probe mountings
•
Available in a wide range of material systems
•
Overall lengths from 18mm to 78mm
(0.71" to 3.07")
TYPE NUMBER
RL0703-624-73-MS
RL0503-1248-73-MS
RL0703-1445-95-MS
RL0503-2890-95-MS
RL0703-2910-97-MS
RL0703-3720-84-MS
RL0503-5820-97-MS
RL0703-5744-103-MS
RL0503-7440-84-MS
RL0703-8780-96-MS
RL0503-11.49K-103-MS
RL0703-13.77K-120-MS
RL0503-17.56K-96-MS
RL0503-27.53K-120-MS
RL0703-27.68K-122-MS
RL0503-55.36K-122-MS
Ro@25C
(Ohms)
1K
2K
2.5K
5K
5K
6K
10K
10K
12K
15K
20K
25K
30K
50K
50K
100K
Material
System
D7.3
D7.3
D9.5
D9.5
D9.7A
D8.4
D9.7A
D10.3
D8.4
F9.61
D10.3
D12.0
F9.61
D12.0
D12.2
D12.2
A
(in.)
0.120
0.095
0.120
0.095
0.120
0.120
0.095
0.120
0.095
0.120
0.095
0.120
0.095
0.095
0.120
0.095
(mm.)
3.05
2.41
3.05
2.41
3.05
3.05
2.41
3.05
2.41
3.05
2.41
3.05
2.41
2.41
3.05
2.41
OPTIONS:
•
Other resistances in the range 2kΩ to 100kΩ
•
Other tolerances, tolerances at other
temperatures
•
Alternative lead lengths, lead materials,
insulations
•
For ±5% @ 25°C, replace “MS” with “MS5”
•
For ±3% @ 25°C, replace “MS” with “MS3”
•
For ±2% @ 25°C, replace “MS” with “MS2”
BOWTHORPE THERMOMETRICS
Crown Industrial Estate, Priorswood Road
Taunton, Somerset TA2 8QY UK
Tel +44 (0) 1823 335200
Fax +44 (0) 1823 332637
DATA:
Temperature Accuracy.................
±1°C @ 25°C
Dissipation Constant........................
1.4 mW/°C
Time Constant.......................................
15 sec.
Operating Range
....................... -50°C to 150°C
THERMOMETRICS, INC.
808 US Highway 1
Edison, New Jersey 08817-4695 USA
Tel +1 (732) 287 2870
Fax +1 (732) 287 8847
KEYSTONE THERMOMETRICS CORPORATION
967 Windfall Road
St. Marys, Pennsylvania 15857-3397 USA
Tel +1 (814) 834 9140
Fax +1 (814) 781 7969
