RoHS Compliant SMPS Stacked
MLC Capacitors
(RM Style) Technical Information on SMPS Capacitors
ELECTRICAL SPECIFICATIONS
Temperature Coefficient
C0G: A Temperature Coefficient - 0 ±30 ppm/°C, -55° to +125°C
X7R: C Temperature Coefficient - ±15%, -55° to +125°C
Z5U: E Temperature Coefficient - +22, -56%, +10° to +85°C
Capacitance Test
(MIL-STD-202 Method 305)
C0G: 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz
X7R: 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz
Z5U: 25°C, 0.5 Vrms max (open circuit voltage) at 1KHz
Dissipation Factor 25°C
C0G: 0.15% Max @ 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz
X7R: 2.5% Max @ 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz
Z5U: 3.0% Max @ 25°C, 0.5 Vrms max (open circuit voltage) at 1KHz
Insulation Resistance 25°C
(MIL-STD-202 Method 302)
C0G and X7R: 100K MΩ or 1000 MΩ-μF, whichever is less.
Z5U: 10K MΩ or 1000 MΩ-μF, whichever is less.
Insulation Resistance 125°C
(MIL-STD-202 Method 302)
C0G and X7R: 10K MΩ or 100 MΩ-μF, whichever is less.
Z5U: 1K MΩ or 100 MΩ-μF, whichever is less.
Dielectric Withstanding Voltage 25°C
(Flash Test)
C0G and X7R: 250% rated voltage for 5 seconds with 50 mA max
charging current. (500 Volt units @ 750 VDC)
Z5U: 200% rated voltage for 5 seconds with 50 mA max charging
current.
Life Test
(1000 hrs)
C0G and X7R: 200% rated voltage at +125°C. (500 Volt units @
600 VDC)
Z5U: 150% rated voltage at +85°C
Moisture Resistance
(MIL-STD-202 Method 106)
C0G, X7R, Z5U: Ten cycles with no voltage applied.
Thermal Shock
(MIL-STD-202 Method 107, Condition A)
Immersion Cycling
(MIL-STD-202 Method 104, Condition B)
Resistance To Solder Heat
(MIL-STD-202, Method 210,
Condition B, for 20 seconds)
Typical ESR Performance (mΩ)
ESR @ 10KHz
ESR @ 50KHz
ESR @ 100KHz
ESR @ 500KHz
ESR @ 1MHz
ESR @ 5MHz
ESR @ 10MHz
Aluminum
Electrolytic
100μF/50V
300
285
280
265
265
335
560
Low ESR
Solid Tantalum
100μF/10V
72
67
62
56
56
72
91
Solid Aluminum
Electrolytic
100μF/16V
29
22
20
18
17
17
22
MLCC
SMPS
100μF/50V
3
2
2.5
4
7
12.5
20
MLCC
SMPS
4.7μF/50V
66
23
15
8
7.5
8
14
HOW TO ORDER
RM0
AVX Style
RM0 = Uncoated
RM5 = Epoxy
Coated
AVX Styles: RM-1, RM-2, RM-3, RM-4, RM-5, RM-6
7
C
106
M
Capacitance
Tolerance
C0G:
J = ±5%
K = ±10%
M = ±20%
1
A
Test Level
A = Standard
N
Termination
N = Straight Lead
J = Leads formed in
L = Leads formed out
P = P Style Leads
Z = Z Style Leads
650
Height
Max
Dimension “A”
120 = 0.120"
240 = 0.240"
360 = 0.360"
480 = 0.480"
650 = 0.650"
Size
Voltage Temperature
Capacitance
See
50V = 5
Coefficient
Code
Dimensions 100V = 1
C0G = A
(2 significant digits
chart
200V = 2
X7R = C
+ number of zeros)
500V = 7
Z5U = E
10 pF = 100
100 pF = 101
1,000 pF = 102
22,000 pF = 223
220,000 pF = 224
1μF = 105
10 μF = 106
100 μF = 107
X7R:
K = ±10%
M = ±20%
Z = +80%, -20%
Z5U:
M = ±20%
Z = +80%, -20%
P = GMV (+100, -0%)
Note: Capacitors with X7R and Z5U dielectrics are not intended for applications
across AC supply mains or AC line filtering with polarity reversal. Contact plant
for recommendations.
1
RoHS Compliant SMPS Stacked
MLC Capacitors
(RM Style) Surface Mount and Thru-Hole Sytles (RM0, RM5)

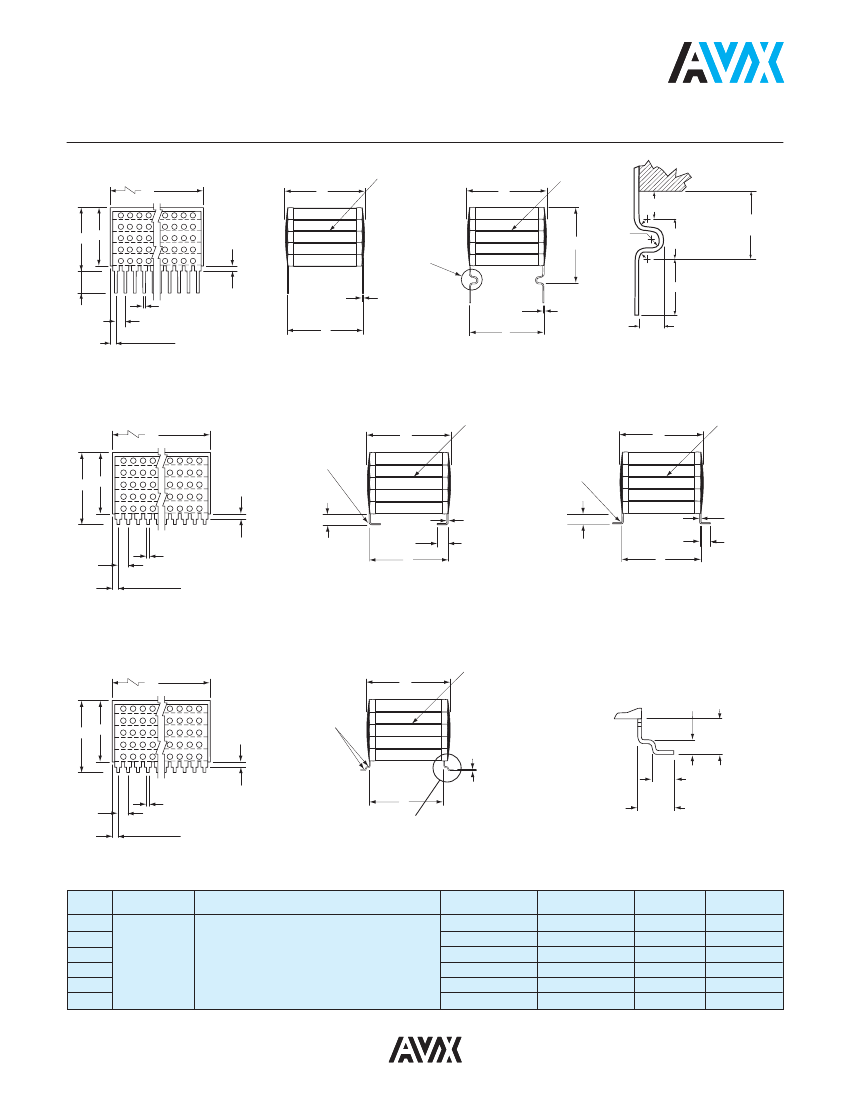

CHIP SEPARATION
0.254 (0.010) TYP.
CHIP SEPARATION
0.254 (0.010) TYP.
E
CAPACITOR
D
E
1.651 ± 0.254
(0.065 ± 0.010)
B
A
1.397 (0.055)
±0.254
(0.010)
DETAIL A
B
R 0.508
(0.020)
3 PLACES
2.540 ± 0.254
(0.100 ± 0.010)
4.191 ± 0.254
(0.165 ± 0.010)
6.350 (0.250) MIN
6.35
(0.250)
MIN.
0.508 (0.020) TYP.
2.54 (0.100) TYP.
2.54 (0.100) MAX.
0.635 (0.025) MIN.
C
0.254
(0.010)
TYP.
C
0.254
(0.010)
TYP.
1.016 ± 0.254
(0.040 ± 0.010)
DETAIL A
“N” STYLE LEADS
“P” STYLE LEADS
CHIP SEPARATION
0.254 (0.010) TYP.
CHIP SEPARATION
0.254 (0.010) TYP.
E
D
0.254 (0.010)
RAD. (TYP.)
E
B
A
1.397 (0.055)
±0.254
(0.010)
0.254 (0.010)
TYP.
1.905 (0.075)
±
0.635 (0.025)
TYP.
0.254 (0.010)
RAD. (TYP.)
0.508 (0.020) TYP.
2.54 (0.100) TYP.
2.54 (0.100) MAX.
0.635 (0.025) MIN.
±
0.254 (0.010)
1.778 (0.070)
C
±
0.254 (0.010)
1.778 (0.070)
C
0.254 (0.010)
TYP.
1.905 (0.075)
±
0.635 (0.025)
TYP.
“J” STYLE LEADS
“L” STYLE LEADS
B
A
1.397 (0.055)
±0.254
(0.010)
RAD.
0.254
(0.010)
(TYP)
0.254 (0.010) TYP.
D
E
1.778 ±0.254
(0.070 ± 0.010)
0.508 (0.020) TYP.
2.54 (0.100) TYP.
2.54 (0.100) MAX.
0.635 (0.025) MIN.
C
DETAIL B
3.048 ± 0.381
(0.120 ± 0.015)
DETAIL B
“Z” STYLE LEADS
millimeters (inches)
B (max.)
C ±.635 (±0.025)
11.4
20.3
11.4
10.2
6.35
31.8
(0.450)
(0.800)
(0.450)
(0.400)
(0.250)
(1.250)
D ±.635 (±0.025)
52.1
38.4
26.7
10.2
6.35
52.1
(2.050)
(1.510)
(1.050)
(0.400)
(0.250)
(2.050)
E (max.)
12.7
22.1
12.7
11.2
7.62
34.3
(0.500)
(0.870)
(0.500)
(0.440)
(0.300)
(1.350)
No. of Leads
per side
20
15
10
4
3
20
DIMENSIONS
Style
RM-1
RM-2
RM-3
RM-4
RM-5
RM-6
A (max.)
For “N” Style Leads: “A” Dimension Plus 1.651 (0.065)
For “J” & “L” Style Leads: “A” Dimension Plus 2.032 (0.080)
For “P” Style Leads: “A” Dimension Plus 4.445 (0.175)
For “Z” Style Leads: “A” Dimension Plus 3.048 (0.120)
See page 10 for
maximum “A”
Dimension
Note: For RM5 add 0.127 (0.005) to max. and nominal dimensions A, B, D, & E
2
1.270 ± 0.254
(0.050 ± 0.010)
2.794 ± 0.254
(0.110 ± 0.010)
CHIP SEPARATION
0.254 (0.010) TYP.
RoHS Compliant SMPS Stacked
MLC Capacitors
(RM Style)
Max Capacitance (μF) Available Versus Style with Height (A) of 0.120" - 3.05mm
AVX
STYLE
RM01 _ _ _ _ _ _ AN120
50V
100V 200V 500V
RM02 _ _ _ _ _ _ AN120
50V
100V 200V 500V
RM03 _ _ _ _ _ _ AN120
50V
100V 200V 500V
RM04 _ _ _ _ _ _ AN120
50V
100V 200V 500V
RM05 _ _ _ _ _ _ AN120
50V
100V 200V 500V
RM06 _ _ _ _ _ _ AN120
50V
100V 200V 500V
C0G
X7R
Z5U
1.0
27
84
.70
12
32
.40
7.0
12
.18
2.6
1.2
41
1.0
18
46
.60
11
34
.26
4.0
––
.47 .40
18
40
6.0
15
.20
3.6
.09
1.3
.16
7.5
12
.13
1.8
4.6
.07
1.1
.02
.40
.05
2.8
.04
.68
1.8
.02
.40
.01
.16
3.2 2.4
80
40
1.3
24
92
.50
9.4
––
– – 110
6.0 – –
3.0 – – 4.6
.72 – – 260 140
Max Capacitance (μF) Available Versus Style with Height (A) of 0.240" - 6.10mm
AVX
STYLE
RM01 _ _ _ _ _ _ AN240
50V
100V 200V 500V
RM02 _ _ _ _ _ _ AN240
50V
100V 200V 500V
RM03 _ _ _ _ _ _ AN240
50V
100V 200V 500V
RM04 _ _ _ _ _ _ AN240
50V
100V 200V 500V
RM05 _ _ _ _ _ _ AN240
50V
100V 200V 500V
RM06 _ _ _ _ _ _ AN240
50V
100V 200V 500V
C0G
X7R
Z5U
2.0
54
160
1.4
24
64
.80
14
24
.36
5.2
2.4
82
2.0
36
92
1.2
22
68
.52
8.0
––
1.0 .80
36
80
12
30
.40
7.2
12
.18
2.6
––
.32
15
24
.26
3.6
9.2
.14
2.2
.05
.80
.10
5.6
.08
1.3
3.6
.05
.80
.02
.32
6.4 4.8
160 80
2.6
48
1.0
18
– – 230
6.0 – – 9.2
1.4 – – 520 280 180 – –
Max Capacitance (μF) Available Versus Style with Height (A) of 0.360" - 9.14mm
AVX
STYLE
RM01 _ _ _ _ _ _ AN360
50V
100V 200V 500V
RM02 _ _ _ _ _ _ AN360
50V
100V 200V 500V
RM03 _ _ _ _ _ _ AN360
50V
100V 200V 500V
RM04 _ _ _ _ _ _ AN360
50V
100V 200V 500V
RM05 _ _ _ _ _ _ AN360
50V
100V 200V 500V
RM06 _ _ _ _ _ _ AN360
50V
100V 200V 500V
C0G
X7R
Z5U
3.0
82
250
2.1
36
96
1.2
21
36
.54
3.6
3.0
54
1.8
33
.78
12
1.5 1.2
54
18
.60
10
18
.27
3.9
––
.48
22
36
.39
5.4
13
.21
3.3
.07
1.2
.15
8.2
13
.12
2.0
5.4
.07
1.2
.03
.48
9.6 7.2
240 120
3.9
72
1.5
28
7.8 120
– – 350 130 100 – – 120 45
9.0 – –
2.1 – – 780 430 270 – –
Max Capacitance (μF) Available Versus Style with Height (A) of 0.480" - 12.2mm
AVX
STYLE
RM01 _ _ _ _ _ _ AN480
50V
100V 200V 500V
RM02 _ _ _ _ _ _ AN480
50V
100V 200V 500V
RM03 _ _ _ _ _ _ AN480
50V
100V 200V 500V
RM04 _ _ _ _ _ _ AN480
50V
100V 200V 500V
RM05 _ _ _ _ _ _ AN480
50V
100V 200V 500V
RM06 _ _ _ _ _ _ AN480
50V
100V 200V 500V
C0G
X7R
Z5U
4.0
110
2.8
48
1.6
28
48
.72
10
4.8
160
4.0
72
2.2
44
1.0
16
2.0 1.6
72
24
.80
14
24
.36
5.2
––
.64
30
48
.52
7.2
18
.28
4.4
12
.10
1.6
––
.20
10
18
.16
2.7
7.2
.10
1.6
.04
.64
12
9.6
5.2
96
2.0
37
320 160
330 120
– – 470 180 130 – – 160 60
2.8 – – 1000 570 360 – –
Max Capacitance (μF) Available Versus Style with Height (A) of 0.650" - 16.5mm
AVX
STYLE
RM01 _ _ _ _ _ _ AN650
50V
100V 200V 500V
RM02 _ _ _ _ _ _ AN650
50V
100V 200V 500V
RM03 _ _ _ _ _ _ AN650
50V
100V 200V 500V
RM04 _ _ _ _ _ _ AN650
50V
100V 200V 500V
RM05 _ _ _ _ _ _ AN650
50V
100V 200V 500V
RM06 _ _ _ _ _ _ AN650
50V
100V 200V 500V
C0G
X7R
Z5U
5.0
130
3.5
60
2.0
35
60
.90
13
6.0
200
5.0
90
3.0
55
1.3
20
2.5 2.0
90
30
1.0
18
30
.47
6.5
––
.80
36
60
.65
9.0
23
.35
5.5
15
.12
2.0
––
.25
12
23
.20
3.4
9.0
.12
2.0
.05
.80
16
12
6.5
2.5
47
400 200 120
420 160
– – 590 230 170 – – 200 75
3.6 – – 1300 720 460 – –
3
PCB Design
