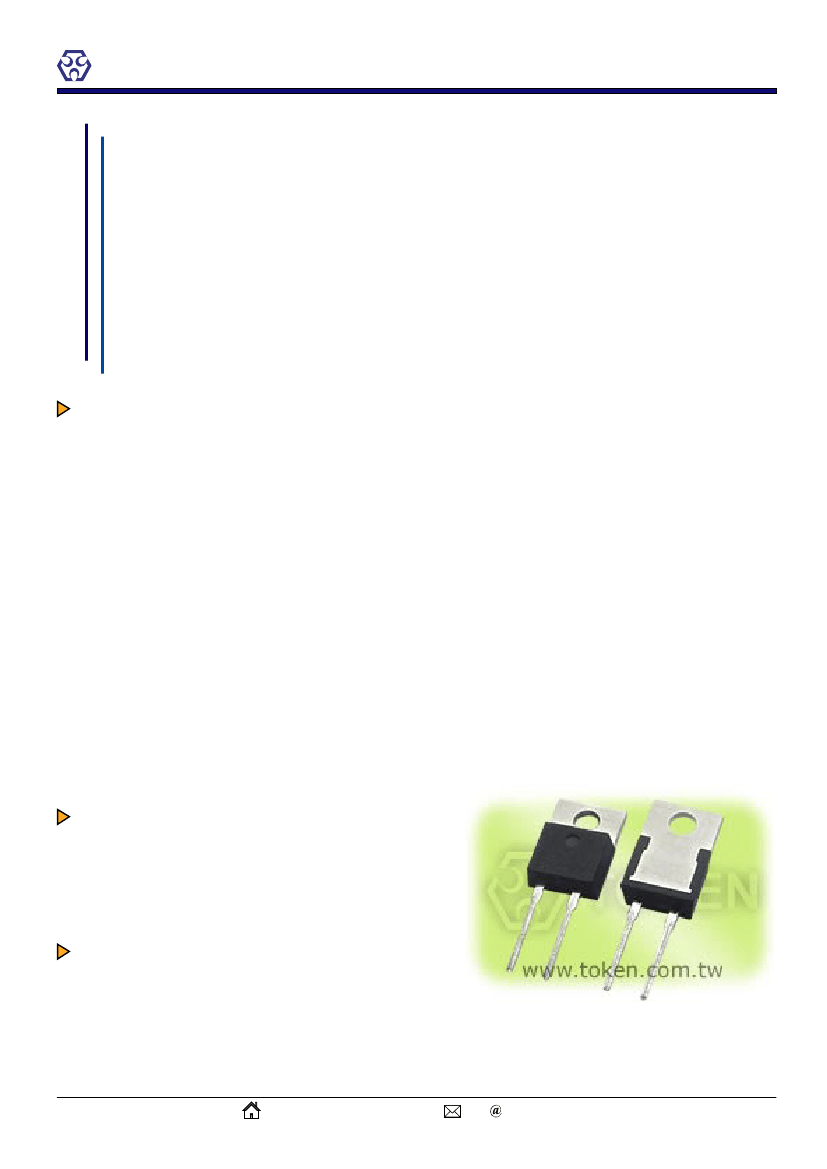

TOKEN
RMG35 Power TO-Style Resistors
Power
TO-Style Resistors
TO-220 Power TO-Style Resistors - RMG35 Series
Boast Superior Thermal Performance
Preview
Giving power electronics design engineers a comprehensive range of high-wattage surface mount and through-
hole resistors designed to provide superior thermal performance in densely populated power supply circuits,
Token Electronics has released a series of noninductive power resistors with power ratings 35W, in popular
transistor-style packages (TO-220).
The RMG35 resistors are designed to provide complete thermal flow from the resistive element to the integral
metal flange of the TO-style packages, giving design engineers the ability to specify them for high-wattage power
electronics circuits that can experience elevated temperatures during operation.
The devices are all rated for operation from -65°C to +150°C.
Their superior thermal performance and extreme power ratings make the RMG35 Series resistors ideal for
switch-mode power supply circuits, motor control and drive circuits, automotive electronics, industrial power
equipment and UPS systems. In addition, their non-inductance exhibit excellent high frequency characteristics
for use in high frequency industrial RF power sources, RF linear amplifiers, termination resistor of RF circuit etc.
The RMG35 Series resistors feature thermally enhanced two-leaded industry standard packages designed for
mounting directly to a heatsink. Token Electronics will also produce devices outside these specifications to meet
customer requirements, with comprehensive application engineering and design support available for customers
worldwide.
All RMG35 Series devices are RoHS-compliant, and compatible with high temperature soldering processes
normally employed for lead free solders.
Contact us with your specific needs.
Applications
- RF Power Amplifier.
- Switching Power Supplies.
- Low Energy Pulse Loading.
- Automated Machine Controller.
- UPS, Snubbers Circuits, Voltage Regulation.
Features
- Single Screw Mounting to Heat Sink.
- Molded Case for Protection and Easy to Mount.
- 35 Watt at 25°C Case Temperature Heat Sink Mounted.
- TO-220 Style Power Package, Isolated Case, Non Inductive.
- Low Thermal Resistance to Heat Sink at Rth < 4.28°C/W.
Version 2010
rfq token.com.tw
01 of 03
http://www.token.com.tw/
TOKEN
Environmental Characteristics
RMG35 Power TO-Style Resistors
Test Item
Specification
Test Method
Temperature Coefficient of 10Ω and above, ±50ppm/°C
Referenced to 25°C, ΔR taken at +105°C
Resistance
1Ω and 10Ω, (±100ppm)/°C
2 times rated power with applied voltage not to exceed
Short Time Overload
Δ R±0.3%
1.5 times maximum continuous operating voltage for 5
seconds.
Load Life
Δ R±1.0%
MIL-R-39009,2,000 hours at rated power.
MIL-STD-202F, Method 103B
Humidity (Steady State)
Δ R±0.5%
40°C, 90~95%RH, RCWV 1.5hours ON, 0.5hours OFF.
total 1000~1048 hours.
MIL-STD-202, Method 107G.
Thermal Shock
Δ R±0.3%
-65°C~150°C,100 cycle
Terminal Strength
Δ R±0.2%
MIL-STD-202, Method 211, Cond.A(Pull Test) 2.4N.
Vibration, High Frequency Δ R±0.2%
MIL-STD-202, Method 204, Cond.D.
Note:1.Lead Material: Tinned Copper. Maximum Torque: 0.9 Nm.
2.Without Heat Sink, When in Free Air at 25°C, the RMG35 is Rated for 2.50W.
3.The Case Temperature is to be used for the Definition of the Applied Power Limit.
4.The Case Temperature Measurement Must be Made with a Thermocouple Contacting the Center of the Component
Mounted on the Designed Heat Sink.
5.Thermal Grease Should be Applied Properly.
How to Order
RMG
Part Number
35
J
P
D
Code
10R
TCR
TCR (PPM/°C)
D
E
F
-
Power Rating
Resistance Tolerance (%)
Code
D
F
G
J
K
Resistance Tolerance
±0.5%
±1%
±2%
±5%
±10%
Package
Tube
Bulk
±50PPM/°C
±100PPM/°C
±200PPM/°C
No specified
Resistance
0.1Ω
10Ω
Resistance
Code
0R1
10R
1K
10K
Package
Code
T
P
1KΩ
10KΩ
Back to 1st Page - TO-220 Power Resistors (RMG35)
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 03
