2036-15-23-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2036-15-23-5

2036-15-23-5: DescriptionBoard Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2036-15-23-5 Overview

Board Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal

2036-15-23-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.079 inch
subject depth	0.551 inch
body length	1.811 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	2036
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	23

Preview

Download Datasheet

View All

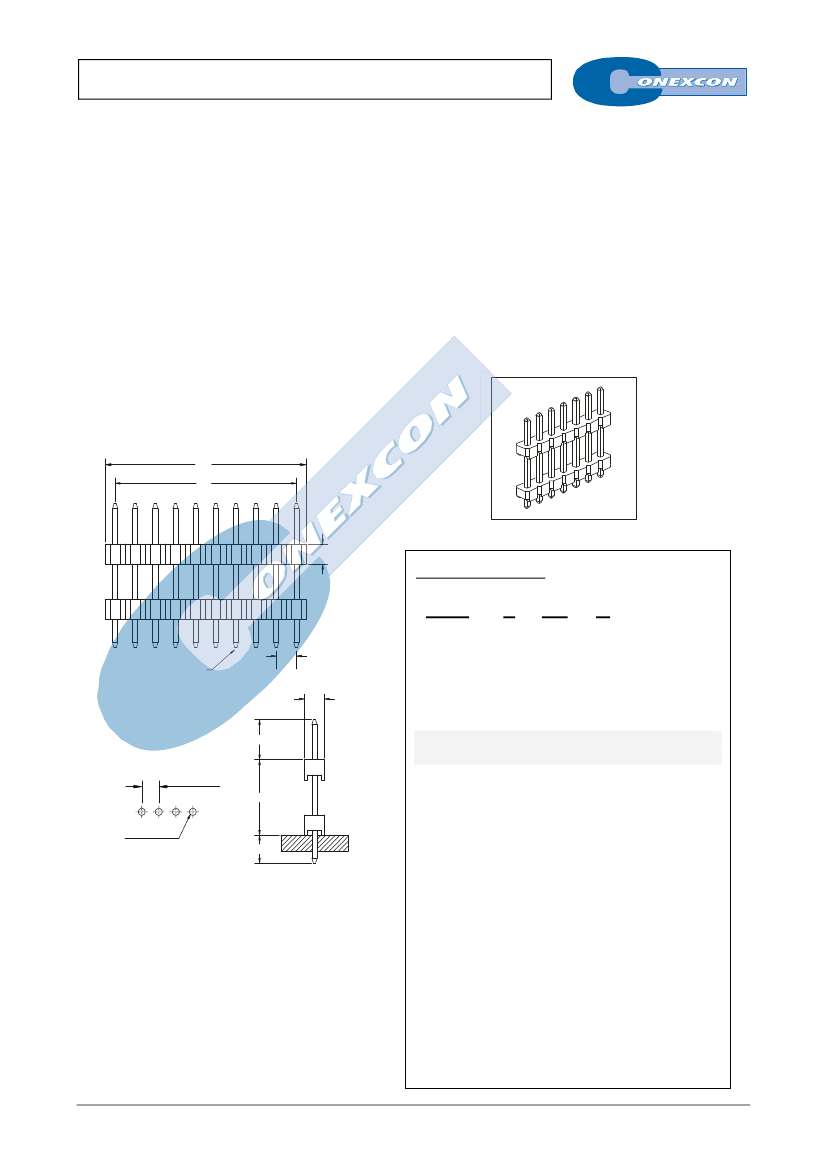

S/ ROW DUAL BODY VERTICAL PIN HEADER

2036 SERIES.

2.00 mm (0.079”) pitch.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with sockets 2.00 mm.pitch 2041, 2047, 2054, 2166

2149 and 2018 series

0.50 mm. square pin with different plating

Available with different pin length. Contact sales office



Voltage rating: < 125V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2pF at 1 KHz.

Materials

Mechanical Features

Pin retention force to insulator: > 0.30 Kgf

Durability: 50 cycles



Insulator: Polyester nylon 6T UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS Compliant

Dimension Information

2.00

Ordering Information:

2036 -

2.00

T-

XX-

0.50 x 0.50 mm.

1. Connector Series

2.00

2. (T) Contact Plating



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

.079±.002

2.00±0.05

0.80±0.05

.030±.002

RECOMMENDED HOLE PATTERN

3. (XX) Number of circuits

Available in 2 through 40 circuits

4. (C) Pin dimensions

C =

H = 4.00 mm. ; D = 7.50 mm. ; F = 2.80 mm.

C =

H = 2.80 mm. ; D = 4.00 mm. ; F = 2.80 mm.

C =

H = 4.00 mm. ; D = 14.00mm. ; F = 2.50 mm.

C =

H = 4.00 mm. ; D = 6.00 mm. ; F = 2.80 mm.

C =

H = 10.00 mm. ; D = 14.00 mm. ; F = 2.80 mm.

C =

H = 2.00 mm. ; D = 3.45 mm. ; F = 2.00 mm.

C =

H = 10.10 mm. ; D = 6.99 mm. ; F = 2.03 mm.

Dimensions:

(In mm.)

= 2.00 x (XX*-1)

= 2.00 x (XX*)

* XX

(Number of circuits)

A-XX
