5446-2140 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5446-2140

5446-2140: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5446-2140 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

5446-2140 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.354 inch
subject depth	0.358 inch
body length	1.001 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	5446
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

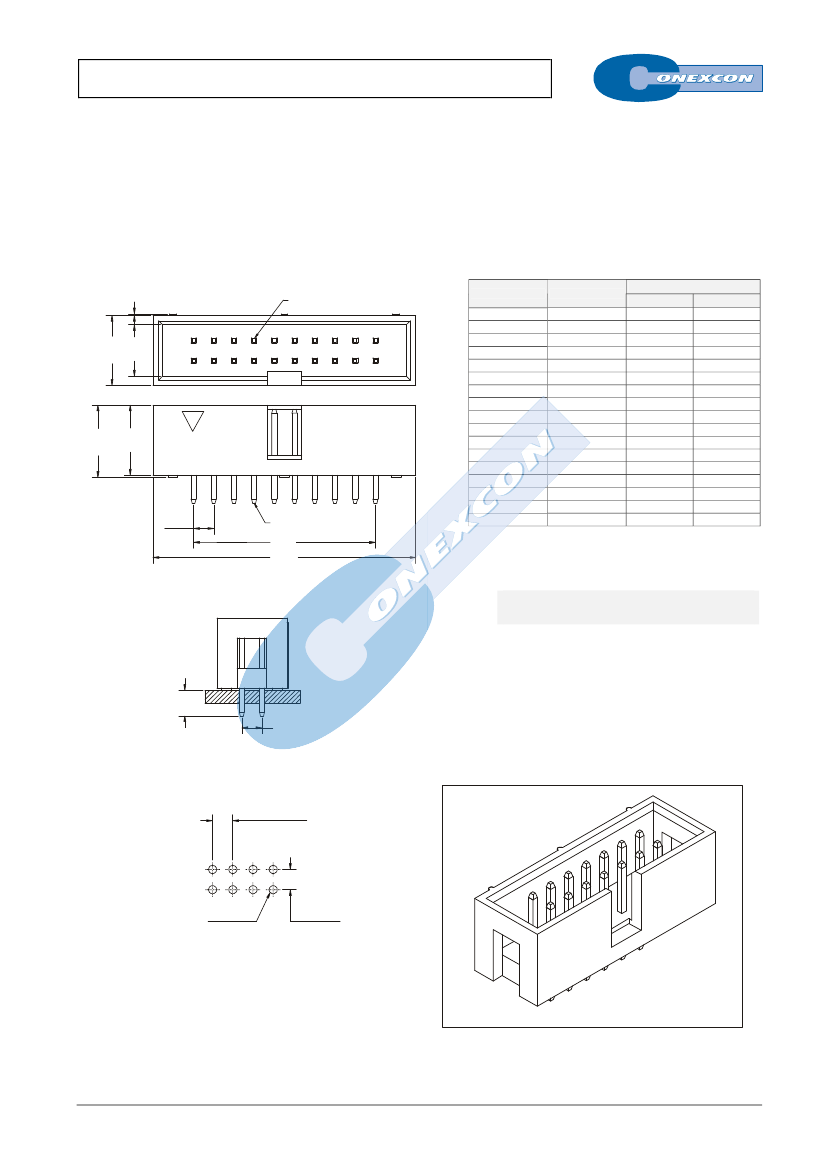

2.54mm STRAIGHT SHROUDED HEADER

5446 SERIES.

2.54 x 2.54mm(0.100 x 0.100”). Low Profile. For PCB Solder

Features





Available in 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 40, 44,

48, 50, 60 and 64 circuits

Insulator Material: Glass filled Polyester UL 94V-0

Contact Material: 0.64mm square pin in brass



Low profile

Fully shrouded

Mates with 5440 series IDC connector

Different plating options are available

Ordering and Dimensional Information

Dimensions

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

22,86(0,900)

27,94(1,100)

30,48(1,200)

35,56(1,400)

40,64(1,600)

48,26(1,900)

53,34(2,100)

58,42(2,300)

60,96(2,400)

73,66(2,900)

78,74(3,100)

15,27(0,601)

17,81(0,701)

20,35(0,801)

22,90(0,902)

25,43(1,001)

27,97(1,101)

33,05(1,301)

38,13(1,501)

40,67(1,601)

45,75(1,801)

50,83(2,001)

58,45(2,301)

63,53(2,501)

68,61(2,701)

71,15(2,801)

83,85(3,301)

88,93(3,501)

Dimensional Information

0.20

0.64mm Square

Circuit Size

Part Number

5446-T060

5446-T080

5446-T100

5446-T120

5446-T140

5446-T160

5446-T200

5446-T240

5446-T260

5446-T300

5446-T340

5446-T400

5446-T440

5446-T480

5446-T500

5446-T600

5446-T640

8.80

6.50

9.10

8.80

2.54

0.64 mm. Square

T = Contact Plating



T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

3.20

2.54

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002

1.02±0.05

.040±.002

2.54±0.05

.100±.002

FULL LINE CATALOGUE

E-XX

5446-2140 Related Products

	5446-2140	5446-2120	5446-2300	5446-2480	5446-2600	5446-2100	5446-2640	5446-2400	5446-2340	5446-2500
Description	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
subject depth	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch
body length	1.001 inch	0.901 inch	1.801 inch	2.701 inch	3.301 inch	0.801 inch	3.501 inch	2.301 inch	2.001 inch	2.801 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	5446	5446	5446	5446	5446	5446	5446	5446	5446	5446
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	14	12	30	48	60	10	64	40	34	50
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	-	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-
