DDLF-B25S-BRJ-212 datasheet, PDF

DDLF-B25S-BRJ-212: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size254KB，4 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

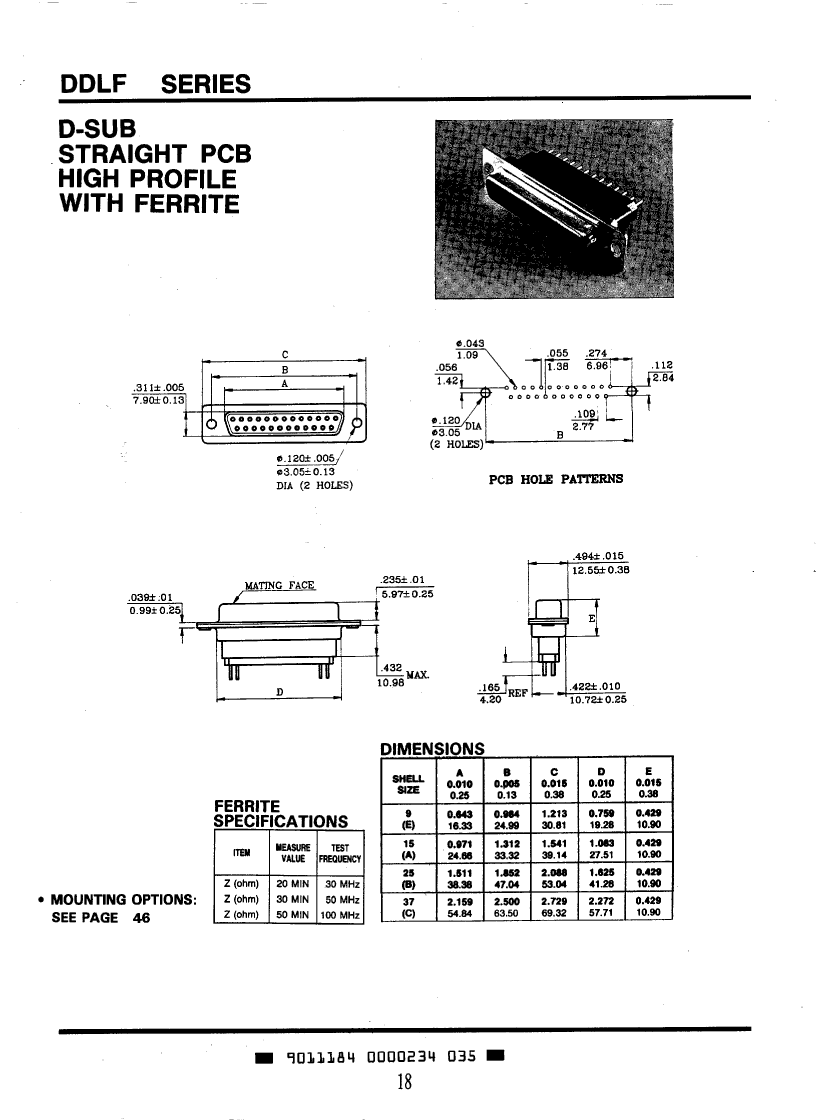

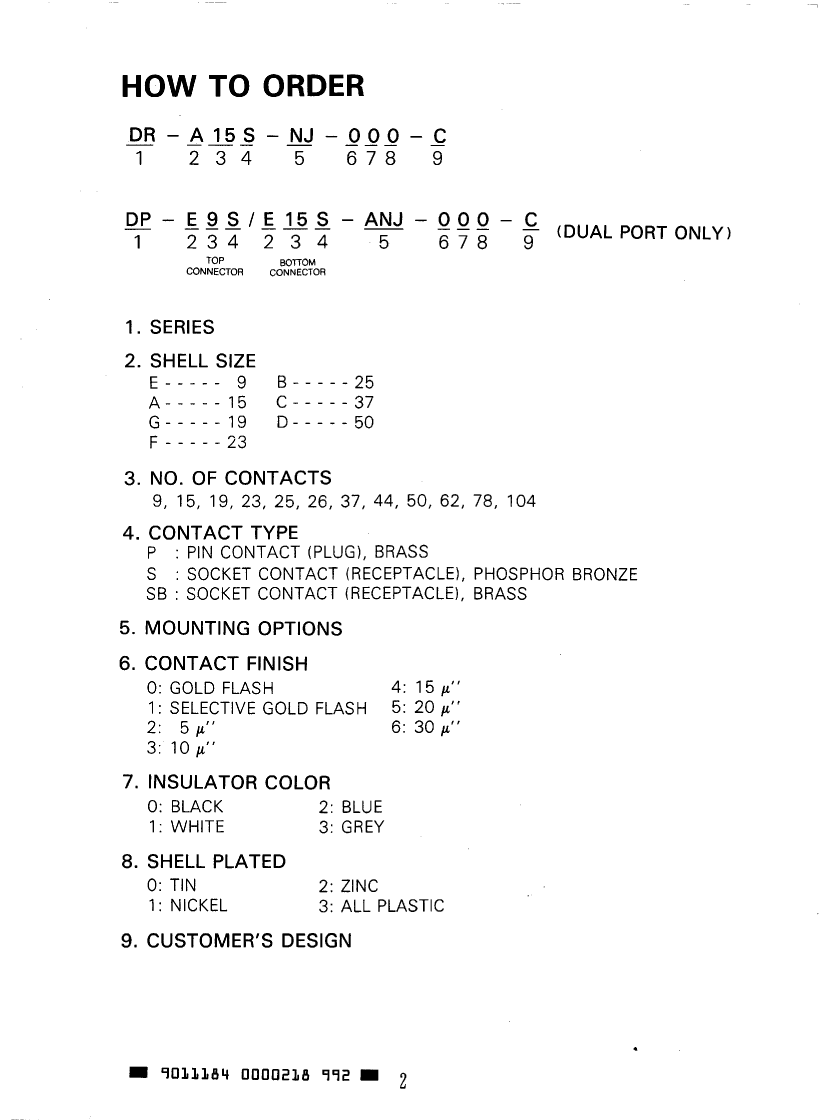

DDLF-B25S-BRJ-212 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

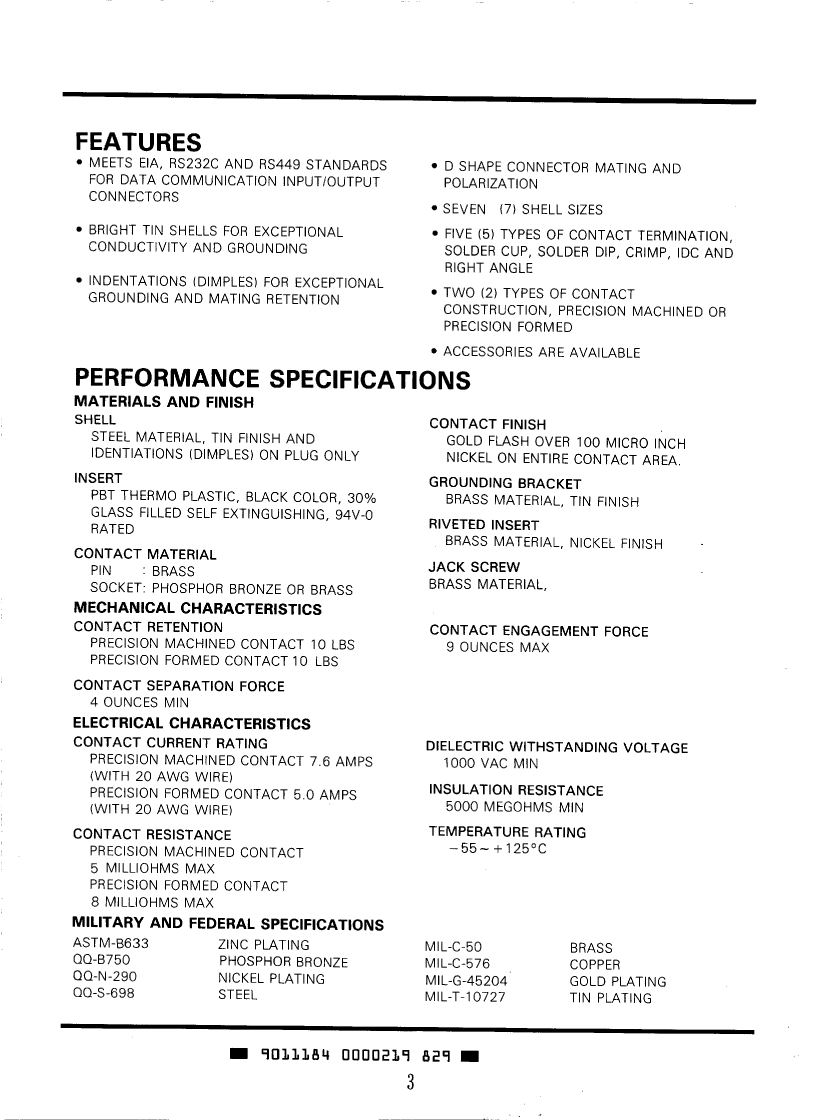

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FERRITE FILTER
body width	0.494 inch
subject depth	0.432 inch
body length	2.088 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DDLF
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

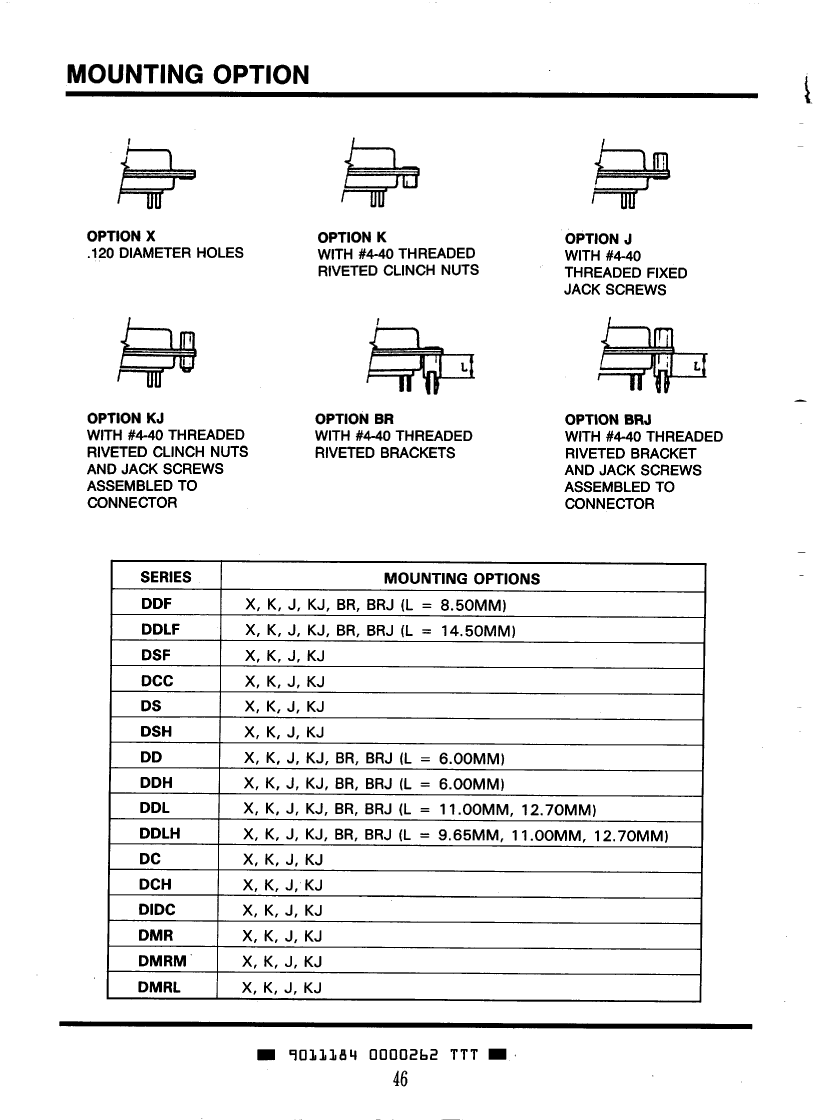

Installation option 1	#4-40
Installation option 2	JACKSCREW,BRACKET
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	5u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Terminal length	0.165 inch
Terminal pitch	2.794 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	1.112 N
