DROF-E9P-HT-031 datasheet, PDF

DROF-E9P-HT-031: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Receptacle; CategoryThe connector The connector; File Size326KB，5 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

DROF-E9P-HT-031 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FERRITE FILTER, 0.318 FTPRINT
body width	0.494 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DROF
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

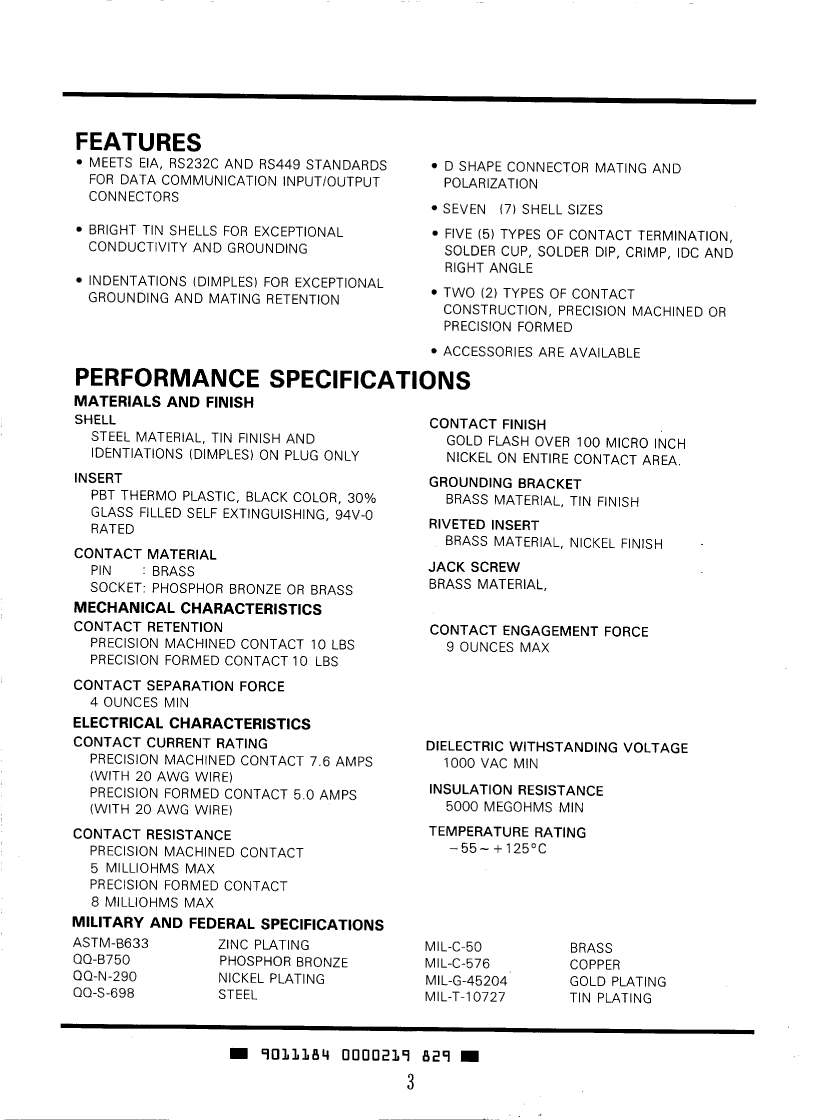

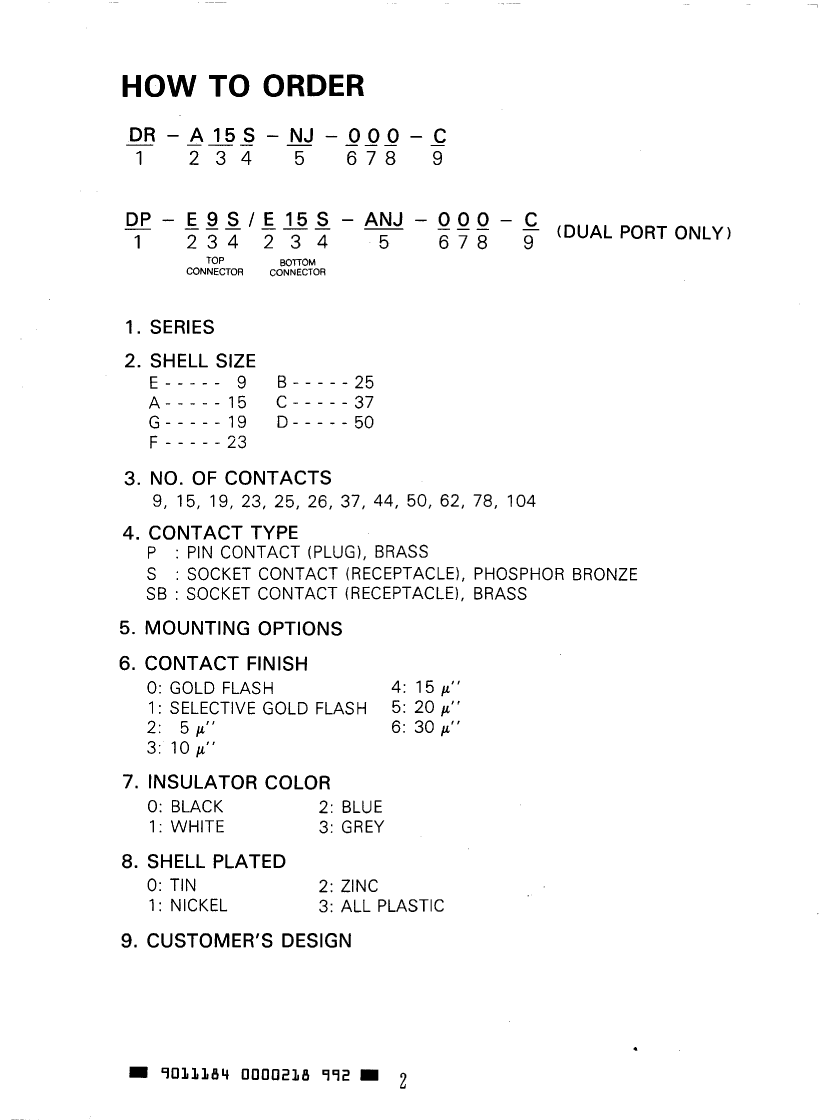

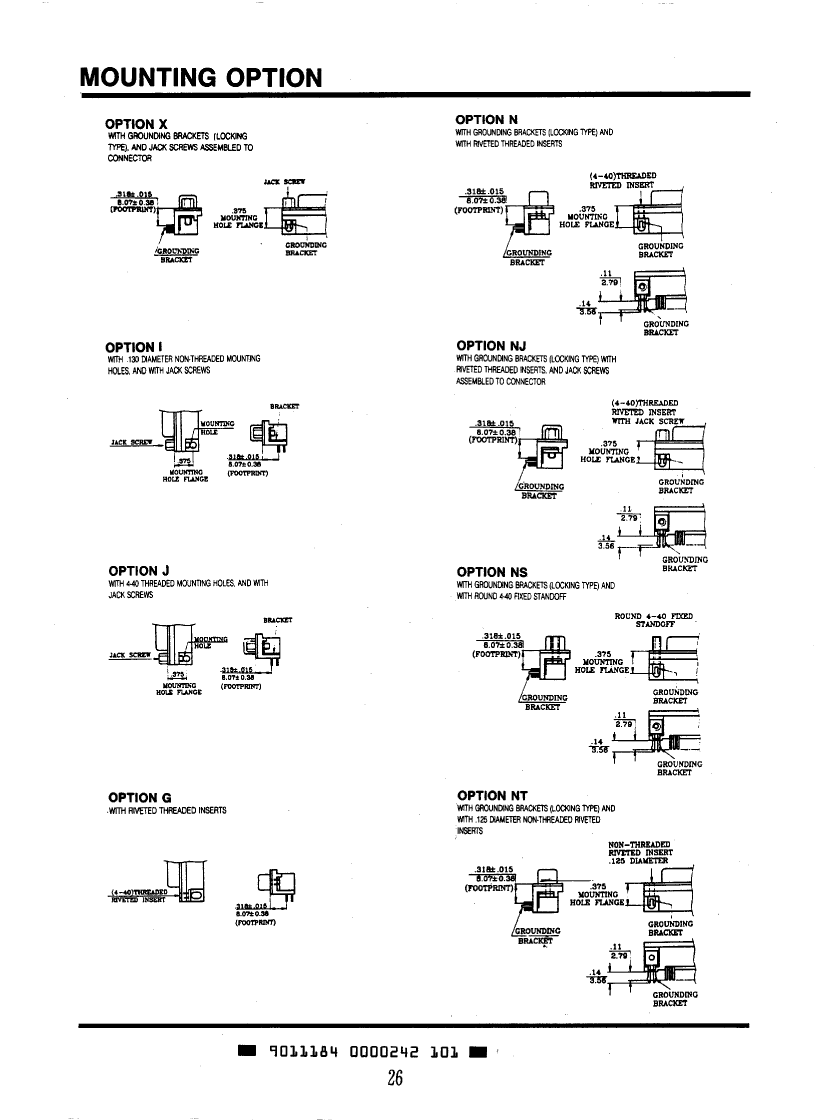

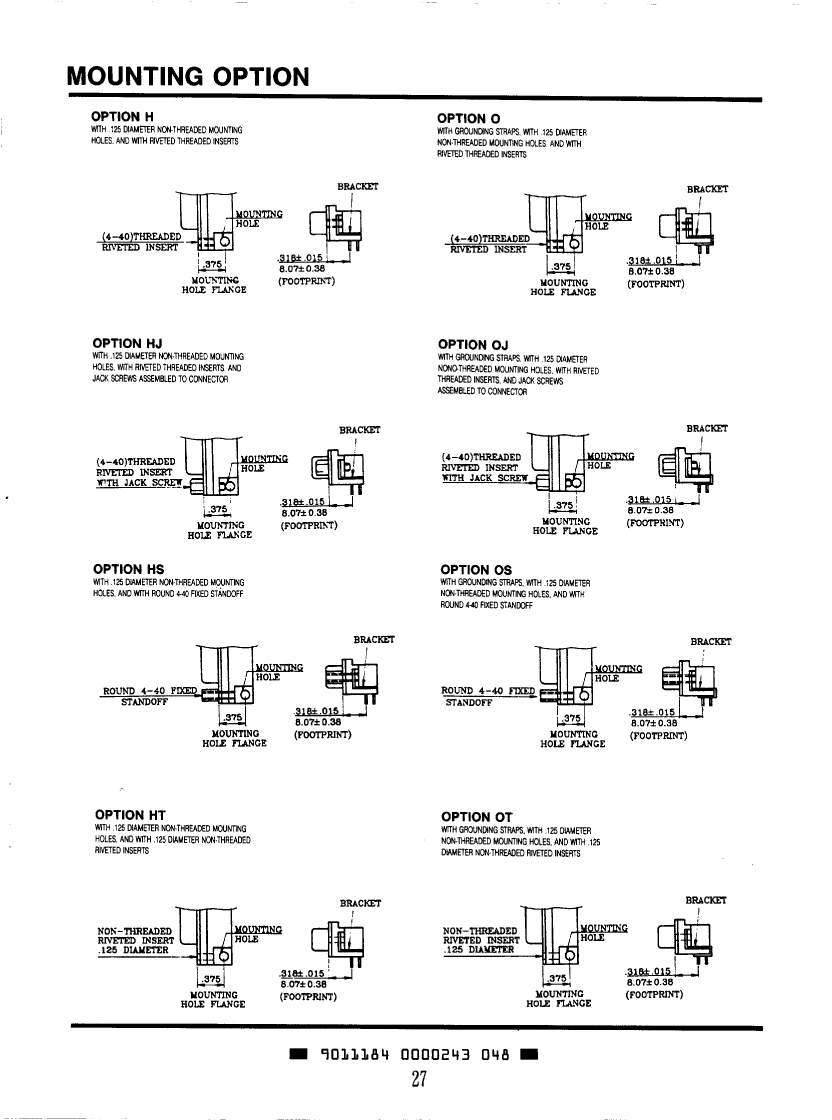

Installation option 1	HOLE .125-.137
Installation option 2	NON-THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	1.112 N
