3961SA-14TW-L

Description
Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size193KB,1 Pages
ManufacturerAmtek Technology Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

3961SA-14TW-L Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

3961SA-14TW-L Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.402 inch
subject depth0.484 inch
body length2.183 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial number3961
Plug contact pitch0.156 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)7 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.126 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts14
H
ousing Wafer Terminal

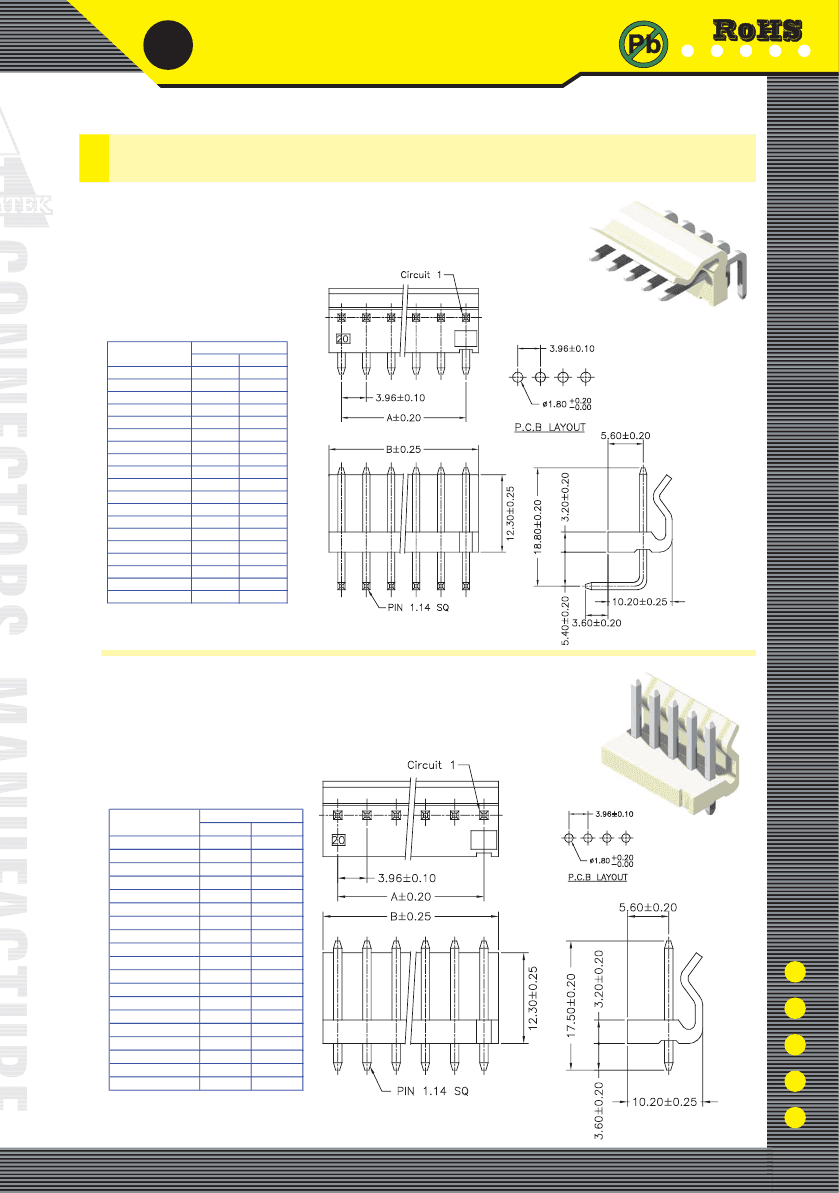

3.96mm Wafer Right Angle / Straight Type
Specifications
Current Rating: 7A AC,DC
Voltage Rating: 250V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 10m
Ω
Max
Insulation Resistance: 1000M
Ω
Min
Withstanding Voltage: 1500V AC/minute
Terminal: Brass / Tin Plated
Material: Nylon 66,UL94V-2
Dimensions
A
B
3.96
7.92
7.92
11.88
11.88
15.84
15.84
19.80
19.80
23.76
23.76
27.72
27.72
31.68
31.68
35.64
35.64
39.60
39.60
43.56
43.56
47.52
47.52
51.48
51.48
55.44
55.44
59.40
59.40
63.36
63.36
67.32
67.32
71.28
71.28
75.24
75.24
79.20
Part No.
3961RA-02TW-L
3961RA-03TW-L
3961RA-04TW-L
3961RA-05TW-L
3961RA-06TW-L
3961RA-07TW-L
3961RA-08TW-L
3961RA-09TW-L
3961RA-10TW-L
3961RA-11TW-L
3961RA-12TW-L
3961RA-13TW-L
3961RA-14TW-L
3961RA-15TW-L
3961RA-16TW-L
3961RA-17TW-L
3961RA-18TW-L
3961RA-19TW-L
3961RA-20TW-L
Part No.:3961RA-XXTW-L
Specifications
Current Rating: 7A AC,DC
Voltage Rating: 250V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 10mΩ Max
Insulation Resistance: 1000M
Ω
Min
Withstanding Voltage: 1500V AC/minute
Terminal: Brass / Tin Plated
Material: Nylon 66,UL94V-2
Part No.
3961SA-02TW-L
3961SA-03TW-L
3961SA-04TW-L
3961SA-05TW-L
3961SA-06TW-L
3961SA-07TW-L
3961SA-08TW-L
3961SA-09TW-L
3961SA-10TW-L
3961SA-11TW-L
3961SA-12TW-L
3961SA-13TW-L
3961SA-14TW-L
3961SA-15TW-L
3961SA-16TW-L
3961SA-17TW-L
3961SA-18TW-L
3961SA-19TW-L
3961SA-20TW-L
Dimensions
A
B
3.96
7.92
7.92
11.88
11.88
15.84
15.84
19.80
19.80
23.76
23.76
27.72
27.72
31.68
31.68
35.64
35.64
39.60
39.60
43.56
43.56
47.52
47.52
51.48
51.48
55.44
55.44
59.40
59.40
63.36
63.36
67.32
67.32
71.28
71.28
75.24
75.24
79.20
Part No.:3961SA-XXTW-L
