BH1I-60TY22-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BH1I-60TY22-L

Preview

BH1I-60TY22-L: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Guide Slot, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size240KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BH1I-60TY22-L Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Guide Slot, Gray Insulator, Receptacle

BH1I-60TY22-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.327 inch
subject depth	0.512 inch
body length	3.403 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	BH1I
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	60

Preview

Download Datasheet

View All

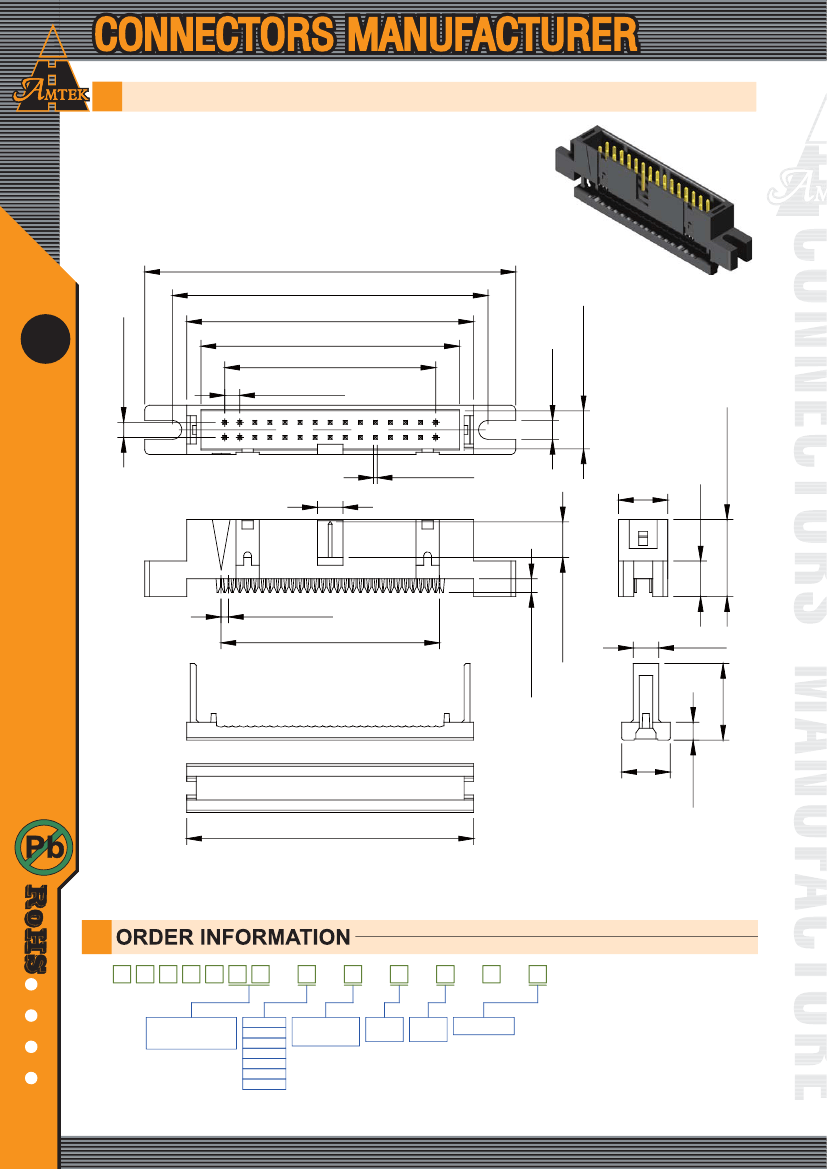

Box Header 2.54mm IDC Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

◎

Standard:PBT or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

2.54xNo. of Positions+24.45±0.30

2.54xNo. of Positions+15.10±0.20

2.54±0.15

3.20

2.54xNo. of Positions+5.45±0.20

2.54xNo. of Contacts/2-2.54±0.20

6.40±0.15

2.54xNo. of Positions+10.25±0.25

2.30±0.15

8.20

2.54xNo. of Positions+10.25±0.20

B H 1 I

- X X

◎

S:Selective

SA:5u"

SB:10u"

X

2

X

1:With Ear

2:W/O Ear

-

L

No. of contacts

(10,12,14,16,20,24,26,

30,34,40,50,60,64)

◎

Y:Gray Insulator

B:Black Insulator

2:W/O Sr

L:RoHS + P.B.T

SC:20u"

SD:30u'

TE:Tin 200u"

T:Tin Plated

2-104

◎:Standard

Recommended

www.amtek-co.com.tw

3.00

12.90

B

ox Header 2.54mm

□ 0.60

1.27±0.10

1.27xNo. of Contacts/2-1.27±0.20

6.00±0.25

6.00

4.30

8.30±0.15

13.00±0.15
