BD031-080-A-S-0-0230-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD031-080-A-S-0-0230-N-D

BD031-080-A-S-0-0230-N-D: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD031-080-A-S-0-0230-N-D Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

BD031-080-A-S-0-0230-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.222 inch
subject depth	0.224 inch
body length	2.126 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BD031
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	80

Preview

Download Datasheet

View All

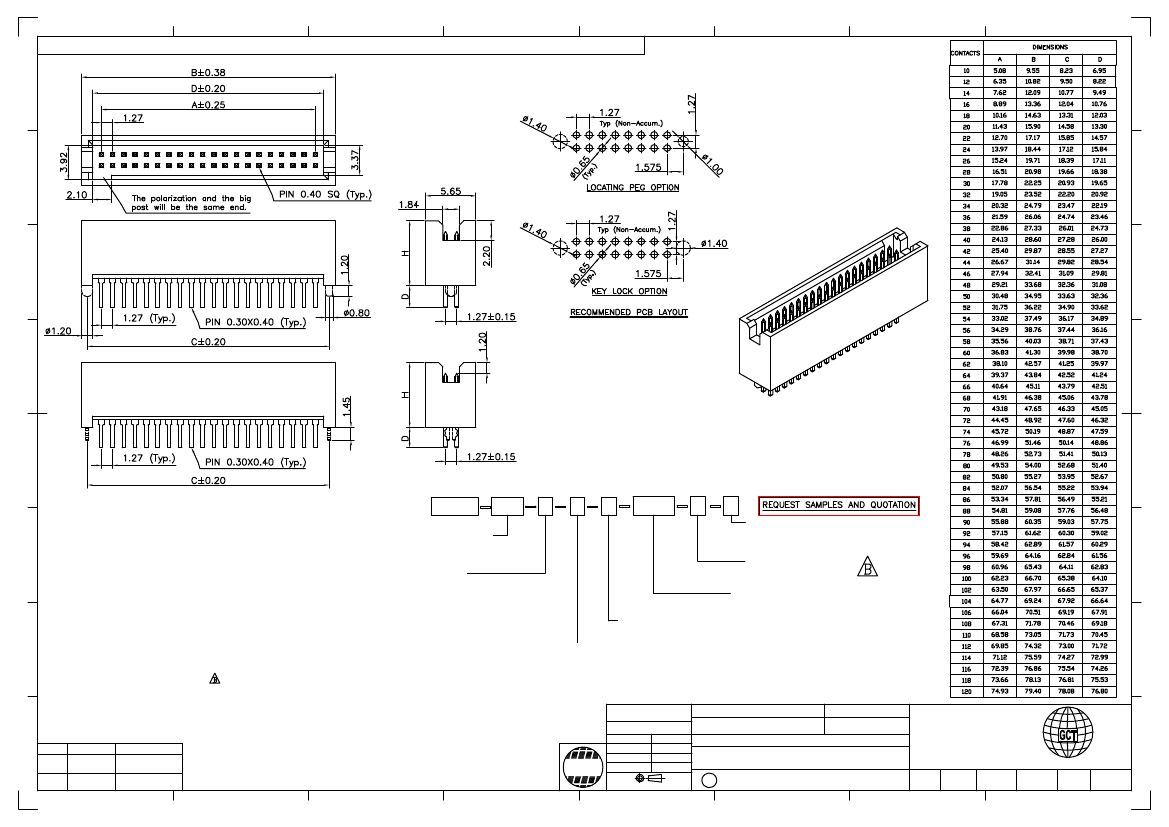

Global Connector Technology Ltd. - BD031: 1.27mm PITCH SHROUDED PIN HEADER, DUAL ROW, THROUGH HOLE, VERTICAL

Ordering Grid

BD031

No. of Contacts

10 to 120

e.g. 10 = 010

XXX

XXXX

Packing Options

D = Tube (Standard)

H = Tray

Insulator Material

N = Nylon 6T (Standard)

Dimension D (1/100mm)

(Tail Length)

Standard - 2.30mm = 0230

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压

: AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD065

DETAIL

REV

DATE

DRAWING

RELEASE

27/03/08

INSULATOR INFO

AMMENDED

27/07/09

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

Locating Peg

G = 10µ" Gold Contact Area/Tin On Tail

0 = No Peg/No Key Lock

I = 30µ" Gold Contact Area/Tin On Tail

1 = With Peg

Standard = Gold Flash All Over

Insulator

2 = With Key Lock

Height 'H'

S = 5.70mm

T = 7.30mm

Standard = 5.70mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

BD031

Description:-

30 MAR 08

RoHS

1.27mm PITCH SHROUDED PIN HEADER, DUAL ROW,

THROUGH HOLE, VERTICAL

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

E & OE

Sheet No.

1/1
