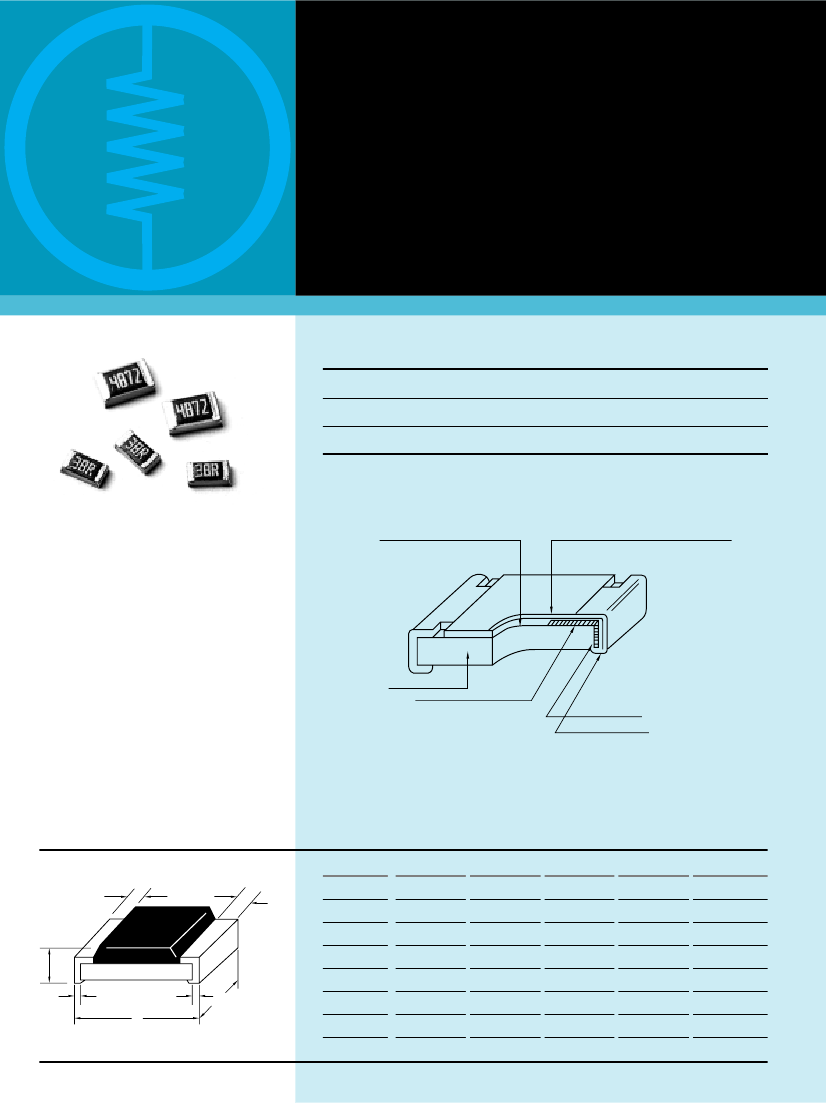

YAGEO CORPORATION

SMD RESISTORS

Thin Film Chip Resistors

RT Series

FEATURES

High Stability

Low TCR / Low Noise

High Accuracy (± 0.1%,

±

0.5%)

Resistor (NiCr)

Overcoat

Alumina Substrate

Internal Electrode (Ag-Pd)

Secondary Electrode (Nickel Plated)

External Electrode (Solder Plated)

DIMENSIONS

STYLE

I

1

I

1

Unit : mm

L

0.60± 0.10

1.00± 0.10

1.60± 0.10

2.00± 0.10

3.10± 0.10

5.00± 0.10

6.35± 0.10

W

0.30± 0.05

0.50± 0.05

0.80± 0.10

1.25± 0.10

1.60± 0.10

2.60± 0.15

2.50± 0.15

3.20± 0.15

H

0.25± 0.05

0.30± 0.05

0.45± 0.10

0.50± 0.10

0.55± 0.10

I

1

0.15± 0.10

0.20± 0.10

0.25± 0.15

0.35± 0.20

0.45± 0.20

0.50± 0.20

0.60± 0.20

I

2

0.15± 0.10

0.25± 0.10

0.25± 0.15

0.35± 0.20

0.40± 0.20

0.50± 0.20

RT0201

RT0402

RT0603

H

I

2

L

RT0805

RT1206

I

2

W

RT1210

RT2010

RT2512

RT0402 Related Products

	RT0402	RT0201	RT0603	RT0805	RT1206	RT1210	RT2010	RT2512
Description	Thin Film Chip Resistors	Thin Film Chip Resistors	Thin Film Chip Resistors	Thin Film Chip Resistors	Thin Film Chip Resistors	Thin Film Chip Resistors	Thin Film Chip Resistors	Thin Film Chip Resistors
