242A14470X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 242A14470X

242A14470X: DescriptionD Subminiature Connector, 15+15 Contact(s), Male/Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug/receptacle; CategoryThe connector The connector; File Size165KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

242A14470X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	242A14470X	-	-	View	Buy Now

242A14470X Overview

D Subminiature Connector, 15+15 Contact(s), Male/Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug/receptacle

242A14470X Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	THREADED LOCK
body width	1.134 inch
body length	1.556 inch
Body/casing type	PLUG-RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE/FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	424VDC V
Filter function	YES
maximum insertion force	3.336 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.81 mm
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.172 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	30
Evacuation force-minimum value	2.1962 N

Preview

Download Datasheet

View All

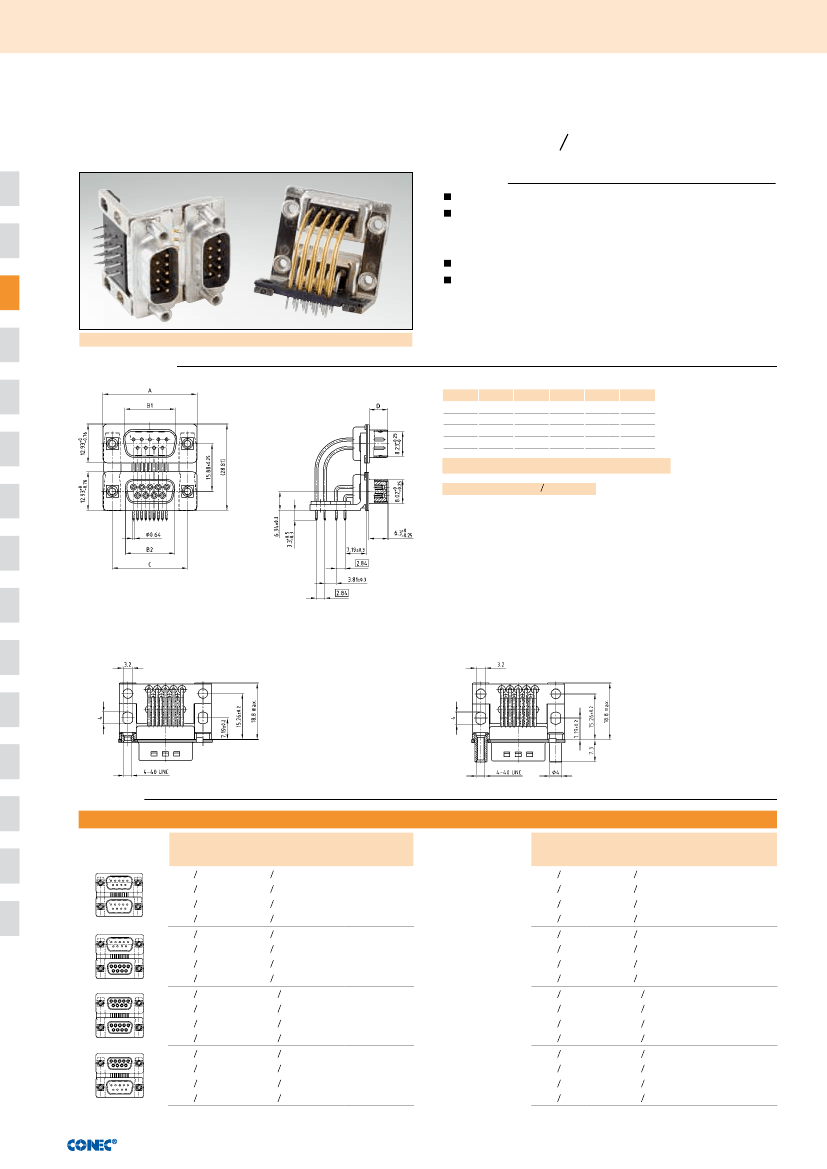

Filt e r D- S UB Co n nec to rs

C-Filter D-SUB Standard – Dual port

Solder pin – Angled – Precision machined contacts – .625“ 15.88 mm connector spacing

Description

Variations: plug – plug; socket – socket; plug – socket

Mounting styles:

- with mounting bracket and 4-40 UNC threaded insert

- with mounting bracket and 4-40 UNC front spacer

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated (brass tin plated on request)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Product drawing

No. of pos.

2X 09

2X 15

2X 25

2X 37

-0.76

31.19

39.52

53.42

69.70

+0.25

16.79

25.12

38.84

55.30

-0.25

16.46

24.79

38.50

54.96

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

-0.30

6.12

5.99

Graphically representation of only one variant!

PCB layout: Kat1iU5A Kat1iU6A

Mounting style: Threaded insert

Mounting style: Front spacer

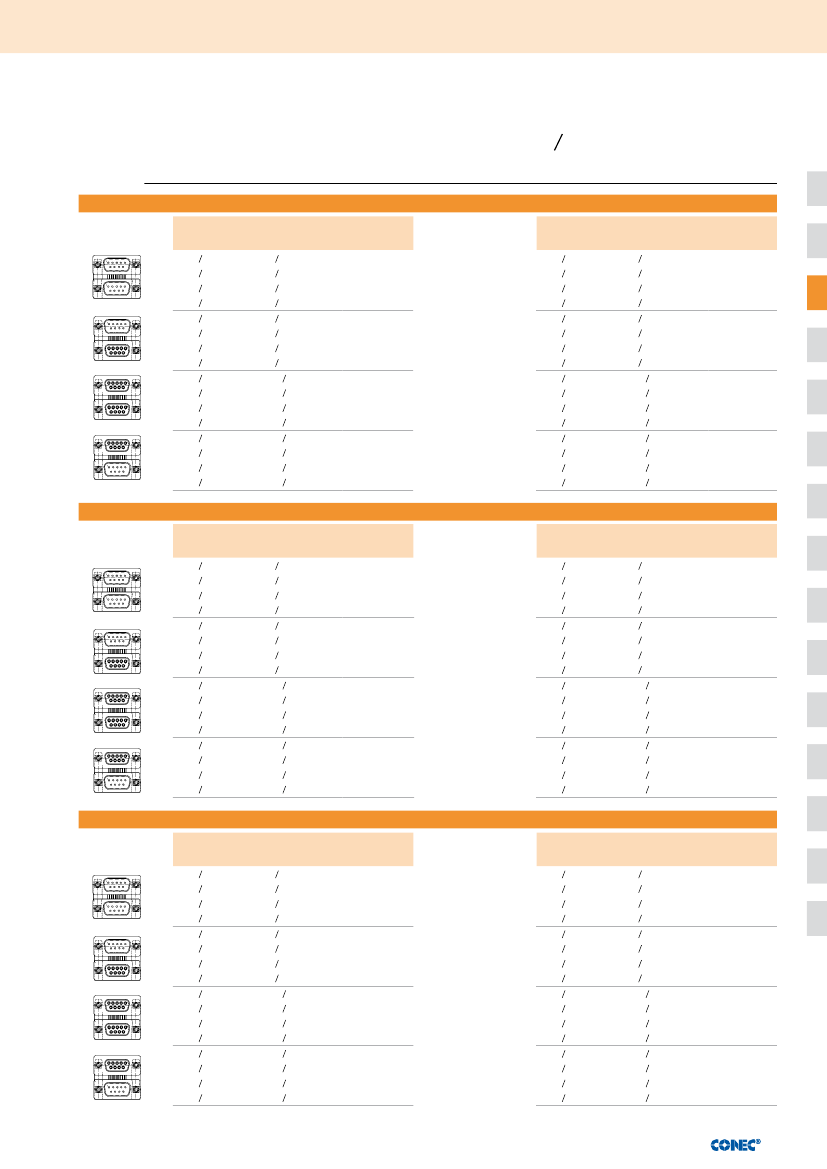

Order data

Capacitance 180 pF

Version with

4-40

UNC Threaded insert

No. of pos. Design

09 09

15 15

25 25

37 37

09 09

15 15

25 25

37 37

09 09

15 15

25 25

37 37

09 09

15 15

25 25

37 37

Plug upper Plug bottom

Plug upper Socket bottom

Socket upper Socket bottom

Socket upper Plug bottom

Version with

4-40

UNC Front spacer

No. of pos. Design

09 09

15 15

25 25

37 37

09 09

15 15

25 25

37 37

09 09

15 15

25 25

37 37

09 09

15 15

25 25

37 37

Plug upper Plug bottom

Plug upper Socket bottom

Socket upper Socket bottom

Socket upper Plug bottom

Part Number

241 A 22300 X

241 A 22310 X

241 A 22320 X

241 A 22330 X

241 A 22340 X

241 A 22350 X

241 A 22360 X

241 A 22370 X

242 A 22000 X

242 A 22010 X

242 A 22020 X

242 A 22030 X

242 A 22040 X

242 A 22050 X

242 A 22060 X

242 A 22070 X

Part Number

241 A 17420 X

241 A 17430 X

241 A 17440 X

241 A 17450 X

241 A 17460 X

241 A 17470 X

241 A 17480 X

241 A 17490 X

242 A 22080 X

242 A 22090 X

242 A 22100 X

242 A 22110 X

242 A 22120 X

242 A 22130 X

242 A 22140 X

242 A 22150 X

3| 46
