6215-1.80MHZ: DescriptionHCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 1.8MHz Nom, Hybrid,; CategoryPassive components oscillator; File Size53KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

6215-1.80MHZ Overview

HCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 1.8MHz Nom, Hybrid,

6215-1.80MHZ Parametric

Parameter Name	Attribute value
package instruction	DILCC4,.12
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 10 INCH
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	50 MHz
Minimum operating frequency	1.8 MHz
Nominal operating frequency	1.8 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	50 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.12
physical size	6.0mm x 3.5mm x 1.4mm
power supply	5 V
Certification status	Not Qualified
longest rise time	5 ns
Maximum slew rate	27 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
technology	HYBRID

Preview

Download Datasheet

View All

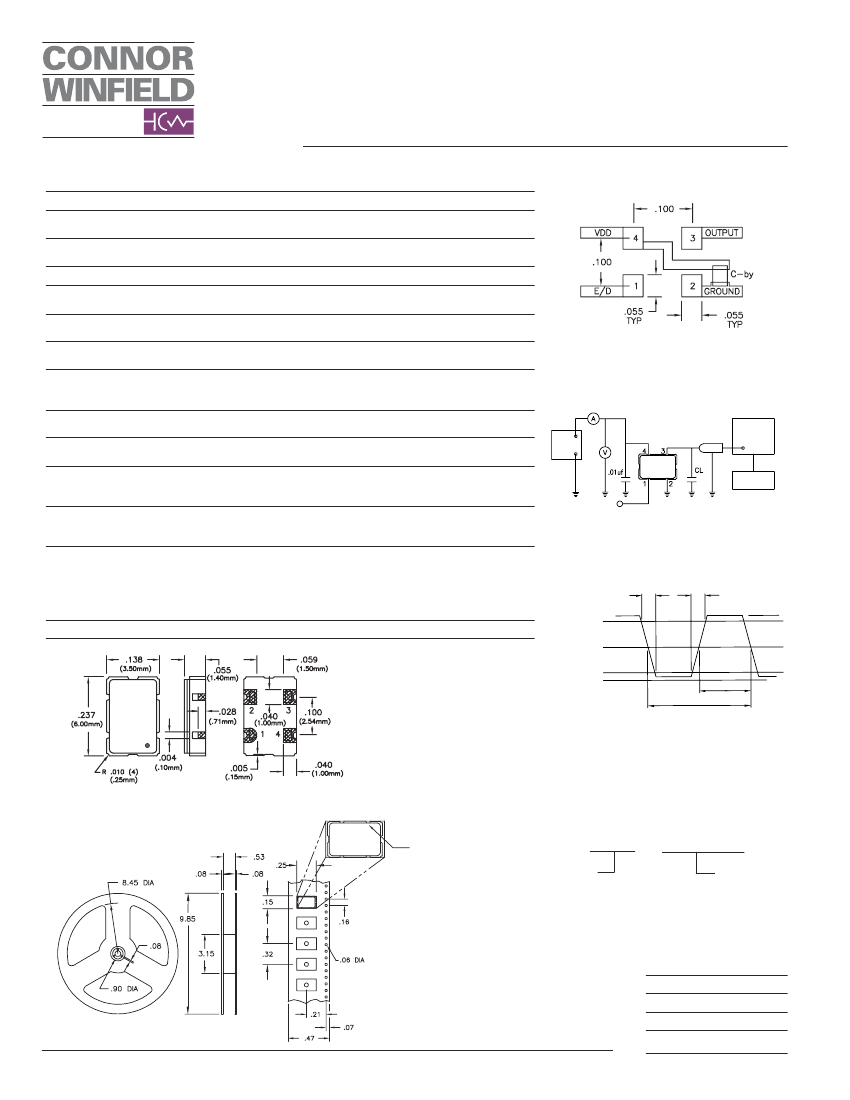

5.0V HCMOS Surface Mount

Crystal Clock Oscillator

6215, 6225, 6235

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

The Connor-Winfield models 6215, 6225,

and 6235 are a 6 x 3.5mm, 5.0V HCMOS,

Ceramic, Surface Mount, Fixed

Frequency Crystal Oscillators (XO)

designed for use in all applictions

requiring precision clocks. The surface

mount package is designed for high-

density mounting and is optimum for

mass production.

Features:

1.8 to 50 MHz

5.0V Operation

Tri-State Enable / Disable Function

Overall Frequency Tolerance:

6215 ± 25 ppm

6225 ± 50 ppm

6235 ± 100 ppm

Temperature Range: -40 to 85°C

Ceramic Surface Mount Package

Tape and Reel Packaging

Absolute Maximum Ratings

Parameter

Storage Temperature

Supply Voltage (Vcc)

Minimum

-55

-0.5

Nominal

Maximum

125

7.0

Units

°C

Vdc

Notes

Operating Specifications

Parameter

Frequency Range (Fo)

Frequency Tolerance

6215

6225

6235

Operating Temp Range

Supply Voltage (Vdd)

Supply Current (Icc)

1.8 to 31.999 MHz

32.0 to 50.0 MHz

Minimum

1.8

-25

-50

-100

-40

4.50

Nominal

5.0

Maximum

100

5.50

Units

MHz

ppm

Notes

°C

Vdc

Input Characteristics

Parameter

Enable Voltage - (Vih)

Disable Voltage - (Vil)

Enable Time

Disable Time

Minimum

2.2

Nominal

Maximum

0.8

100

Units

Vdc

Notes

HCMOS Output Characteristics

Parameter

Load

(Voh)

Voltage High (Vol)

Low

(loh)

Current High (lol)

Low

Duty Cycle at 50% of Vcc

Rise / Fall Time 10% to 90%

Start-Up Time

Jitter

Notes:

1. Inclusive of calibration @ 25°C , frequency vs temperature stability, supply voltage change, load change, shock and vibration, 10 years aging.

2. Oscillator output is enabled with no connection on pad 1

US Headquarters:

630-851-4722

European Headquarters:

+353-61-472221

Bulletin

Page

Revision

Date

Sm084

1 of 2

30 May 2002

Minimum

4.50

-16

Nominal

Maximum

0.55

Units

Vdc

pS RMS

Notes

6215-1.80MHZ Related Products

	6215-1.80MHZ	6215-50.00MHZ	6225-1.80MHZ	6225-50.00MHZ	6235-1.80MHZ	6235-50.00MHZ
Description	HCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 1.8MHz Nom, Hybrid,	HCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 50MHz Nom, Hybrid,	HCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 1.8MHz Nom, Hybrid,	HCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 50MHz Nom, Hybrid,	HCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 1.8MHz Nom, Hybrid,	HCMOS Output Clock Oscillator, 1.8MHz Min, 50MHz Max, 50MHz Nom, Hybrid,
package instruction	DILCC4,.12	DILCC4,.12	DILCC4,.12	DILCC4,.12	DILCC4,.12	DILCC4,.12
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 10 INCH	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 10 INCH	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 10 INCH	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 10 INCH	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 10 INCH	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 10 INCH
maximum descent time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	25%	25%	50%	50%	100%	100%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4	4	4	4	4
Maximum operating frequency	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
Minimum operating frequency	1.8 MHz	1.8 MHz	1.8 MHz	1.8 MHz	1.8 MHz	1.8 MHz
Nominal operating frequency	1.8 MHz	50 MHz	1.8 MHz	50 MHz	1.8 MHz	50 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Output load	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
Encapsulate equivalent code	DILCC4,.12	DILCC4,.12	DILCC4,.12	DILCC4,.12	DILCC4,.12	DILCC4,.12
physical size	6.0mm x 3.5mm x 1.4mm	6.0mm x 3.5mm x 1.4mm	6.0mm x 3.5mm x 1.4mm	6.0mm x 3.5mm x 1.4mm	6.0mm x 3.5mm x 1.4mm	6.0mm x 3.5mm x 1.4mm
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
longest rise time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Maximum slew rate	27 mA	45 mA	27 mA	45 mA	27 mA	45 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
maximum symmetry	60/40 %	60/40 %	60/40 %	60/40 %	60/40 %	60/40 %
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Objectid	-	1154974162	1154974163	1154974164	1154974165	1154974166
