Memory & IDE Terminator
Technical
Data Sheet
RoHS Compliant Parts Available

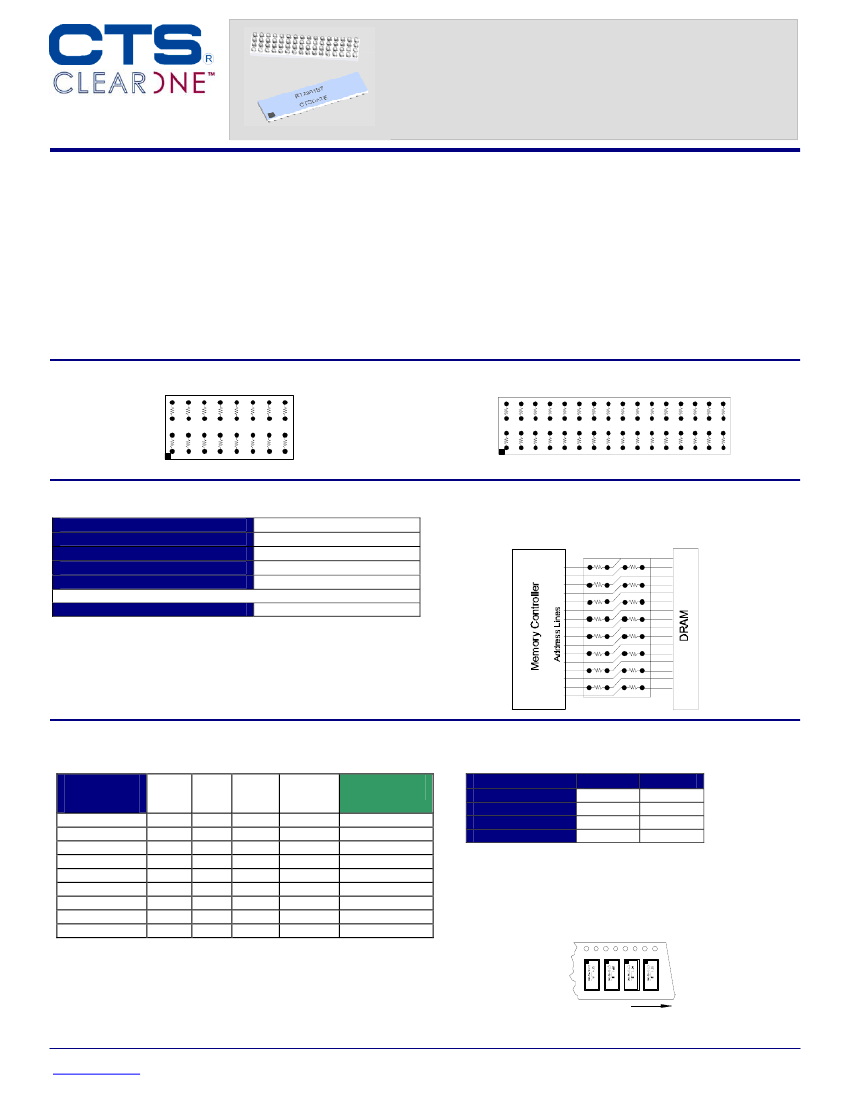

Description
This source terminator network provides high performance
resistor termination for high-speed data busses.
Designed with a ceramic substrate, this device minimizes
channel capacitance, a primary cause of reduced system
performance. In addition, the BGA package eases routing
design, saving the designer many hours of printed circuit layout.
The BGA packaging has been proven to reduce rework and
improve reliability.
Features
•
•
•
•
•
16 or 32 Bit Terminators
Ultra Low I/O Coupling
Slim BGA Package
±1%
Resistor Tolerance
Top Side Probe-able Version Available for
Development
RoHS Compliant Designs Available
•
Compatible with both lead and lead
free processes
•
Style C
4
3
2
1
A
B
C
16 Bits
R1
4
3
2
32 Bits
R1
R1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
R1
D
E
F
G
H
1
Electrical Specifications
Resistor Tolerance:
TCR
Operating Temperature Range
Maximum Resistor Power:
Maximum Package Power:
Process Requirements:
Maximum Temperature
±
1.0%
±200ppm/°C
-55°C to +125°C
0.05 Watts at 70°C
1.0 Watts at 70°C
Per IPC/JEDEC J-STD-020C
Typical Application
DRAM Series Termination
for Address Lines
RT2202B7
Ordering Information
1.00mm Pitch
Standard Part
No.
RT1200B7*
RT1202B7
RT1232B7
RT1233B7
RT1235B7
RT1201B7*
RT1203B7
RT1205B7*
RT1236B7
Style
R1
Ω
Bits
Array
Size
4x8
4x8
4x8
4x8
4x8
4 x 16
4 x 16
4 x 16
4 x 16
1.00mm Pitch
RoHS Part No.
RT2200B7*
RT2202B7
RT2232B7
RT2233B7
RT2235B7
RT2201B7*
RT2203B7
RT2205B7*
RT2236B7
Packaging Information
Suffix
Tape Width
Carrier Pitch
Reel Diameter
Parts/Reel
TR7
24 mm
8 mm
7 inch
1,000
TR13
24mm
8 mm
13 inch
4,000
C
C
C
C
C
C
C
C
C
10
33
22
25
50
10
33
50
100
16
16
16
16
16
32
32
32
32
Part Number Coding
7 inch reel, Add TR7 to part
number, example RT2400B6TR7
13 inch reel, Add TR13 to part
number, example RT2400B6TR13
(Bulk packaging is not available)
* - Indicates Top Side Probable versions available.
Direction of Feed
CTS Electronic Components
www.ctscorp.com
© 2006 CTS Corporation. All rights reserved. Information subject to change.
Page 1
Memory & IDE Terminator
March 06

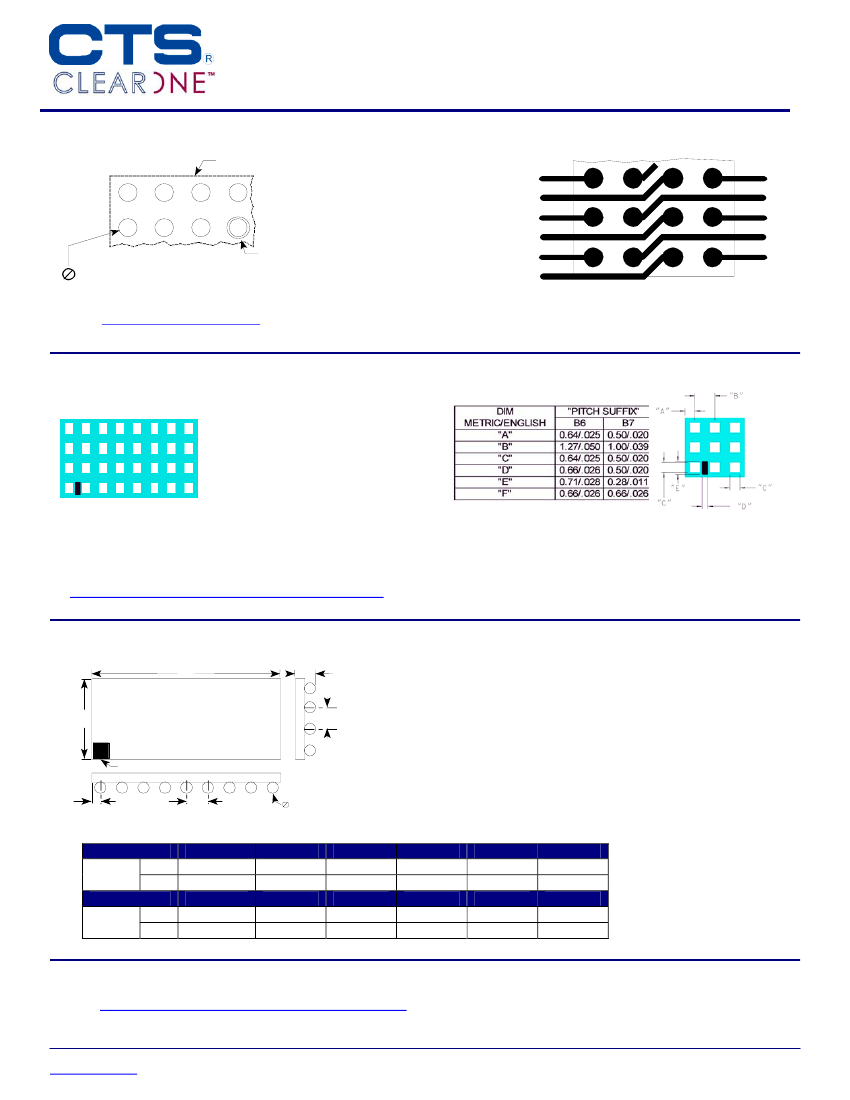

Recommended Land Pattern
Outline of Substrate
BGA Routing Scheme
.005 Inch
Wide Traces
PCB Pad Diameter
1.00mm Pitch (B7) = 0.51mm/.020 inch (minimum)
1.27mm pitch (B6) = 0.64mm/.025 inch (minimum)
For .006" Thick Solder Paste Stencil, Aperture Opening Should
be Equal to the PCB Pad Diameter.
Refer to
www.ctscorp.com/components/clearone.asp
for
additional PCB design information
Solder Mask Dia = Pad
Diameter +.15mm(.006 inch)
Top Side Probe-able Information
Top Side Probe-able Probe
Pad 4x8 Array Shown
Refer to Top Probe-able
Application Notes for additional
information.
Note: Add a ‘P’ suffix to order Top Side Probe-able version.
Example: RT2203B7PTR7.
Refer to the following link for detailed Top Side Probe-able Information:
www.ctscorp.com/components/clearone/TopProveClearOne.pdf
Mechanical Diagram
L
H
W
RT_2__B7
CTS YRWK
P (Pitch)
A1 Identifier
K
P (Pitch)
D
16 Bit
Style C
32 Bit
Style C
mm
inch
mm
inch
L
8.00±0.15
.315±.006
L
16.00±0.15
.630±.006
W
4.00±0.15
.157±.006
W
4.00±0.15
.157±.006
H
1.19±0.15
.047±.006
H
1.19±0.15
.047±.006
P
1.00±0.25
.039±.010
P
1.00±0.25
.039±.010
D
0.64±0.05
.025±.002
D
0.64±0.05
.025±.002
K
0.50±0.25
.020±.010
K
0.50±0.25
.020±.010
Complete ClearONE Product, Processing, and Application Information can be found at the following link:
http://www.ctscorp.com/components/clearone.asp
© 2006 CTS Corporation. All rights reserved. Information subject to change.
Page 2
Memory & IDE Terminator
CTS Electronic Components
www.ctscorp.com
March 06
