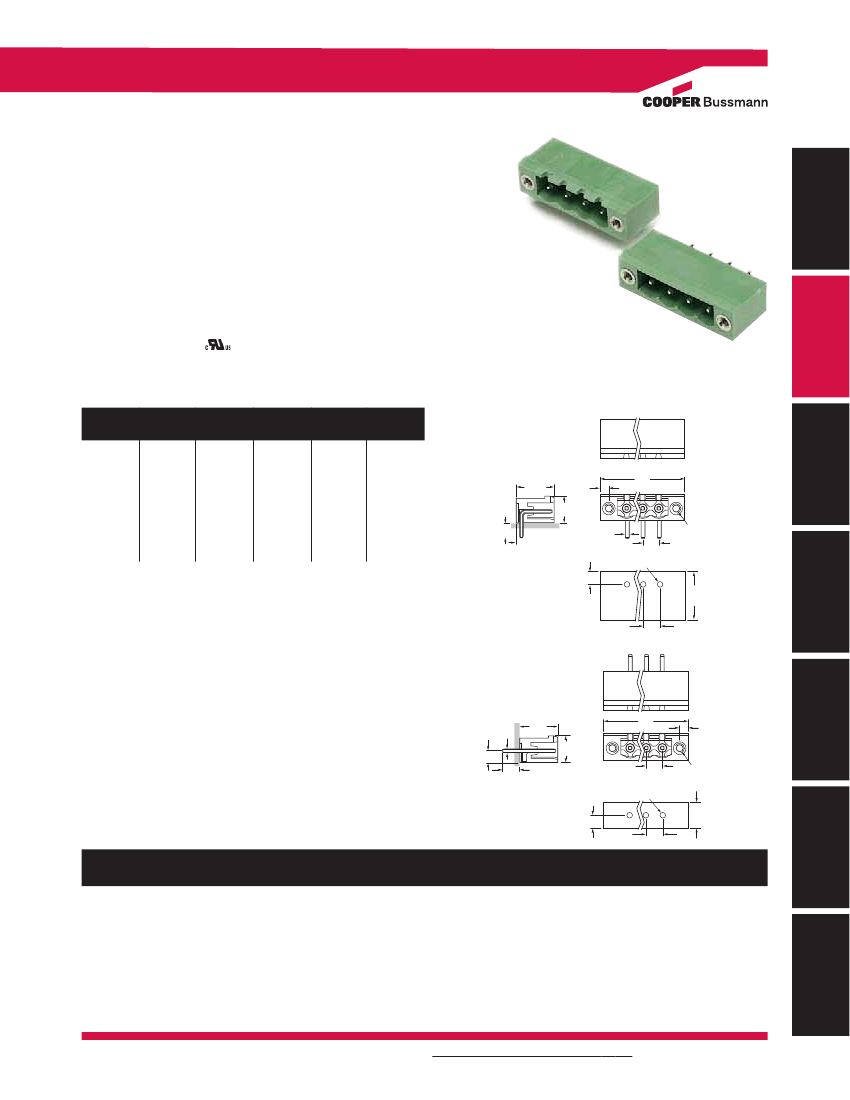

EuroMag Series PCB Mount Pluggable Terminal Blocks
Series EM2218
Header with Flanges; (Mates with EM2118,
EM3118 Series); 5.08 Centers
SPECIFICATIONS:
Rating:
12A, 300V
Center Spacing:
0.20" (5.08mm)
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Brass
Operating Temperature:
105°C (221°F) max., -55°C (-67°F) min.
Recommended PCB Hole Diameters:
0.059" (1.50mm)
Construction:
Mold-to-Length
Agency Information:
File E62622; CE Certified
EM221804H
Terminal Blocks:
Single & Double Row
EuroMag Series
EM221804V
Dimensions - mm (in)
Horizontal
Terminal Blocks:
Base & Rail Mount
Poles
2
3
4
5
6
7
8
9
10
11
L (mm)
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.95
66.04
L (Inch)
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
Poles
12
13
14
15
16
17
18
19
20
L (mm)
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
L (Inch)
2.8
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
0.47"
(12.00)
0.18"
(4.50)
L
0.10"
(2.54)
0.33"
(8.30)
0.07"
(1.80)
0.04"
(1.00)
Ø.06"
(1.50)
M2.6
0.20"
(5.08)
Power Distribution
Blocks
PCB Hole Layout
0.07"
(1.80)
0.20"
(5.08)
0.47"
(12.00)
Vertical
Wire Management
Products
0.15" 0.04"
(3.80) (1.00)
0.47"
(12.00)
0.33"
(8.30)
L
0.10"
(2.54)
0.18"
(4.50)
0.15"
(3.80)
PCB Hole Layout
0.20"
(5.08)
Ø.06"
(1.50)
M2.6
Edge Connectors,
One-Sided Boards
0.33"
(8.30)
0.20"
(5.08)
Part Numbering System
Series
Inches (Millimeters)
Orientation
Mating Plugs:
EM2118 pg. 105
EM3118 pg. 106
E M22 1 8
IIIIII
II
02
to
22
# of Poles
I
H
- Horizontal
V
- Vertical
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
107
