30 dB gain range is controlled by a single control pin
and 50 Ω match is maintained over all settings.
The MAAM-011100 operates from 400 MHz to
20 GHz and features flat gain control from +10 dB to
-20 dB. At maximum gain setting (V
C
=Open) it
delivers up to +18 dBm power and under 5 dB noise
figure. Both reduce proportionally as gain is reduced
with V
C
. The input IP3 exceeds +15 dBm at max/min
gain settings. The device is typically biased with a
V
D
= +5 V, V
G
= -0.5 V, and a control of 0 V to -2 V.
Typical current is 70 mA with V
G
at -0.5 V
The MAAM-011100 is ideally suited for use as a
power amplifier driver, gain trimming block, or
temperature compensation in the receive or transmit
mode. Typical applications include Wi-Fi, LTE.
Point-to-Point, IMS, EW, and A&D systems.
This device is assembled in a leadless 1.5 X 1.2 mm
package that can be handled and placed with
standard pick and place assembly equipment.
RF
IN
/
V
G
3
4
V
C
Pin Configuration
Pin No.
1
2
3
4
5
6
7
Pin Name
RF
OUT
/V
D
N/C
RF
IN
/V
G
V
C
N/C
N/C
Paddle
3
Function
RF Output
No Connection
RF Input
Voltage Control
No Connection
No Connection
Ground
3. The exposed paddle centered on the package bottom must
be connected to RF and DC ground.
Ordering Information
1,2
Part Number
MAAM-011100
MAAM-011100-TR1000
MAAM-011100-001SMB
Package
bulk quantity
1000 piece reel
Sample board
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
MAAM-011100
Broadband Variable Gain Amplifier (VGA)
400 MHz - 20 GHz
Electrical Specifications
(unless
otherwise noted):
Freq = 10 GHz, T
A
= +25C, V
D
= +5 V, V
G
= -0.5 V, V
C
= Open, Z
IN
= Z
OUT
= 50
Ω
Parameter
Highest Gain
Test Conditions
V
C
= open @ 400 MHz
V
C
= open @ 10 GHz
V
C
= open @ 20 GHz
V
C
= -2 V @ 400 MHz
V
C
= -2 V @ 10 GHz
V
C
= -2 V @ 20 GHz
V
C
= 0 to -2 V
All States
All States
All States
At maximum gain
At maximum gain @ 10 GHz
At maximum or minimum gain
Any Load
External Choke
V
D
= +5 V
V
G
= -0.5 V
Units
dB
Min.
8
Typ.
12
10
11
-33
-23
-25
30
28
14
12
5
+15
+15
unconditional
—
—
5
75
0.01
—
—
Max.
—
Rev. V2
Lowest Gain
Gain Control
Isolation
Input Return Loss
Output Return Loss
Noise Figure
P1dB
Input IP3
Stability
Voltage Supply
Bias Current
dB
dB
dB
dB
dB
dB
dBm
dBm
-
V
mA
—
—
—
—
—
—
—
—
-18
—
—
—
—
—
—
—
Absolute Maximum Ratings
4,5,6
Parameter
Input Power
Operating Voltage
Operating Current
Junction Temperature
7
Absolute Max.
+15 dBm
+8 Volts
110 mA
+150°C
-40°C to +85°C
-65°C to +150°C
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
Operating Temperature
Storage Temperature
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. MACOM does not recommend sustained operation near
these survivability limits.
6. Operating at nominal conditions with T
J
≤ 150°C will ensure
MTTF > 1 x 10
6
hours.
7. Junction Temperature (T
J
) = T
C
+
Ө
JC
* ((V * I) - (P
OUT
- P
IN
))
Typical thermal resistance (Ө
JC
) = 67°C/W
a) For T
C
= 25°C,
T
J
= 47°C @ 5 V, 70 mA, P
OUT
= 15 dBm, P
IN
= 6 dBm
b) For T
C
= 85°C,
T
J
= 107°C @ 5 V, 70 mA, P
OUT
= 15 dBm, P
IN
= 6 dBm
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
MAAM-011100
Broadband Variable Gain Amplifier (VGA)
400 MHz - 20 GHz

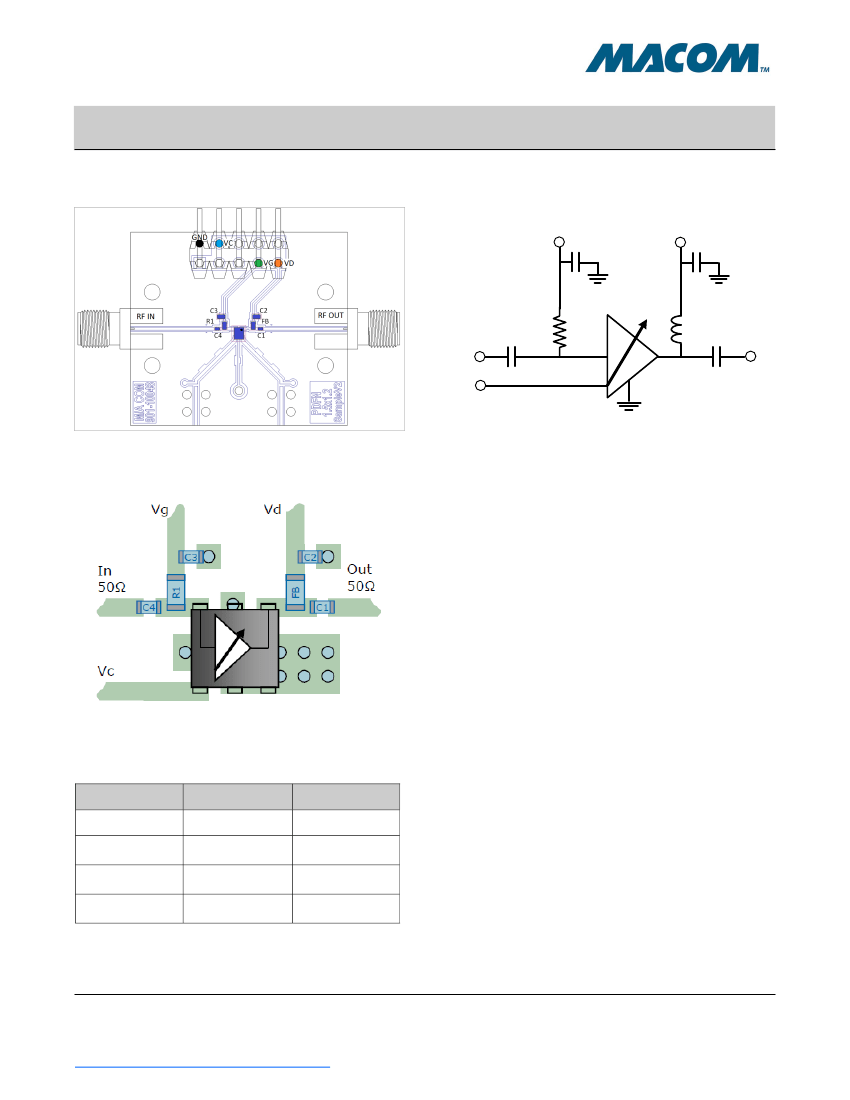

Evaluation Board
Application Schematic
V
G
V
D
Rev. V2
C3
C2
RF
IN
V
C
C4
R1
3
4
1
2, 5, 6
FB
C1
RF
OUT
Recommended PCB Layout
Application Information for DC & pins
For proper MAAM-011100 operation a DC voltage
must be applied at the V
G
(-0.5V) and V
D
(+5V) pins
in that order.
Adjusting V
G
from -0.2 V to -0.6 V will
change the quiescent current which can effect power
and linearity if set below or above 70 mA.
The gain of the MAAM-011100 is controlled with the
V
C
pin. The gain reduction is almost linear with V
C
between 0 V to -2 V. Below -2 V internal ESD
protection diodes will draw increasing current. The
nominal open circuit voltage at the V
C
pin is +1 V
and produces maximum gain and power. Limiting
applications and zero crossing adjustment can be
done by adjusting the V
G
and V
C
pins together.
To bias properly, a DC voltage must be applied at
the output pin. Typically this is done with a 2
element bias network that consists of a choke and a
DC blocking capacitor. We recommend a ferrite
bead for the main bias choke and quality capacitor
for the DC block. A simple 1 KΩ resistor can be used
as a RF choke for the negative V
G
as applied to the
input pin.
It is recommended that the total ground (common
mode) inductance not exceed 0.03 nH (30 pH). This
is equivalent to placing at least four 8-mil (200-µm)
diameter vias under the device, assuming an 8-mil
(200-µm) thick RF layer to ground
Parts List
Component
C1, C4
C2, C3
FB
8
R1
Value
0.22 µF
0.22 µF
407 Ω
1 KΩ
Package
0201
0402
0402
0402
8.
MACOM recommends using Murata part BLM15GG471.
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
MAAM-011100
Broadband Variable Gain Amplifier (VGA)
400 MHz - 20 GHz

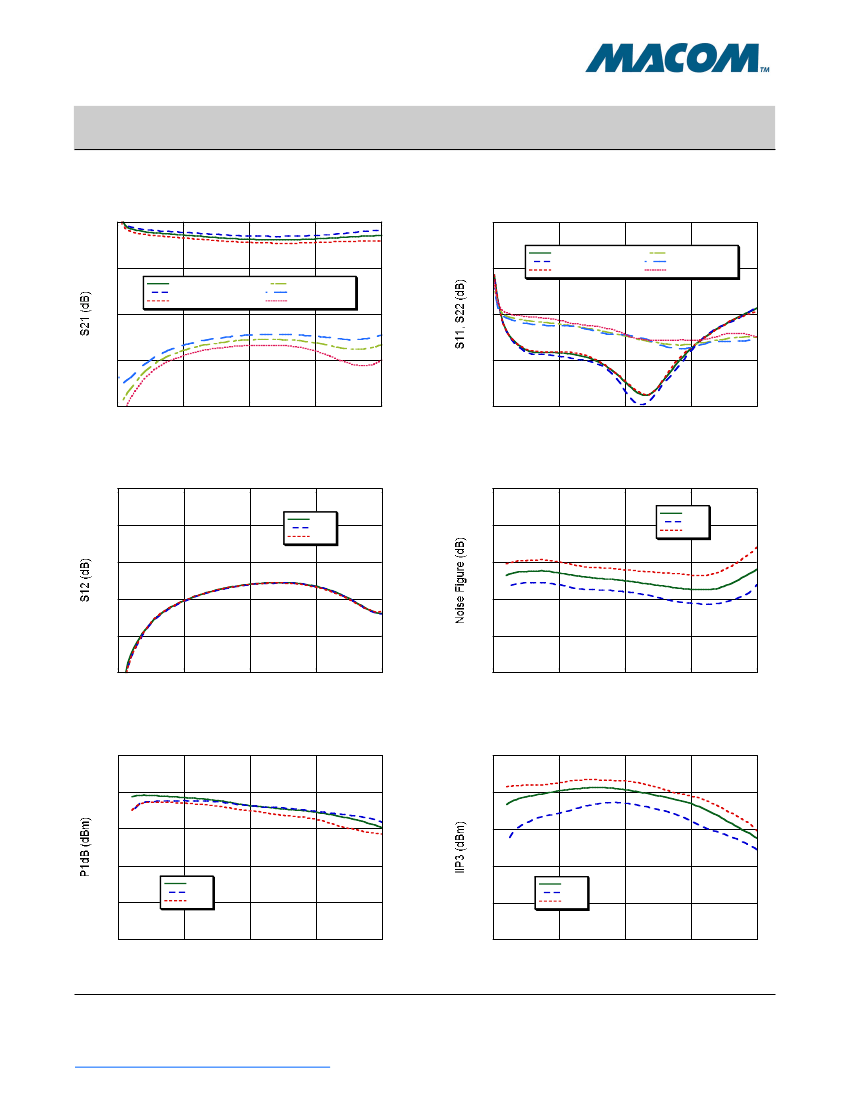

Typical Performance Curves over Temperature
Gain, V
C
= 0 V, -2 V
15
Rev. V2
Return Loss
10
Input RL @ +25°C
Input RL @ -40°C
Input RL @ +85°C
Output RL @ +25°C
Output RL @ -40°C
Output RL @ +85°C
0
VC = Open @ +25°C
VC = Open @ -40°C
VC = Open @ +85°C
VC = -2 V @ +25°C
VC = -2 V @ -40°C
VC = -2 V @ +85°C
0
-15
-10
-30
-20
-45
0
5
10
15
20
-30
0
5
10
15
20
Frequency (GHz)
Frequency (GHz)
Reverse Isolation
0
+25°C
-40°C
+85°C
Noise Figure
10
+25°C
-40°C
+85°C
-10
8
-20
6
-30
4
-40
2
-50
0
5
10
15
20
0
0
5
10
15
20
Frequency (GHz)
Frequency (GHz)
Output P1dB
20
Input IP3
20
16
16
12
12
8
+25°C
-40°C
+85°C
8
+25°C
-40°C
+85°C
4
4
0
0
5
10
15
20
0
0
5
10
15
20
Frequency (GHz)
Frequency (GHz)
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
MAAM-011100
Broadband Variable Gain Amplifier (VGA)
400 MHz - 20 GHz

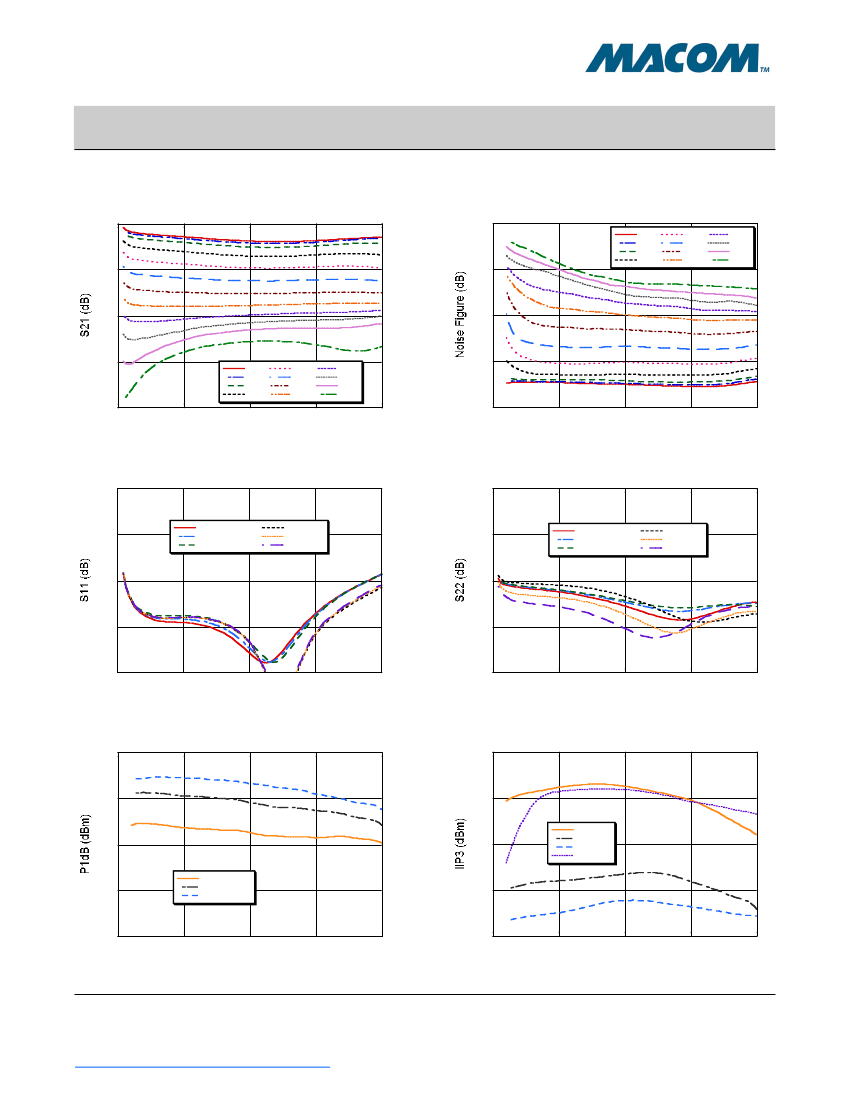

Typical Performance Curves vs. Control Voltage
Gain
15
Rev. V2
Noise Figure
40
open
0V
-0.2 V
-0.4 V
-0.6 V
-0.8 V
-1.0 V
-1.2 V
-1.4 V
-1.6 V
-1.8 V
-2.0 V
0
30
-15
20
-30
open
0V
-0.2 V
-0.4 V
-0.6 V
-0.8 V
-1.0 V
-1.2 V
-1.4 V
-1.6 V
-1.8 V
-2.0 V
10
-45
0
5
10
15
20
0
0
5
10
15
20
Frequency (GHz)
Frequency (GHz)
Input Return Loss
10
Output Return Loss
10
0
VC = Open, 3 V
VC = Open, 5 V
VC = Open, 7 V
VC = -2, 3 V
VC = -2, 5 V
VC = -2, 7 V
0
VC = Open, 3 V
VC = Open, 5 V
VC = Open, 7 V
VC = -2, 3 V
VC = -2, 5 V
VC = -2, 7 V
-10
-10
-20
-20
-30
0
5
10
15
20
-30
0
5
10
15
20
Frequency (GHz)
Frequency (GHz)
Output P1dB
20
Input IP3
20
15
15
VC = Open
VC = 0 V
VC = -1 V
VC = -2 V
10
10
5
VC = Open, 3 V
VC = Open, 5 V
VC = Open, 7 V
5
0
0
5
10
15
20
0
0
5
10
15
20
Frequency (GHz)
Frequency (GHz)
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
