ILCX03-BF9F18-40.000 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ILCX03-BF9F18-40.000

ILCX03-BF9F18-40.000: DescriptionParallel - Fundamental Quartz Crystal, 40MHz Nom, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size58KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

ILCX03-BF9F18-40.000 Overview

Parallel - Fundamental Quartz Crystal, 40MHz Nom, SMD, 2 PIN

ILCX03-BF9F18-40.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
Other features	AT CUT; PACK QTY 1000 ALSO AVAILABLE
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
physical size	5.0mm X 3.2mm X 1.3mm
Series resistance	30 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

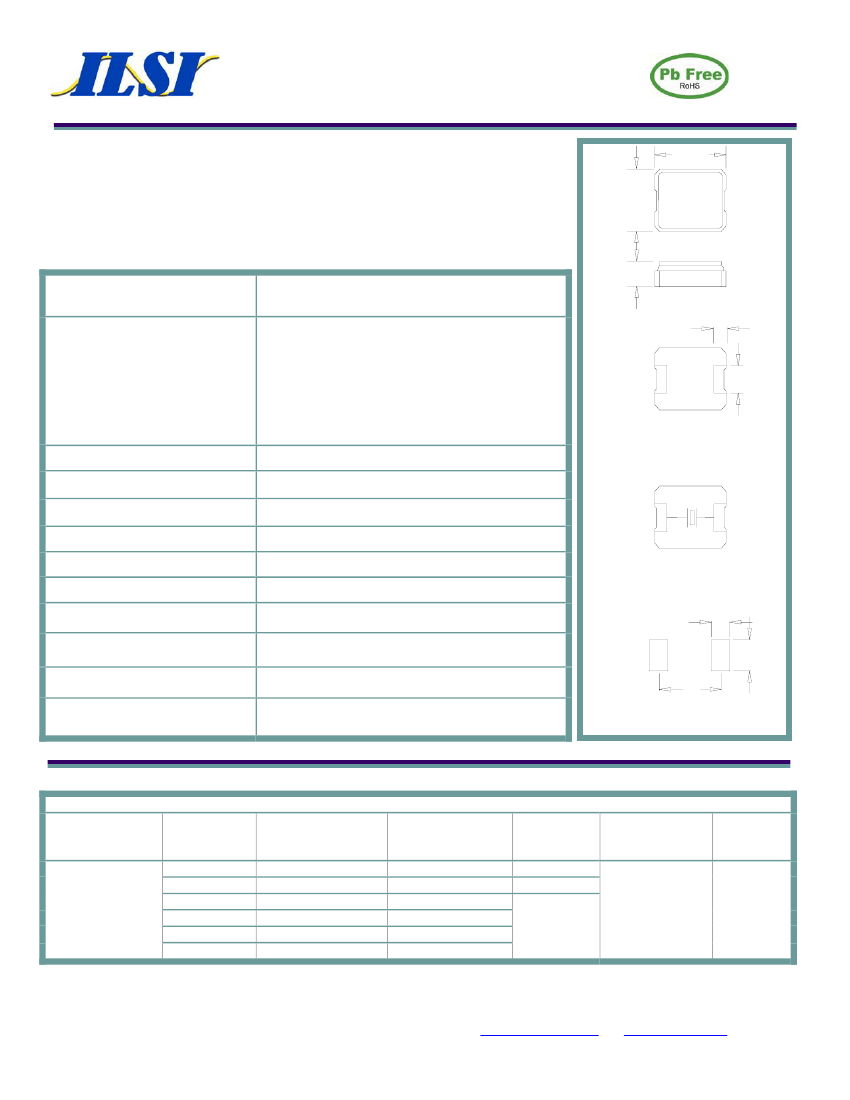

2 Pad Ceramic Package Quartz Crystal, 3.2 mm x 5 mm

Product Features:

Low Cost SMD Package

Low ESR

Compatible with Leadfree Processing

ILCX03 Series

5.0

Applications:

Fibre Channel

Server & Storage

Sonet /SDH

802.11 / Wifi

T1/E1, T3/E3

3.2

Frequency

10 MHz to 100 MHz

1.3 Max.

1.3

ESR (Equivalent Series Resistance)

10.0 MHz – 13.9 MHz

14.0 MHz – 19.9 MHz

20.0 MHz – 39.9 MHz

40.0 MHz – 66.0 MHz

30.0 MHz – 100.0 MHz (3 O.T.)

100

Max.

2.00

Shunt Capacitance (C0)

Frequency Tolerance @ 25

Frequency Stability over

Temperature

Crystal Cut

Load Capacitance

Drive Level

Aging

Temperature

Operating

Storage

7 pF Max.

30 ppm Standard (see Part Number Guide for more

options)

50 ppm Standard (see Part Number Guide for more

options)

AT Cut

18 pF Standard (see Part Number Guide for more options)

500 uW Max.

5 ppm Max. / Year Standard

Connection Diagram

Recommended pad layout

1.5

2.4

0 C to +70 C Standard (see Part Number Guide for more

options)

-40 C to +85 C Standard

3.5

Dimension Units: mm

Part Number Guide

Package

Stability

(ppm) at Room

Temperature

B = ±50 ppm

F = ±30 ppm

ILCX03 -

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm

J = ±10 ppm*

Sample Part Number:

Stability

(ppm) over Operating

Temperature

B = ±50 ppm

F = ±30 ppm

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm**

J = ±10 ppm**

ILCX03 - FB1F18 - 20.000

Operating

Temperature Range

0 = 0°C to +50°C

1 = 0°C to +70°C

2 = -10°C to +60°C

3 = -20°C to +70°C

5 = -40°C to +85°C

9 = -10°C to +50°C

Mode

(overtone)

F = Fundamental

3 = 3

overtone

Load Capacitance

(pF)

Frequency

18 pF Standard.

Or Specify

- 20.000 MHz

* Not available at all frequencies. ** Not available for all temperature ranges.

e-mail@ilsiamerica.com

•

www.ilsiamerica.com

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

02/09

Specifications subject to change without notice

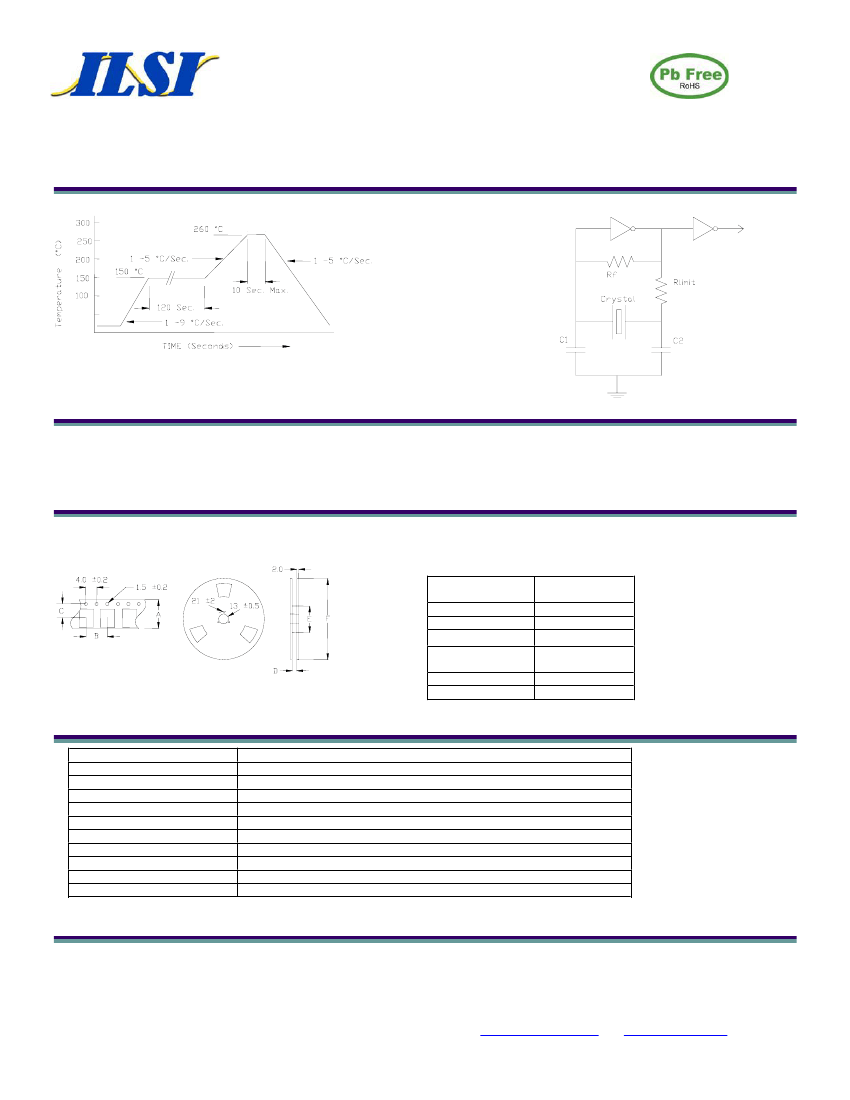

Page 1
