This power amplifier is specifically designed for use
in point-to-point radios for cellular backhaul
applications in the 23 GHz band.

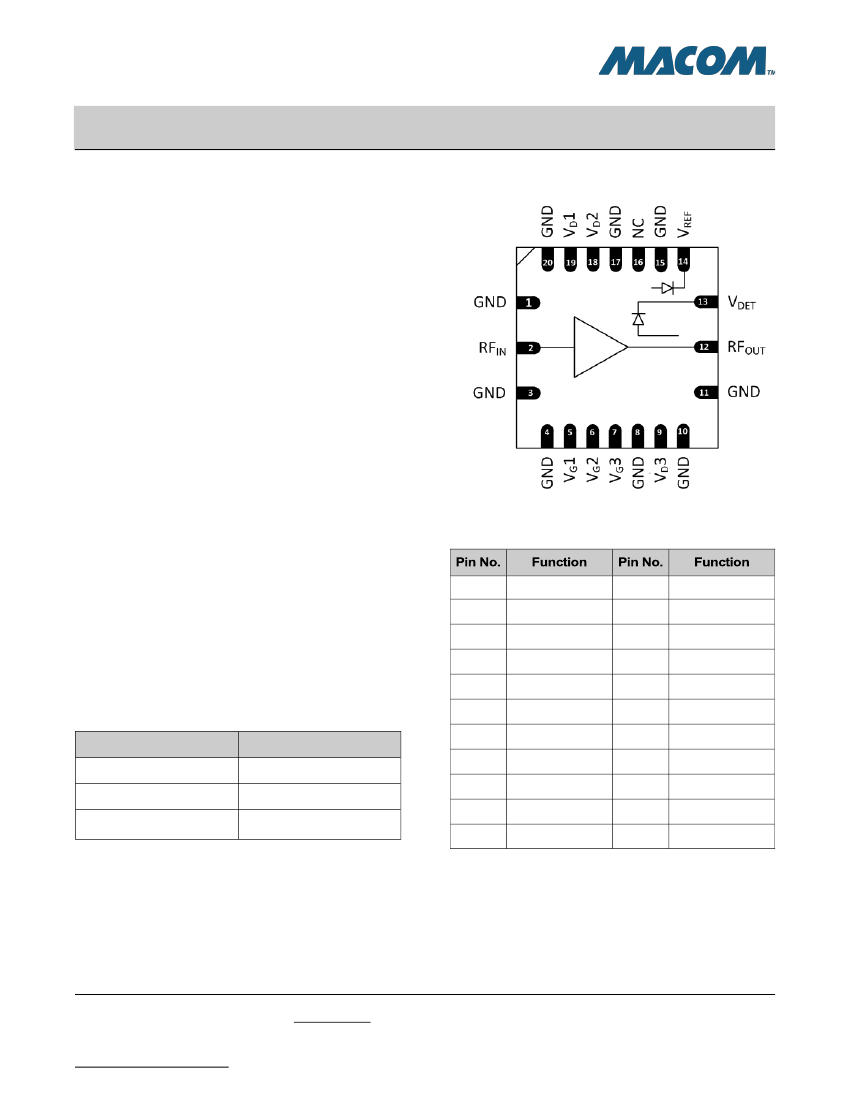

Pin Configuration
2
1
2
3
4
5
Ground
RF Input
Ground
Ground
Gate 1 Bias
Gate 2 Bias
Gate 3 Bias
Ground
Drain 3 Bias
Ground
11
12
13
14
15
16
17
18
19
20
21
3
Ground
RF Output
Power Detector
Reference
Ground
No Connection
Ground
Drain 2 Bias
Drain 1 Bias
Ground
Paddle
Ordering Information
1
Part Number
MAAP-011146-STD
MAAP-011146-STR500
MAAP-011146-001SMB
Package
Bulk Quantity
500 piece reel
Sample Board
6
7
8
9
10
1. Reference Application Note M513 for reel size information.
2. All “No Connection” pins should be grounded.
3. The exposed pad centered on the package bottom must be
connected to RF, DC and thermal ground.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAP-011146-STD
Power Amplifier, 2 W
21.15 - 23.65 GHz
Electrical Specifications: V
DD
= 6 V, I
DQ4
= 1330 mA, T
A
= +25°C
Small Signal Gain
P
SAT
Output IP3, +20 dBm SCL
Output IP3, +24 dBm SCL
P1dB
Input Return Loss
Output Return Loss
Detector V
diff
, POUT= +20 dBm
Noise Figure
Gain Ripple over frequency
Gate Voltage
dB
dBm
dBm
dBm
dBm
dB
dB
V
dB
dB
V
21.7
34
39.25
37.25
—
—
—
0.5
—
—
—
24.0
35
41.00
39.00
34
15
10
1.1
6
2
—
28.3
—
—
—
—
—
—
1.7
—
—
-0.60
Rev. V2
4. Adjust V
G
1, V
G
2 and V
G
3 between -1.2 and -0.6 V to achieve specified I
DQ
(I
DQ
= I
D
1+I
D
2+I
D
3). V
G
1, V
G
2 and V
G
3 are nominally the same
voltage.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAP-011146-STD
Power Amplifier, 2 W
21.15 - 23.65 GHz
Absolute Maximum Ratings
5,6,7
Parameter
Rating
Rev. V2
Maximum Operating Ratings
8,9
Parameter
PDISS
Junction Temperature
Operating Temperature
Rating
11.2 W
+150°C
-40°C to +85°C
Input Power
Drain Voltage (V
D
1,2,3)
Gate Voltage (V
G
1,2,3)
Drain to Gate Voltage
(V
D
-V
G
)
Current (I
DQ
= I
D
1+I
D
2+I
D
3)
Detector Pin
Detector Reference Pin
Detector Pout
Junction Temperature
Storage Temperature
18 dBm
7V
-3 V
10 V
2000 mA
6V
6V
35 dBm
+175°C
-65°C to +150°C
8. Channel temperature directly affects device MTTF. Chanel
temperature should be kept as low as possible to maximize
lifetime. Thermal resistance,
Θjc,
is 5.8 °C/W.
9. For saturated performance, it is recommended that the sum
of (2V
DD
+ abs (V
GG
)) < 15 V.
Handling Procedures
Please observe the following precautions to avoid
damage:
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6. MACOM does not recommend sustained operation near these
survivability limits.
7. Operating at nominal conditions with T
J
≤ +150°C will ensure
MTTF > 1 x 10
6
hours.
Static Sensitivity
These electronic devices are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these CDM class 2,
HBM class 1B devices.
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAP-011146-STD
Power Amplifier, 2 W
21.15 - 23.65 GHz

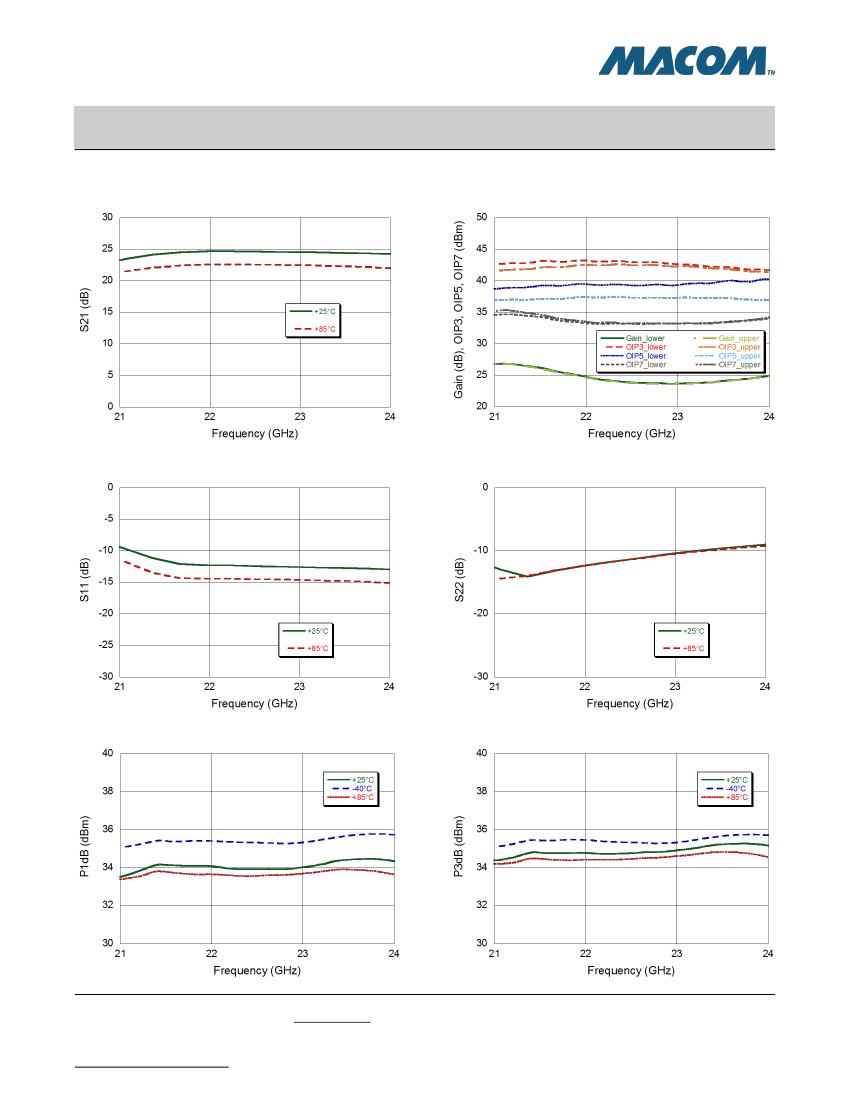

Typical Performance Curves: 8 W Quiescent Bias, V
D
= 6 V
Gain
Gain, OIP3, OIP5, OIP7 @ P
IN
= -6 dBm per tone
Rev. V2
Input Return Loss
Output Return Loss
P1dB
P3dB
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAP-011146-STD
Power Amplifier, 2 W
21.15 - 23.65 GHz

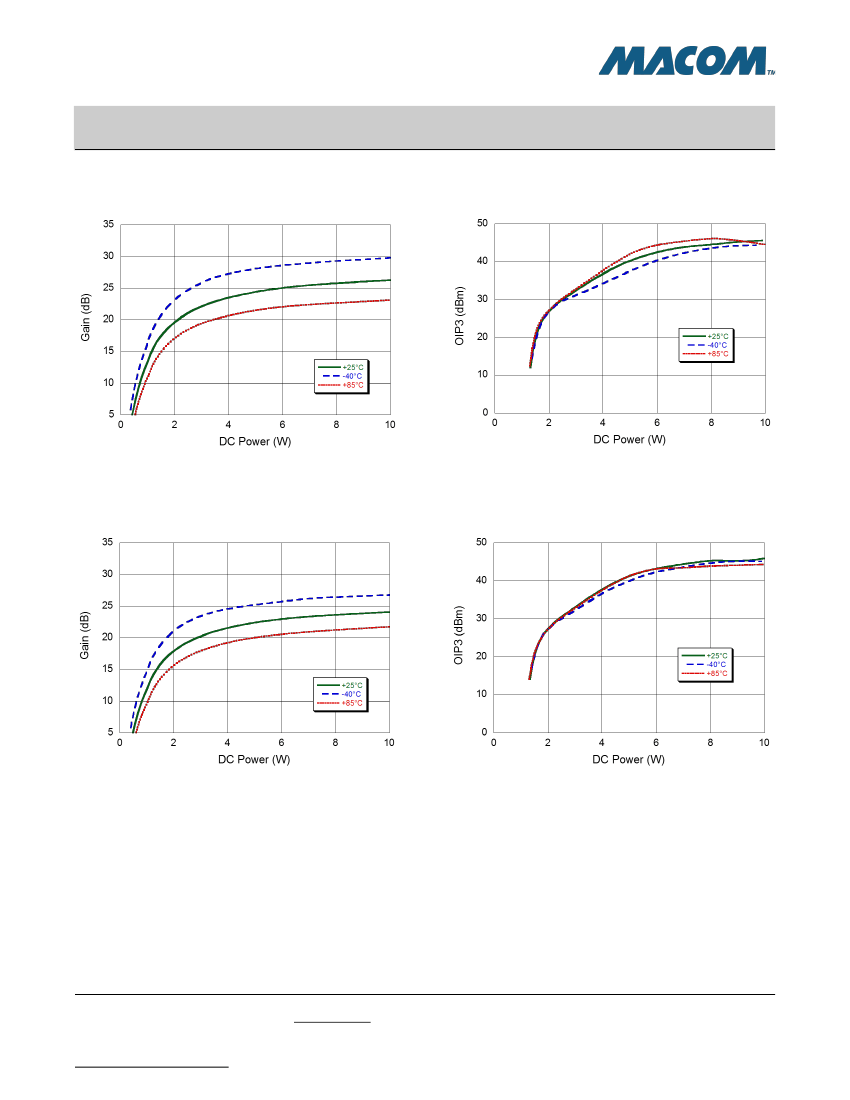

Typical Performance Curves: V
D
= 6 V
Gain @ 21.2 GHz
OIP3 @ 21.2 GHz
Rev. V2
Gain @ 22.2 GHz
OIP3 @ 22.2 GHz
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
