RK73BW3A2TTED624G datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RK73BW3A2TTED624G

RK73BW3A2TTED624G: DescriptionFixed Resistor, Metal Glaze/thick Film, 2W, 620000ohm, 200V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP; CategoryPassive components The resistor; File Size153KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

RK73BW3A2TTED624G Overview

Fixed Resistor, Metal Glaze/thick Film, 2W, 620000ohm, 200V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP

RK73BW3A2TTED624G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	6.3 mm
Package form	SMT
Package width	3.1 mm
method of packing	TR, EMBOSSED PLASTIC, 10 INCH
Rated power dissipation(P)	2 W
Guideline	AEC-Q200
resistance	620000 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	200 V

Preview

Download Datasheet

View All

general purpose 2%, 5% tolerance

thick film chip resistor

features

•

Products with lead-free terminations

meet EU RoHS requirements. EU RoHS

regulation is not intended for Pb-glass contained

in electrode, resistor element and glass.

•

AEC-Q200 Qualified: 0201 (1H), 0402 (1E), 0603 (1J),

0805 (2A), 1206 (2B), 1210 (2E), 2010 (2H/W2H),

2512 (3A/W3A/W3A2)

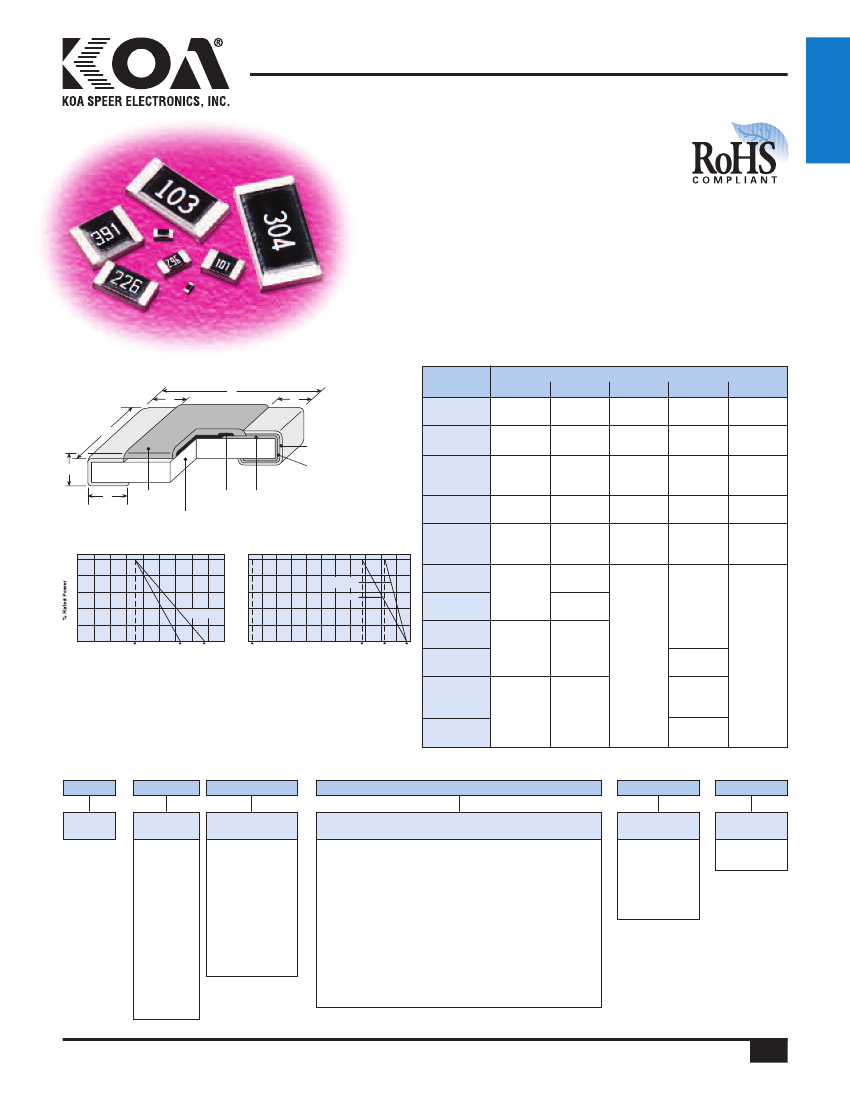

dimensions and construction

Type*

(Inch Size Code)

Dimensions

inches

(mm)

(01005)

Solder

Plating

.015±.001 .007±.001 .004±.001 .004±.001 .005±.001

(0.4±0.02) (0.2±0.02) (0.10±0.03) (0.11±0.03) (0.13±0.02)

.024±.001 .012±.001 .004±.002 .006±.002 .009±.001

(0.6±0.03) (0.3±0.03) (0.1±0.05) (0.15±0.05) (0.23±0.03)

.039

(1.0

+.004

-.002

+0.1

)

-0.05

+.002

.02±.002 .008±.004 .01

-.004

.014±.002

(0.5±0.05) (0.2±0.1) (0.25

+0.05

) (0.35±0.05)

-0.1

(0201)

(0402)

(0603)

(0805)

Protective

Coating

Resistive Inner

Film

Electrode

Plating

Ceramic

Substrate

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1)

(0.3±0.1) (0.45±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.102±.008

(2.6±0.2)

.197±.008 .098±.008

(5.0±0.2)

(2.5±0.2)

.012

(0.3

+.008

-.004

+0.2

)

-0.1

Derating Curve

100

% Rated Power

100

1H, 1E, 1J, 2A, 2B, 2E,

W2H, W3A (1W)

.02±.004

(0.5±0.1)

(1206)

(1210)

(2010)

W2H

(2010)

-60 -40

-55

W3A2

.016

(0.4

1E, 1H, 1J, 2A, 2B, 2E, 2H,

3A, W2H, W3A

+.008

-.004

+0.2

-0.1

)

100 120

140

160 180

125

155

Ambient Temperature

(°C)

-20

100 120

140 160

125

155

Terminal Part Temperature

(°C)

For resistors operated at an ambient

temperature of 70°C or above, a power

rating shall be derated in accordance

with the above derating curve.

For resistors operated at a terminal part

temperature of described for each size or

above, a power rating shall be derated in

(2512)

accordance with the above derating curve.

Please refer to “Introduction of the derating

W3A/W3A2

curve based on the terminal part temperature”

(2512)

in the beginning of our catalog before use.

.02±.012 .026±.006 .024±.004

(0.5±0.3) (0.65±0.15) (0.6±0.1)

.016

(0.4

+.008

-.004

+0.2

)

-0.1

.248±.008 .122±.008

(6.3±0.2)

(3.1±0.2)

.026±.006

(0.65±0.15)

ordering information

RK73B

Type

Size

W2H

W3A

W3A2

Termination

Material

T: Sn

(1F ~ W3A2)

Contact factory

for below options:

L: SnPb

(1E, 1J, 2A, 2B,

2E, 2H, 3A)

G: Au

(1E ~ 2A:

10Ω ~ 1MΩ)

* Parentheses indicate EIA package size codes.

Packaging

TX: 01005 only: 4mm width - 1mm pitch plastic embossed

TBL: 01005 only: 2mm pitch pressed paper

TC: 0201 only: 7" 2mm pitch pressed paper

(TC: 10,000 pcs/reel, TCM: 15,000 pcs/reel)

TCD: 0201 only: 10" 2mm pitch pressed paper

TPD: 0402 only: 10" 2mm pitch plastic embossed

TPL: 0402 only: 2mm pitch punched paper

TP: 0402, 0603 & 0805: 7" 2mm pitch punched paper

TD: 0603, 0805, 1206 &1210: 7" 4mm pitch punched paper

TDD: 0603, 0805, 1206 &1210: 10" paper tape

TE: 0805, 1206, 1210, 2010 & 2512: 7" plastic embossed

TED: 0805, 1206, 1210, 2010 & 2512: 10" plastic embossed

For further information on packaging, please refer to Appendix A

102

Nominal

Resistance

2 significant

figures + 1

multiplier

“R” indicates

decimal on

value <10Ω

Tolerance

G: ±2%

J: ±5%

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/04/19

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

resistors

RK73B

Recommended Resources

Interface method between MCM2814 and MCS-51 microcontroller

AC current detection circuit 02

Simple voltage doubler generator circuit

Functional block diagram of EXB series driver

Computer motherboard circuit diagram 810 4_30

Design of Intelligent Mobile Information Terminal Based on Windows CE.net: Introduction　　　　 In recent years, the application of Internet and network has been rapidly popularized and continuously expanded to the home field, making the integration trend of consumer electronics...; rain MCU

How to set differential traces for high-speed USB positive and negative in AD16 PCB: How to set up differential traces for high-speed USB positive and negative in AD16 PCB?...; zttian PCB Design

Simple voltage meter driven by tm1629 digital tube: [i=s] This post was last edited by zjw5000 on 2014-9-2 20:22 [/i] I have verified all the modules in the past few days. NEC chips are very useful. Now they have to change to Renesas. :lol I have verif...; zjw5000 Renesas Electronics MCUs

Transfer: Selection of microcontroller: Choose a microcontroller based on your needs. If it is only used for simple electromechanical control, use a 51 microcontroller. If it involves low-power design, use an MSP430 microcontroller. If you ...; Syaringan_lee Robotics Development

Hey guys, who made an MSP430 microcontroller music box when they were young? Come and have a look.: Please give me some advice, I will come to watch it on time every day. It uses a buzzer to play music, the LED flashes, and a digital tube to display the needs, and buttons to change songs and pause. ...; shyatupc Microcontroller MCU

Black Gold AX301-Altera FPGA Video Image Processing Kit (90% new): Complete black gold AX301-Altera FPGA development board kit, including downloader, 4.3-inch display and OV7670 camera, suitable for video image processing development and learningCurrent price 200-fre...; CP19940613 Buy&Sell
