GWLX-SMT-N-88G/Y-50: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size611KB，2 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

GWLX-SMT-N-88G/Y-50 Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, Jack, ROHS COMPLIANT

GWLX-SMT-N-88G/Y-50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	GOLD (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	GWLX-SMT
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	8

Preview

Download Datasheet

View All

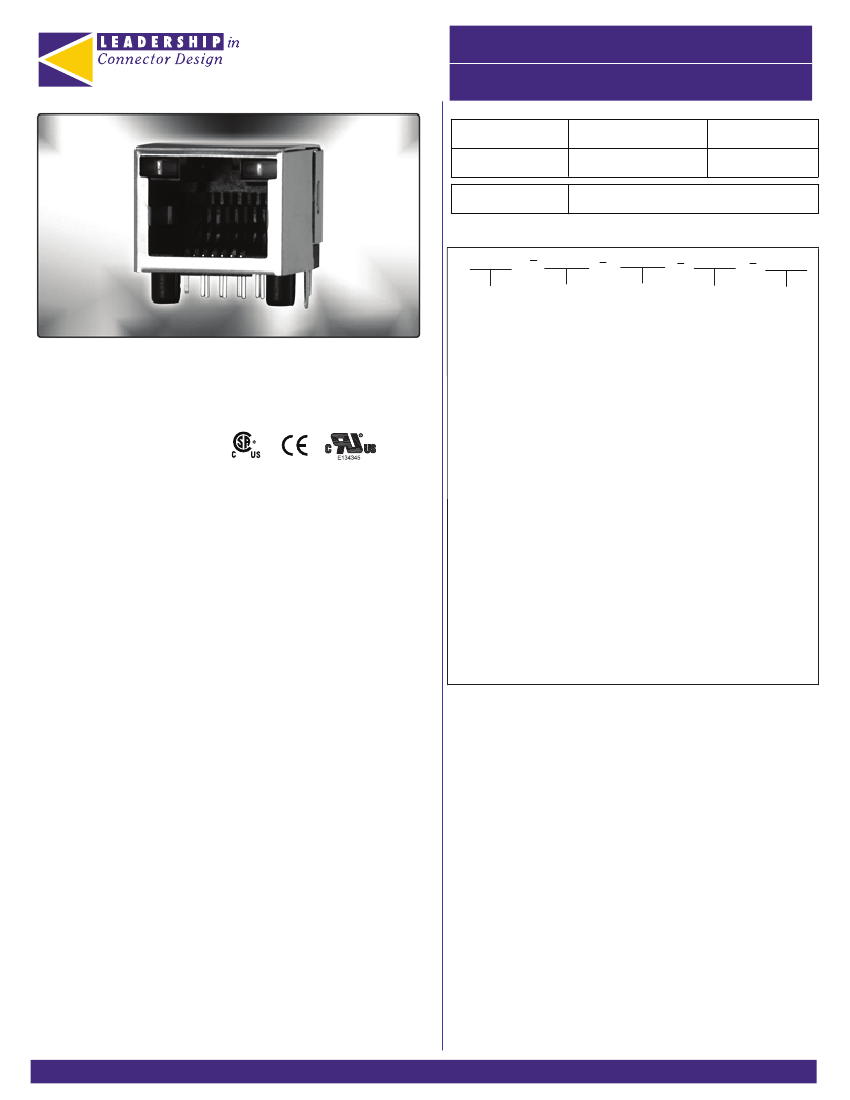

MODULAR JACKS & PLUGS

KYCON

RoHS

GWLX / GWLX-SMT Series

Documentation &

Ordering Information

Drawing

Sample

Stock

Email

CofC

RFQ

Kycon Part #

GWLX-N-88-G/Y

Part Number Builder

GWLX

Series

N

Shield

Option

88

No.of

Positions &

Contacts

G/Y

LED

Color Option

Plating

Option

Right Angle Modular Jack with LED,Tab up

Features

• Snap-In Retention Tabs

• Available Fully Shielded for EMI/RFI Protection

• Available Through Hole and Surface Mount

• CSA/NRTL Certified File No. LR78160

GWLX/GWLX-SMT Series

Series

GWLX

- Modular Jack with LED, Through Hole

GWLX-SMT

- Modular Jack with LED, Through Hole

Shield Options

N

- Non-Shielded

N

S

- Fully Shielded

S2

- Fully Shielded with Side Ground Tabs

S9

-

Shielded with Top & Side Tabs

LR78160

• Easy Viewing LEDs to Act as Power/Transmit Indicators

Number of Positions/Contacts

88

-

8 Positions / 8 Contacts

Performance Specifications

Materials and Finish

Housing Material

High Temperature Thermoplastic

Shield Material

Copper Alloy, Nickel Plated

Contact Material

Phosphor Bronze

LED Color

G/G

- Left: Green, Right: Green

Y/Y

- Left: Yellow, Right: Yellow

Y/G

- Left: Yellow, Right: Green

G/Y

- Left: Green, Right: Yellow

G/R

- Left: Green, Right: Red

Plating Option

Blank

- Gold Flash

Blank

50

- 50µ" Gold Plating

Contact Kycon for LED and other options.

Electrical Characteristics

Insulation Resistance

500 Megohms Min.

Contact Resistance

20 milliohms Max.

Current Rating

1.5A

Voltage Rating

125V DC

Mechanical Characteristics

Operating Temperature

-40°C to +85°C

Durability Rating

500 Mating Cycles Min.

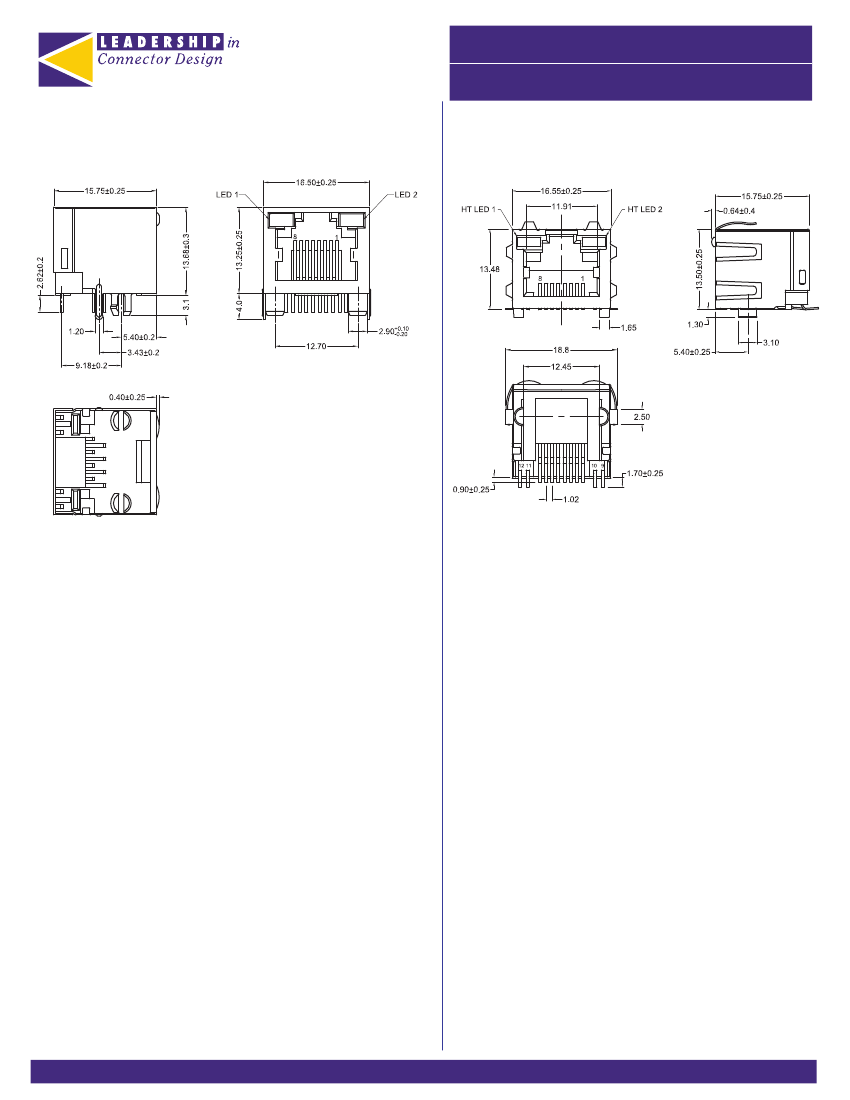

*See next page for dimension

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

X

2013

GWLX-SMT-N-88G/Y-50 Related Products

	GWLX-SMT-N-88G/Y-50	GWLX-SMT-S2-88-Y/G-50
Description	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Surface Mount Terminal, Jack, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Body/casing type	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50)	GOLD (50)
Contact completed and terminated	GOLD (50)	GOLD (50)
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	GWLX-SMT	GWLX-SMT
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	8	8
