K22XHT-EBS-NT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> K22XHT-EBS-NT

K22XHT-EBS-NT: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Plug,; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K22XHT-EBS-NT Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Plug,

K22XHT-EBS-NT Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.43 inch
body length	2.088 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	700VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	K22XHT
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .125-.137
Installation option 2	RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

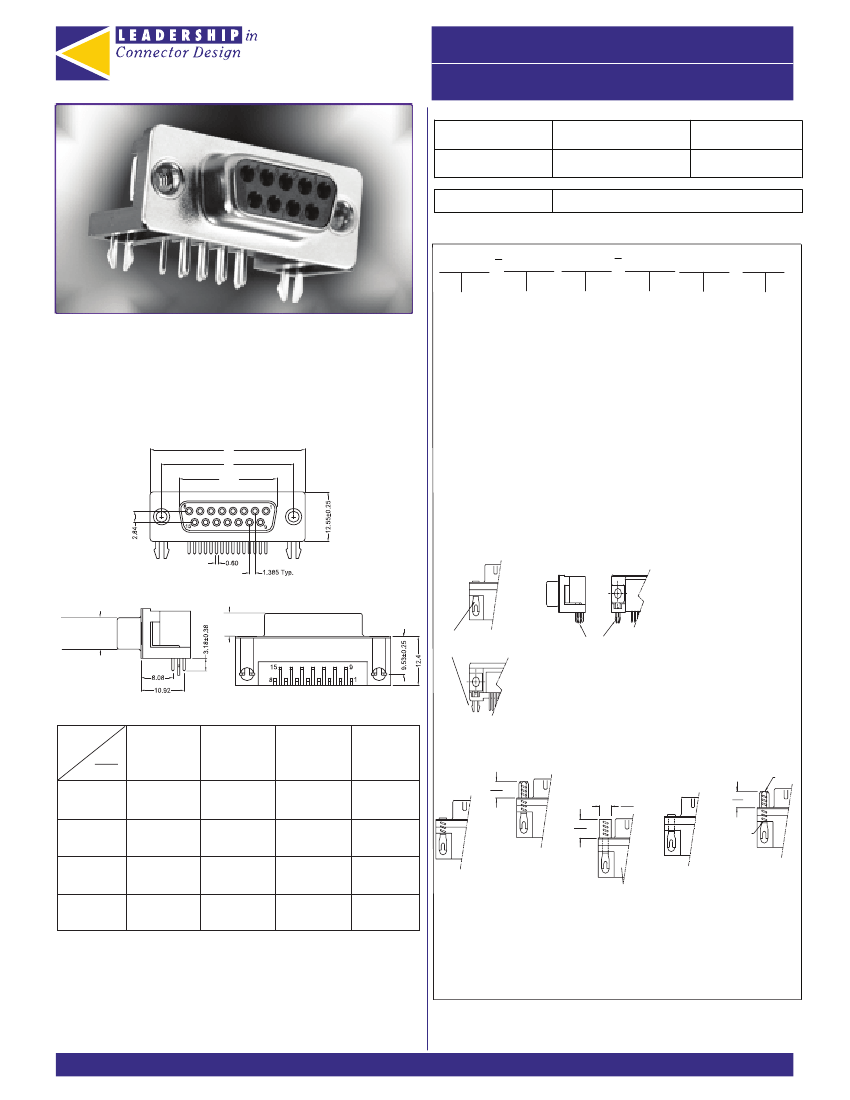

D-SUBMINIATURE CONNECTORS

KYCON

RoHS

K22XHT Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

Kycon Part #

K22XHT-E9P-N

Part Number Builder

K22XHT

Series

High Temp. Right Angle PCB Mount .318" Footprint

K22XHT Series Dimensions

K22XHT Series

Shell

Size

Contact

Type

Pictured with Board Lock Option, Dimensions in mm

A, A1

Series

K22XHT - Reflow Compatible Version

Shell Size-Contact Option

E - 9 Contacts

A - 15 Contacts

B - 25 Contacts

C - 37 Contacts

Contact Type

P - Pin Contact (Plug)

S - Socket Contact (Receptacle)

PC Board Mounting Option

Front Panel Plating

PCB

Mounting Mounting Option

Options Options

N Option

NV Option

8.36 Plug Interior,

7.90 Socket Exterior

6.1 Plug,

5.8 Socket

Grounding

Bracket

4 Prong

Grounding Bracket

Shell

Size

(E)

(A)

(B)

(C)

±.010

±0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

±.010

±0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

±.005

±0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

±.015

±0.38

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

Front Panel Mounting Option

Standard

(4-40)Riveted

Threaded Insert

5.00

.197

J Option

R Option

Ø5.0

.197

6.00

.236

T Option

JM Option

5.00

.197

(4-40) Round Jack Screws Riveted Non-Threaded

Insert 3.18/.125" Dia.

Riveted to Connector

4-40

(4-40)Riveted Threaded

Insert with 4-40 Hex.

JS1000 Jack Screws Installed

to Connector

(4-40)Riveted Threaded

Insert with M3/4-40 Hex.

JS-M3131 Jack Screws

Installed

to Connector

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Plating Option

Blank

- Gold Flash

15 - 15

” Gold

- 30

” Gold

Contact Kycon for other options

Click here for Performance Specification

2011

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
