K22XHT-EP-NVJ30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> K22XHT-EP-NVJ30

K22XHT-EP-NVJ30: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size418KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K22XHT-EP-NVJ30 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,

K22XHT-EP-NVJ30 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.43 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	K22XHT
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET & JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	1.3716 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

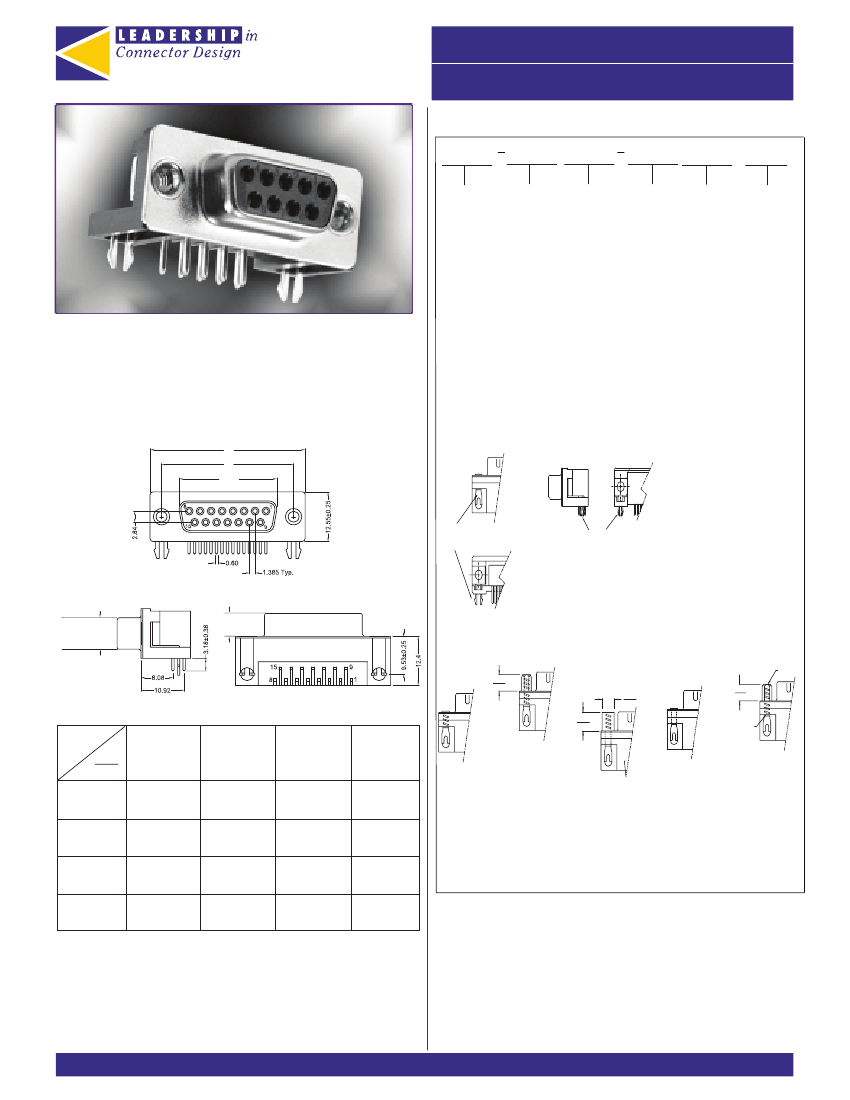

D-SUBMINIATURE CONNECTORS

KYCON

RoHS

K22XHT Series

Ordering Information

Series

Shell

Size

Contact

Type

K22XHT Series

High Temp. Right Angle PCB Mount .318" Footprint

K22XHT Series Dimensions

Pictured with Board Lock Option, Dimensions in mm

A, A1

Series

K22XHT - Reflow Compatible Version

Shell Size-Contact Option

E - 9 Contacts

A - 15 Contacts

B - 25 Contacts

C - 37 Contacts

Contact Type

P - Pin Contact (Plug)

S - Socket Contact (Receptacle)

PC Board Mounting Option

Front Panel Plating

PCB

Mounting Mounting Option

Options Options

N Option

NV Option

Grounding

Bracket

4 Prong

Grounding Bracket

8.36 Plug Interior,

7.90 Socket Exterior

6.1 Plug,

5.8 Socket

Front Panel Mounting Option

Standard

(4-40)Riveted

Threaded Insert

5.00

.197

J Option

R Option

T Option

JM Option

5.00

.197

(4-40) Round Jack Screws Riveted Non-Threaded

Insert 3.18/.125" Dia.

Riveted to Connector

Ø5.0

.197

6.00

.236

Shell

Size

(E)

(A)

(B)

(C)

4-40

±.010

±0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

±.010

±0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

±.005

±0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

±.015

±0.38

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

(4-40)Riveted Threaded

Insert with 4-40 Hex.

JS1000 Jack Screws Installed

to Connector

(4-40)Riveted Threaded

Insert with M3/4-40 Hex.

JS-M3131 Jack Screws

Installed

to Connector

Plating Option

Blank - Gold Flash

15 - 15

” Gold

30 - 30

” Gold

Contact Kycon for other options

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

2011

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
