K42X-E15SV/SV-C4NR datasheet, PDF

Datasheet> All Categories > The connector> The connector> K42X-E15SV/SV-C4NR

K42X-E15SV/SV-C4NR: DescriptionD Type Connector, 30 Contact(s), Male, Solder Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size392KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K42X-E15SV/SV-C4NR Overview

D Type Connector, 30 Contact(s), Male, Solder Terminal, #4-40, Receptacle,

K42X-E15SV/SV-C4NR Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	1.119 inch
subject depth	0.919 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	K42X
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	6
Number of rows loaded	3+3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

STACKED D-SUBMINIATURE

KYCON

RoHS

K42X Series

Documentation &

Ordering Information

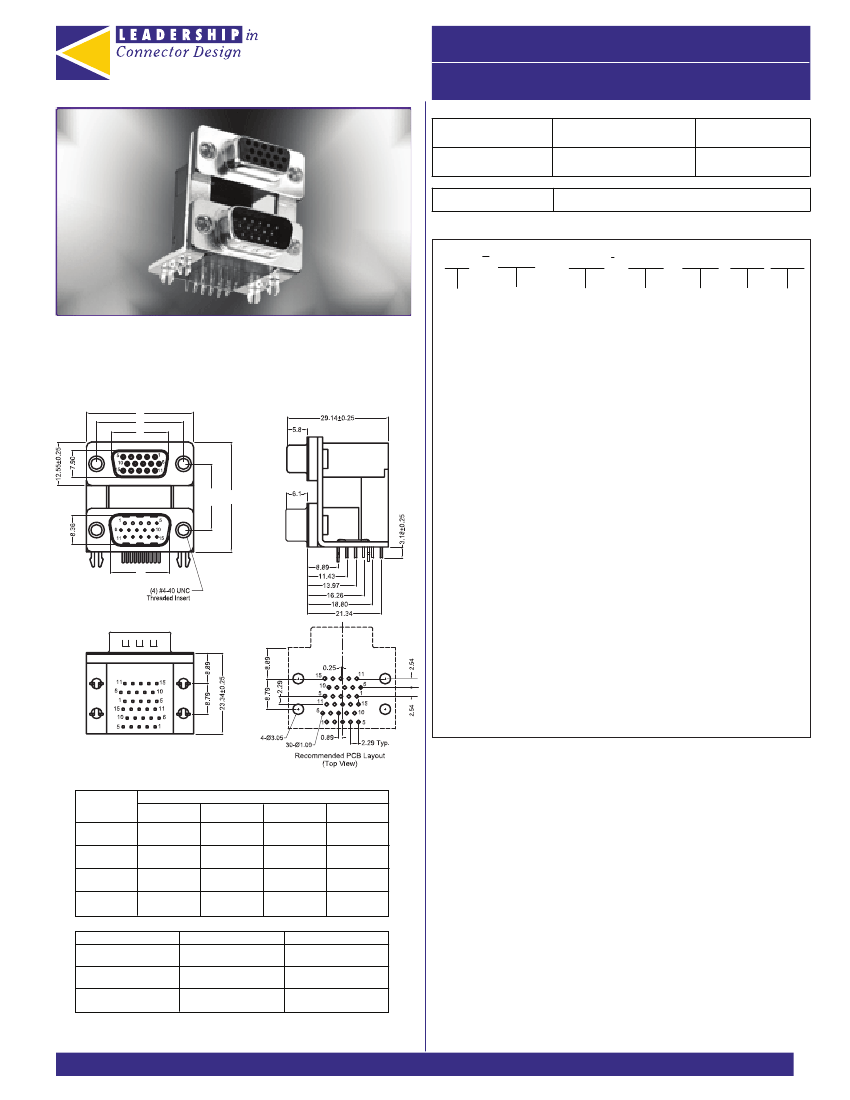

Drawing

Sample

Kycon Part #

Stock

CofC

RFQ

K42X-A26S/S-A4N

A26

Part Builder

K42X

A26

K42X Series

High Density Dual-Port D-Sub

Dimensions in mm

Center Board Jack Plating

Series Top Shell Size Bottom

Connector Shell Size Distance Lock Screws Option

Type

Connector

Series

K42X

- High Density Dual-Port D-Subminiature Connector

Top/Bottom Shell Size

A26S/S - 26 Contacts, Receptacle over Receptacle

A26S/S

B44S/S

B44S/S - 44 Contacts, Receptacle over Receptacle

E15S/P

- 15 Contacts, Receptacle over Plug

E15S/S

- 15 Contacts, Receptacle over Receptacle

E15S/S

E15SV/SV

E15SV/SV - 15 Contacts, VESA, Receptacle over Receptacle

Center to Center Distance

A - .750” (Standard)

Board Locks Option

4N - Board Locks (Standard)

Jack Screws Option

Blank - No Jack Screws

J - 4-40 HEX Removable Jack Screws

- 4-40 Round Riveted Jack Screws

Plating Option

Blank

- Gold Flash

15 - 15µ” Gold

- 30µ” Gold

Contact Kycon for High Temperature and Other Options

Number of

Contacts

(Shell Size)

9 (E)

15 (A)

25 (B)

37 (C)

Dimensions (Inch/

mm)

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.666

16.92

.994

25.25

1.534

38.96

2.181

55.42

.750

19.05

.900

22.86

.625

15.88

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

1.244

31.60

1.394

35.41

1.119

28.42

Center to Center Spacing

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Click here for Performance Specification

2011

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
