KF85X-ADPKJ30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KF85X-ADPKJ30

KF85X-ADPKJ30: DescriptionD Type Connector, 15 Contact(s), Male, 0.054 inch Pitch, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

KF85X-ADPKJ30 Overview

D Type Connector, 15 Contact(s), Male, 0.054 inch Pitch, Solder Terminal, #4-40, Plug,

KF85X-ADPKJ30 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.157 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	KF85X
Plug contact pitch	0.054 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal pitch	1.3716 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF85X-ED-9P-30

Part Number Builder

LR78160

D-SUBMINIATURE CONNECTORS:

KF85X

Series

KF85X Series

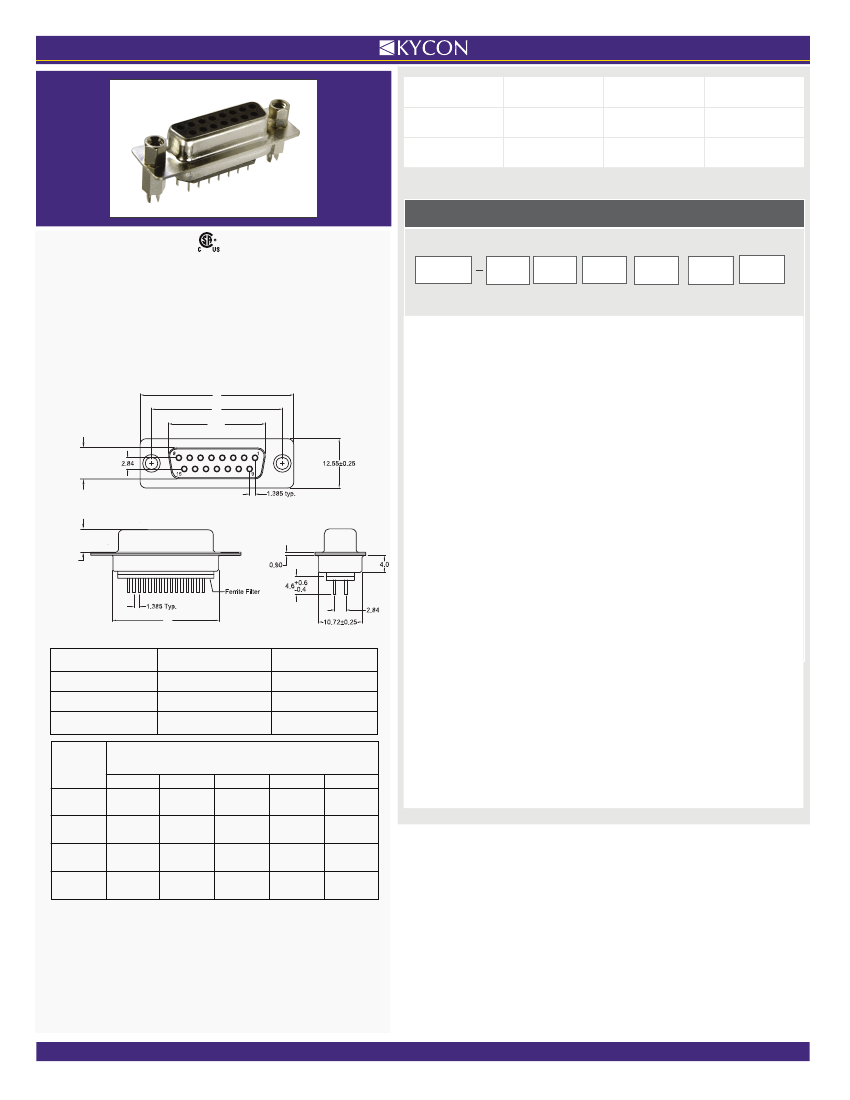

Dimensions

Dimensions in mm

KF85X

Series

Shell

Type

Contact

Option

Contact

Type

Mounting

Option

Plating

Option

Vertical PCB Mount Low Profile with Ferrite

Series

KF85X

D-Subminiature Connector Vertical PCB

Termination, High Profile with Ferrite

Contact Shell Size

- 9 Contacts

- 15 Contacts

- 25 Contacts

- 37 Contacts

A, A1

8.36 Plug Interior

7.90 Socket Exterior

Contact Construction, Pin Type

- Precision Formed

Contact Type

- Pin Contact (Plug)

- Socket Contact (Receptacle)

Mounting Option

Blank

- Through Hole

- With #4-40 Tin Plated 11.00mm Long Boardlocks

BRJ

- With #4-40 Tin Plated 11.00mm Long Boardlocks and

#4-40 Jackscrews

- With #4-40 Bushings

- With #4-40 Bushings and #4-40 Jackscrews

Plating Option

Blank

- Gold Flash

- 30µ” Gold

6.1 Plug

5.8 Socket

Ferrite Specifications

Test Frequency

30 Mhz

50 Mhz

100 Mhz

Number

of Contacts

(Shell Size)

Edge Hole

10-14 Ohms

12-18 Ohms

15-20 Ohms

Dimensions (Inch/mm)

Inner Hole

13-17 Ohms

15-19 Ohms

19-24 Ohms

9 (E)

15 (A)

25 (B)

37 (C)

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

.755

19.18

1.083

27.51

1.614

41.00

2.272

57.30

Contact Kycon for Other Options

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

2013
