KF85X-BD-25S-K15 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> KF85X-BD-25S-K15

Preview

KF85X-BD-25S-K15: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size442KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

KF85X-BD-25S-K15 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,

KF85X-BD-25S-K15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	GOLD (15)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	KF85X
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

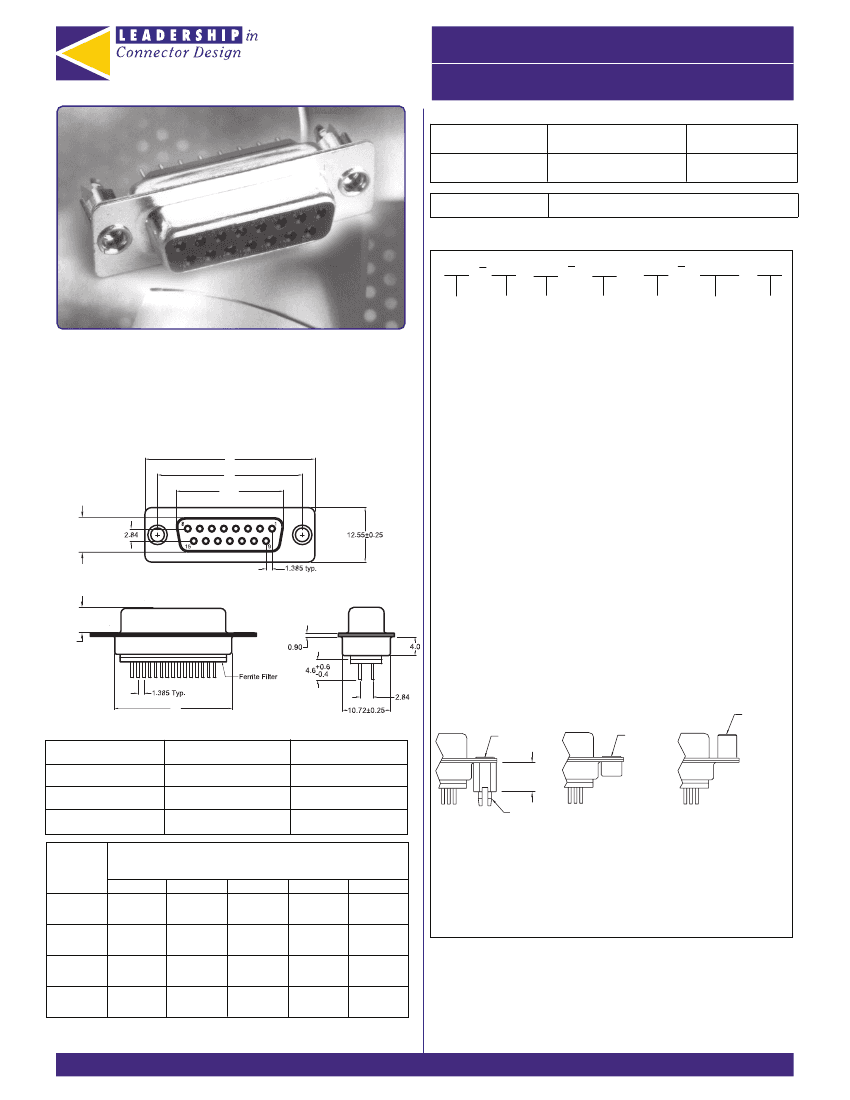

FERRITE D-SUBMINIATURE

KYCON

Drawing

Sample

KF85X Series

Documentation &

Ordering Information

Stock

Email

CofC

RFQ

Kycon Part #

KF85X-ED-9P

Part Number Builder

KF85X

Series

E

D

9

P

Shell Pin

Type Length

Contact Contact Mounting Plating

Option

Type

Option Option

KF85X Series

Vertical PCB Mount Low Profile with Ferrite

KF85X Series Dimensions

Dimensions in mm

C

B

A, A1

Series

KF85X

- D-Subminiature Connector Vertical PCB

Termination, High Profile with Ferrite

Contact Shell Size Option

E

- 9 Contacts

A

- 15 Contacts

B

- 25 Contacts

C

- 37 Contacts

Contact Constraction

D - Precision Formed

D

Contact Type

P - Pin Contact (Plug)

S - Socket Contact (Receptacle)

Mounting Option

Blank - Through Hole

K

- With (4-40) Bushings

KJ

- With (4-40) Bushings and (4-40) Hex Jack Screws

BR - With (4-40) Tin Plated 11.00mm Long Boardlocks

BRJ

- With (4-40) Tin Plated 11.00mm Long Boardlocks

and (4-40) Hex Jack Screws

R

- With Round Riveted Jack Screws

8.36 Plug Interior

7.90 Socket Exterior

6.1 Plug

5.8 Socket

D

-BR Option

#4-40 UNC

-K Option

#4-40 UNC

Bushing

-R Option

Ferrite Specifications

Test Frequency

30 Mhz

50 Mhz

100 Mhz

Number

of Contacts

(Shell Size)

#4-40 UNC

Internal

Thread

Edge Hole

10-14 Ohms

12-18 Ohms

15-20 Ohms

Dimensions (Inch/

m

)

Inner Hole

13-17 Ohms

15-19 Ohms

19-24 Ohms

Board Lock

7.00 [.276]

9 (E)

15 (A)

25 (B)

37 (C)

A

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

A1

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

B

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

C

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

D

.755

19.18

1.083

27.51

1.614

41.00

2.272

57.30

Plating Option

Blank

- Gold Flash

15 - 15

µ

” Gold

30 - 30

µ

” Gold

Contact Kycon for other options

A = Exterior of Female Shell (S) A1 = Interior of Male Shell (P)

Click here for Performance Specification

2011

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

KF85X-BD-25S-K15 Related Products

	KF85X-BD-25S-K15	KF85X-ED-9S-BR15	KF85X-ED-9S-BRJ15	KF85X-ED-9S-K15	KF85X-ED-9S-R15	KF85X-BD-25S-BRJ15
Description	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)
Contact completed and terminated	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	3/B	1/E	1/E	1/E	1/E	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	9	9	9	9	25
Manufacturer's serial number	KF85X	KF85X	KF85X	KF85X	KF85X	-
Maker	-	Kycon	Kycon	Kycon	Kycon	-
