KFPC100X-TR4-016 datasheet, PDF

Datasheet> All Categories > The connector> The connector> KFPC100X-TR4-016

KFPC100X-TR4-016: DescriptionCard Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

KFPC100X-TR4-016 Overview

Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT

KFPC100X-TR4-016 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

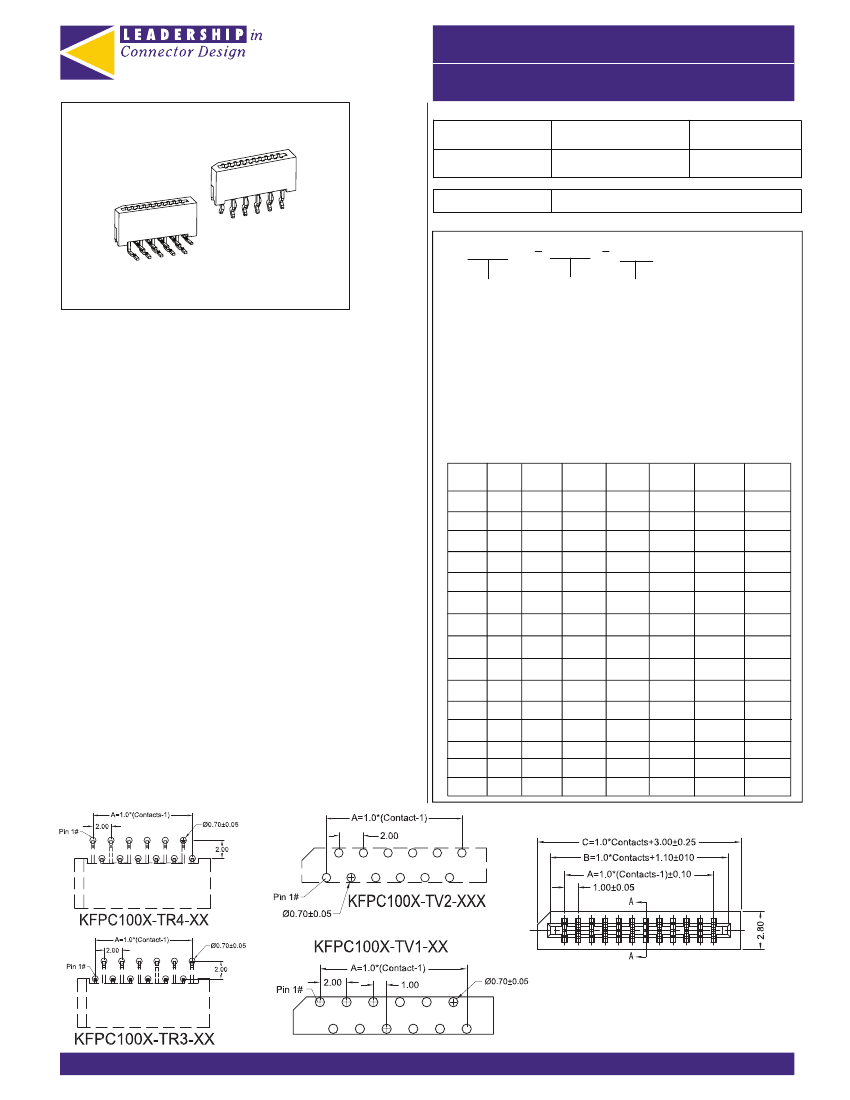

1.0 FPC/FFC VERTICAL / RIGHT

ANGLE LAYOUT

KYCON

RoHS

KFPC100X-TV/TR Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

Part Number Builder

KFPC100X

TR3

Kycon Part #

KFPC100X-TR3-18

018

Contacts

Series

Style

KFPC100X Series

Features

1.0 FPC/FFC Vertical / Right angle layout

Series

KFPC100X

1.0 FPC/FFC

Style

TR3

- Right angle Standard layout

TR3

TR4

- Right angle alternate layout

TV1

- Vertical Standard layout

TV2

- Vertical alternate layout

•

Flexible Flat Connector (FFC) and

Flexible Printed Connector (FPC) offered.

•

Pin counts from 3 to 30 Available

•

Offered as Non Zero inserting Force (ZIF)

Contacts

No of

Dim

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

14.0

15.0

16.0

003

004

005

Dim

4.2

5.2

6.2

7.2

8.2

9.2

10.2

11.2

12.2

13.2

14.2

15.2

16.2

17.2

18.2

Dim

10.4

11.4

12.4

13.4

14.4

15.4

16.4

17.4

18.4

19.4

20.4

21.4

22.4

23.4

24.4

No of

018

Dim

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

26.0

27.0

28.0

29.0

Dim

19.2

20.2

21.2

22.2

23.2

24.2

25.2

26.2

27.2

28.2

29.2

30.2

31.2

Dim

25.4

26.4

27.4

28.4

29.4

30.4

31.4

32.4

33.4

34.4

35.4

36.4

37.4

Performance Specifications

Material and Finish

Housing

: High Temp plastic (UL94V-0)

Contact

: Copper Alloy

Plated

: Tin Plated

Current Rating :

1.0A AC/DC

Voltage Rating :

100V AC/DC

Resistance :

30m ohm.max.

Insulation Resistance :100M

ohm.Min.

Withstanding Voltage :500V

AC for one minute

Operating Temperature Range :

-25ºC to +105ºC

019

020

021

006

007

008

022

023

Specifications

009

010

011

012

013

014

024

025

026

027

028

029

030

015

016

017

PCB Layout Reference

(Top view )

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

2007

KFPC100X-TR4-016 Related Products

	KFPC100X-TR4-016	KFPC100X-TR3-022	KFPC100X-TR3-005	KFPC100X-TR3-029	KFPC100X-TR4-009
Description	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Card Edge Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	22	5	29	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	-
