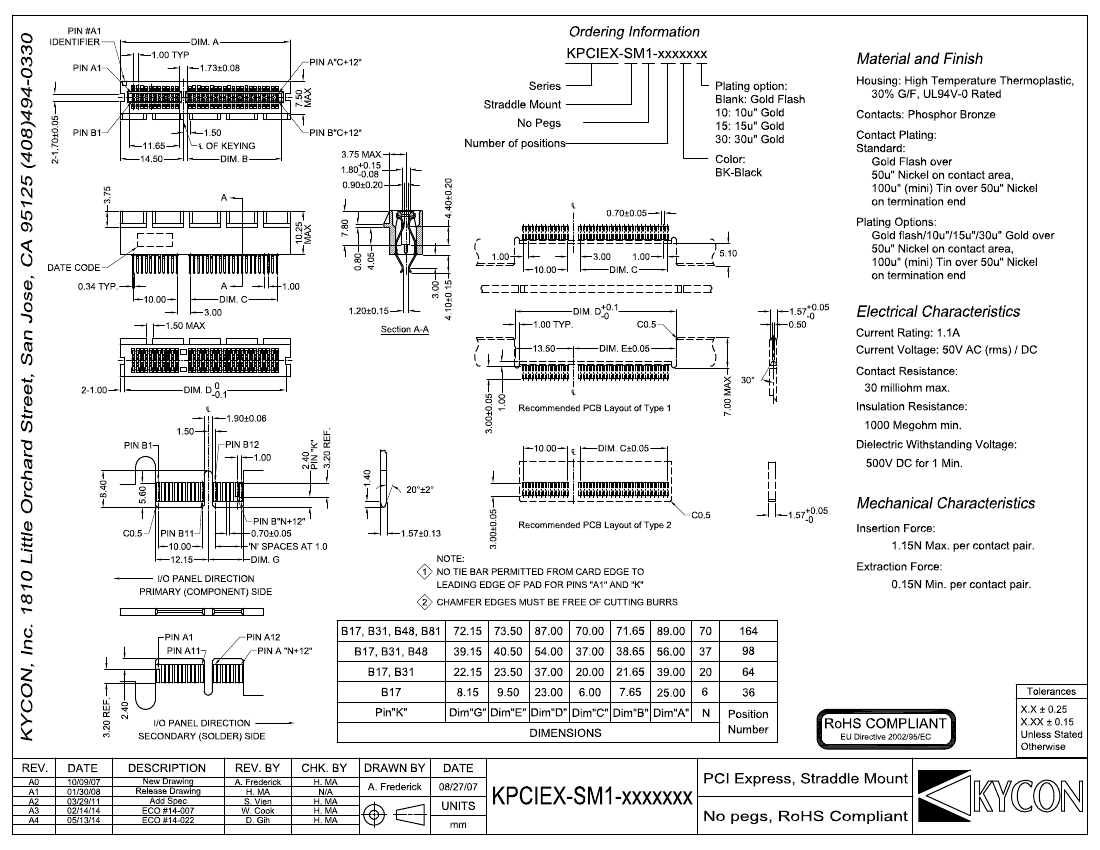

KPCIEX-SM1-64BK10 datasheet, PDF

KPCIEX-SM1-64BK10: DescriptionCard Edge Connector, 64 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size351KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KPCIEX-SM1-64BK10 Overview

Card Edge Connector, 64 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STRADDLE MOUNT
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	KPCIEX
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	64

	KPCIEX-SM1-64BK10	KPCIEX-SM1-98BK10	KPCIEX-SM1-98BK15
Description	Card Edge Connector, 64 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Other features	STRADDLE MOUNT	STRADDLE MOUNT	STRADDLE MOUNT
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Manufacturer's serial number	KPCIEX	KPCIEX	KPCIEX
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	64	98	98
ECCN code	EAR99	-	EAR99
Maker	-	Kycon	Kycon
