SSHR-138-D-04-G datasheet, PDF

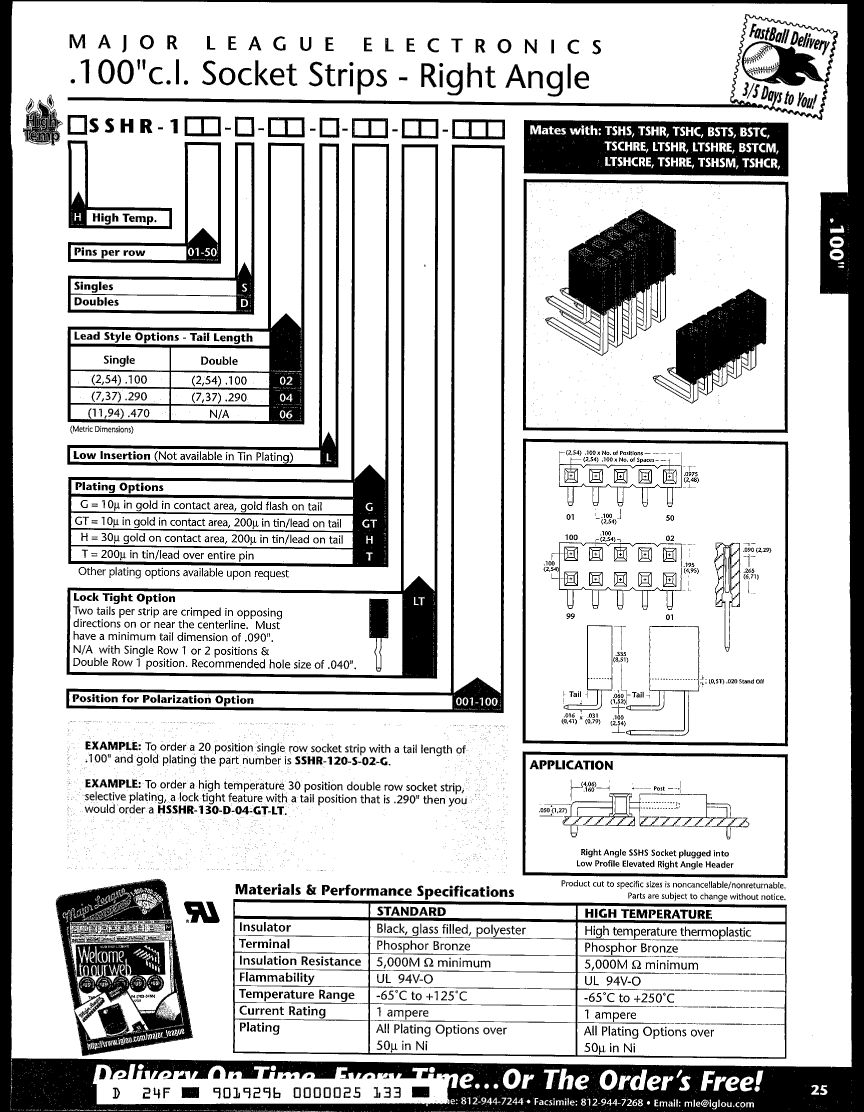

SSHR-138-D-04-G: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet Parametric View All

SSHR-138-D-04-G Overview

Board Connector, 76 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH PCB STAND OFF
body width	0.195 inch
subject depth	0.495 inch
body length	3.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	SSHR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.29 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	76
