RV20N
Series
TOCOS
PA N E L C O N T R O L S
®
20mm Diameter, Single-Turn, Carbon Industrial Panel Controls

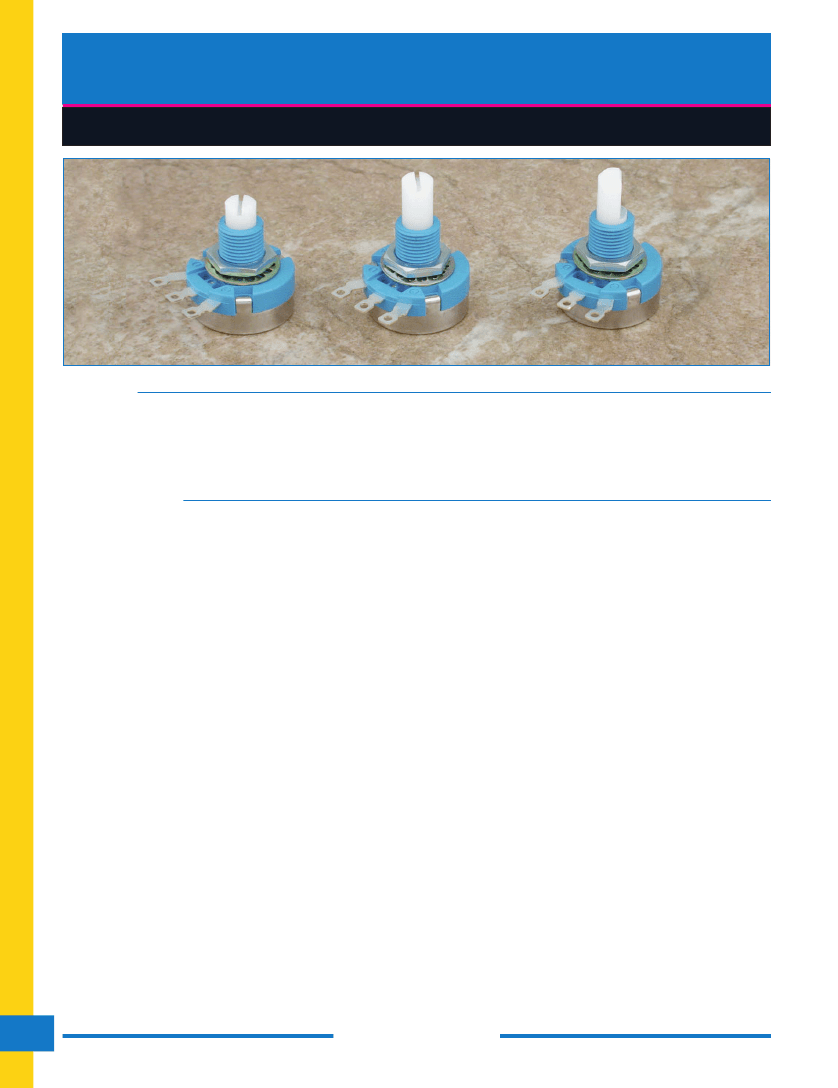

RV20N-15S
RV20N-20S
RV20N-20F
Features
20mm diameter, single-turn industrial panel controls
Carbon film element
Single unit, single shaft
Linear or audio tapers
Plastic M9 P0.75 bushing
Plastic 6mm diameter shafts in slot or flat end styles
Standard 15mm or 20mm shaft length
Panel mounting styles only
Right angle lug terminals
500Ω to 2MΩ nominal resistance range
Meets UL 94HB flammability requirements for plastic materials
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . B = 500Ω to 2MΩ
A,C = 1kΩ to 2MΩ
Resistance Tolerance
. . . . . . . . . . . . . . . . .
20% standard
End Resistance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Ω max.
Resistance Taper
. . . . B = linear; A = CW audio (logarithm);
C = CCW audio (logarithm)
Peak Noise (C.R.V.)
. . . . . . . . . . . . . . . . . . . . . . . . 2% max.
Power Rating
. . . . . . . . . . . B = 0.25 watt; A,C = 0.125 watt
at 40 C, 0 watt at 85 C
Maximum Input Voltage
. . . . . B = 250VDC; A,C = 200VDC
or power rating, whichever is smaller
Insulation Resistance
. . . . . . . 100MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . . 500VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 245
10
Load Life
. . . . . . . . . . . .
Environmental
Temperature Range
. . . . . . . . . . . . . . . . . .
Temperature Characteristics
. . . . . . . . . . .
10 C to
85 C
80 C, 5 hours
without load
R
)
10kΩ
©
∆T/R
)
6%
10kΩ
!
R
)
1MΩ
©
∆T/R
)
10%
R
1
1MΩ
©
∆T/R
)
15%
40 C, 1,000 hours with rated load
∆T/R
)
15%
Moisture and Load Life
. . . . . . . . . . . . 40 C, 90-95%RH,
90 minutes on, 30 minutes off,
500 hours with rated load
∆T/R
)
20%
Vibration
. . . . . . . . . . . . . . . . . . .10-55Hz, 1.5mm amplitude,
3 directions, 2 hours each
∆T/R
)
2.5%
Soldering Heat Resistance
. . . . . . . . . . . 350 C, 3 seconds
∆T/R
)
2%
Rotational Life
. . . . . . . . . . . . . . .15,000 cycles without load
∆T/R
)
10%
R = Total Resistance Value;
∆T/R
= Total Resistance Change
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 290
10
Shaft Torque
. . . . . . . . 30 to 200 gf
•
cm (0.42 to 2.77 oz
•
in)
Stop Strength
. . . . . . . . . . . . . 9 kgf
•
cm (124.76 oz
•
in) min.
Mounting Nut Torque
. . . . . . . 5 kgf
•
cm (69.31 oz
•
in) max.
Solderability
. . . . . . . . . . . . . . . . . . . . . . . 235 C, 5 seconds
Marking
. . . . . . . . . . . . . . . . . . Model type, taper, resistance,
shaft type, terminal identification, date code
28
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
RV20N Series
RV20N
Panel Mount, Single Unit, Single White Plastic Shaft
Right Angle Ear-Lug Terminals

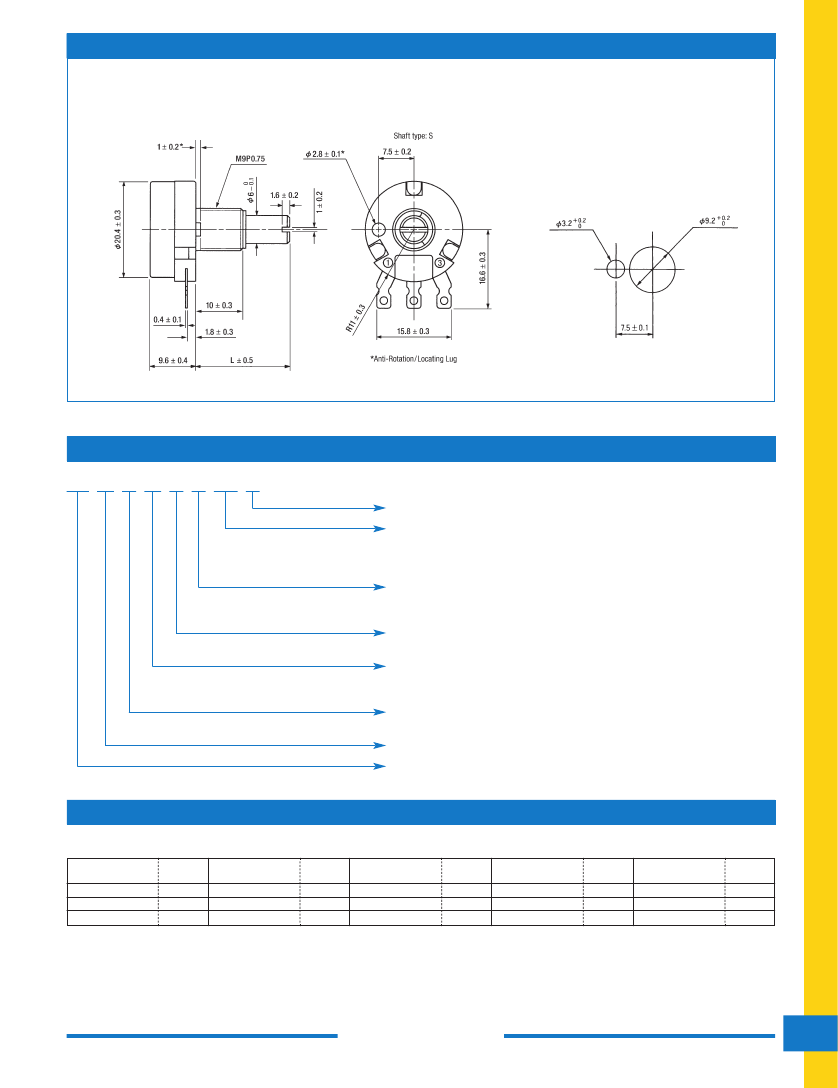

Dimensions
Unit: mm
Recommended
Panel Mounting Holes
Part Numbering System
RV 20 N 20 S B 103 M
NOTE: FMS = From Mounting Surface
Resistance Tolerance: M
=
20% (standard).
Resistance Code:
Expressed in ohms. A three digit code where the first
two digits are significant figures, and the third digit indicates the number
of zeros that follow these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω;
103 = 10,000Ω; 105 = 1,000,000Ω ).
See table for standard resistance values.
Resistance Taper: B
= Linear.
A
= CW Audio (logarithm).
C
= CCW Audio (logarithm).
Shaft End Style: S
= Slotted (standard for 15mm or 20mm shaft length).
F
= Flatted (special order for 20mm shaft length only ).
Standard Shaft Length: 15
= 15 mm FMS.
20
= 20mm FMS.
Up to 30mm shaft length available (special order).
Style: N
= Panel Mount, Single Unit, Single White Plastic Shaft, Right Angle
Ear-Lug Terminals.
Size: 20
= 20mm Diameter.
TOCOS Series Name: RV
= Carbon Film Element.
Standard Resistance Values and Part Numbering Codes
Standard Nominal Total Resistance Values and Part Numbering Codes
Resistance (
Ω
)
500
Code
501
Resistance (
Ω
)
1,000
2,000
5,000
Code
102
202
502
Resistance (
Ω
)
10,000
20,000
50,000
Code
103
203
503
Resistance (
Ω
)
100,000
200,000
500,000
Code
104
204
504
Resistance (
Ω
)
1,000,000
2,000,000
Code
105
205
Refer to Shaft End Styles Specifications and Hardware Specifications for details and availability.
For additional information, refer to Guidelines and Precautions for Using Panel Controls.
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
29
